There is no universal lotion box size. Pump bottles, flip-cap bottles, airless containers and lotion tubes can have different exterior dimensions even at the same capacity. Measure the complete filled container in its approved packing state at its maximum width, depth and closed height, including the shoulders, pump, spout, cap, overcap or tube crimp, before developing the carton.
The practical sizing relationship is:
Finished Lotion Container → Maximum Product Envelope → Clearance / Support → Internal Box Dimensions → Material + Structure → External Box Dimensions
If you are already preparing a commercial packaging project, BoxBaba’s Custom Lotion Boxes page covers available customization and ordering options. For the broader measurement method used across beauty products, refer to the Cosmetic Box Size Guide.
Why Lotion Capacity Does Not Determine Box Size
Capacity tells you how much lotion a container holds. It does not tell you how much physical space that container occupies.

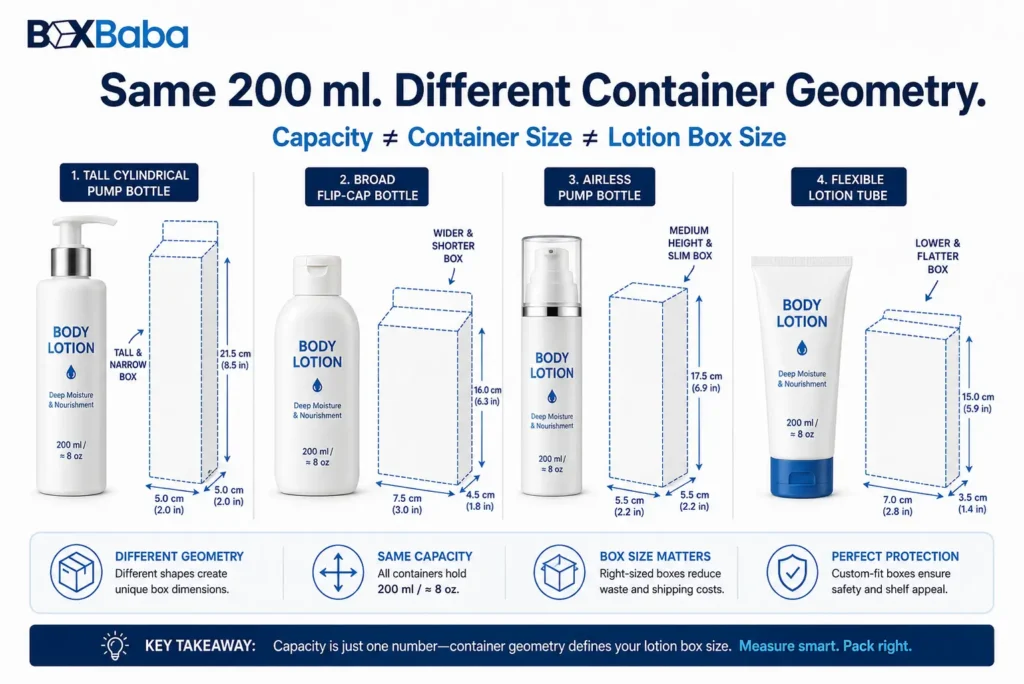

Two 8 oz or 200 ml lotion products can use completely different primary packages. One may have a tall cylindrical pump bottle, another a broad flip-cap bottle, and another a flexible tube. Their shoulder profiles, bases, closures and overall heights may all differ.
For carton development:
Lotion Capacity ≠ Finished Container Dimensions ≠ Lotion Box Dimensions
Capacity-based charts can therefore be useful as early references, but they should not replace measurements taken from the actual container being packed.
Primary Lotion Container vs Secondary Lotion Box
A useful sizing specification begins by separating the product container from its outer carton.
The primary lotion package is the filled bottle, tube or airless container that directly contains the lotion, together with its final closure and permanent exterior components.
The secondary lotion box is the carton developed around that complete primary package and any approved internal support.
A request such as I need a box for a 200 ml lotion does not yet describe the physical object the carton must fit. The packaging supplier still needs the measurements of the actual 200 ml container.
Lotion Container Measurement-to-Box Size Matrix
| Measurement | What to Measure | Why It Matters |
| Complete closed / locked height | Base to the highest point of the approved pump, cap or overcap | Establishes starting carton height |
| Maximum body width | Widest central bottle area | Contributes to the product envelope |
| Maximum depth | Furthest front-to-back profile | Required for non-round containers |
| Maximum diameter | Widest point of a cylindrical bottle | Establishes round-container footprint |
| Maximum shoulder width | Widest shoulder profile | May exceed the central body |
| Base footprint | Standing W × D or diameter | Provides orientation and support input |
| Pump actuator width | Widest actuator profile | May control carton width |
| Spout projection | Furthest pump projection beyond the bottle/collar | May control carton depth |
| Pump orientation | Approved direction of the spout during packing | Can change the maximum envelope |
| Collar profile | Pump or cap mounting area | Relevant to clearance and support |
| Overcap dimensions | Installed protective cap where used | May become the widest or tallest component |
| Flip / disc-top cap | Maximum closed closure profile | May exceed the bottle body |
| Maximum filled tube width | Widest part of the filled tube | Better reflects packed geometry |
| Maximum filled tube depth | Thickest part of the filled tube | Empty tubes can understate depth |
| Tube crimp width | Widest sealed-end profile | May control tube-carton width |
| Filled weight | Complete sale-ready container | Provides structural/support context |
| Center of gravity | Bottom-heavy, balanced or top-heavy | May influence support decisions |
| Orientation | Upright, horizontal or another approved position | Maps product axes to carton axes |
| Product photograph / technical drawing | Final container and closure geometry | Helps communicate irregular features |
These are container measurements and packaging inputs, not final production-box dimensions.
Measuring the Complete Lotion Container
The correct measurement entity is the filled, assembled and sale-ready lotion container.
For a rectangular or oval bottle, record:
Maximum Width × Maximum Depth × Complete Closed Height
For a cylindrical bottle:
Maximum Diameter × Complete Closed Height
For a flexible tube:
Maximum Filled Width × Maximum Filled Depth × Complete Closed Length
The key is to identify the furthest physical point in each direction rather than measuring only the central bottle body.
Complete Closed Height
Measure from the lowest point of the base to the highest point of the approved closure.
For a pump bottle, that may include the collar, actuator, spout and overcap.
If the bottle body is 5.4 inches tall but the closed pump increases the complete product height to 6.3 inches, use 6.3 inches as the relevant starting height.
Shoulder Width and Base Footprint
Lotion bottles often taper between the body, shoulders and closure.
Suppose a bottle has:
Body Width: 2.05 in
Maximum Shoulder Width: 2.20 in
If the shoulders extend farther, 2.20 inches becomes the maximum starting width.
The base may still be narrower. That measurement should also be recorded because the base footprint provides useful information about how the filled bottle stands and how any internal support may interact with it.

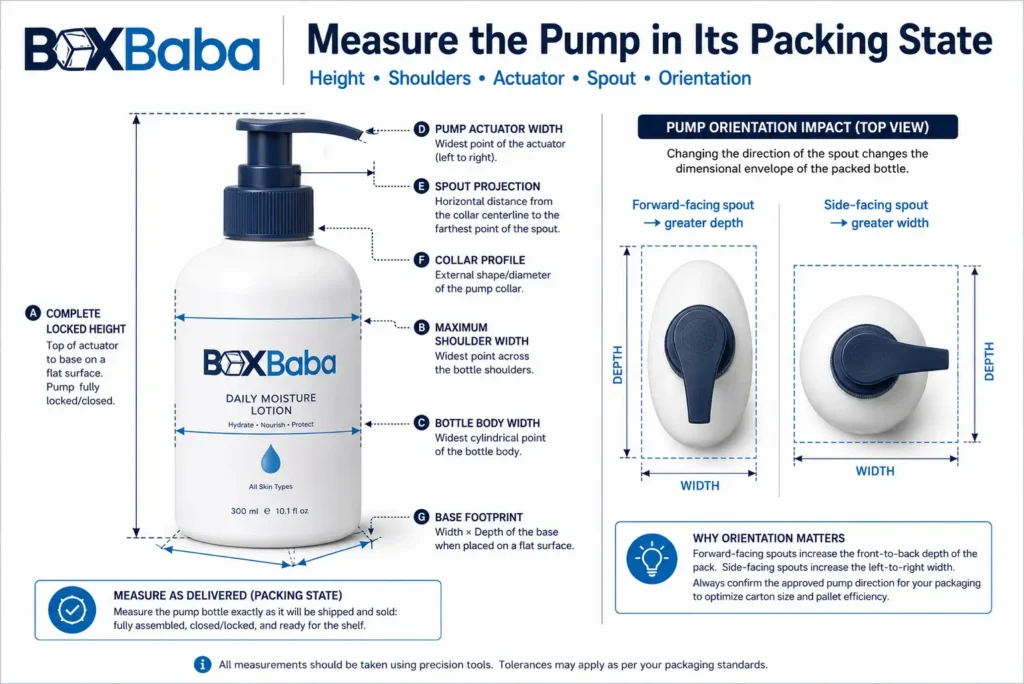

Pump Bottles Require Closure-Specific Measurement
Pump bottles deserve particular attention because the closure can affect width, depth and height at the same time.
A useful pump-bottle specification records the actuator, spout, collar, overcap and the exact state in which the pump will enter the carton.
Packing State vs Operating State
A lotion pump can exist in more than one position.
Its operating state describes how the pump functions when the customer uses the product.
Its packing state describes the position in which the pump sits inside the retail carton.
If the pump can move between locked and extended positions, record both where useful for documentation, but develop the retail-carton envelope around the approved packing position unless the product will actually be packed extended.
If an overcap is used, install it before taking the final packing measurements.
Pump Spout Projection Can Control Carton Depth
A directional pump may extend farther than the bottle body.
For example:
Bottle Diameter: 1.80 in
Maximum Finished Depth With Pump Spout: 2.05 in
In that configuration, the starting depth is 2.05 inches.
The central bottle cylinder is no longer the controlling dimension.
Pump Orientation Matters
The same directional pump can create a different width/depth profile when rotated.
A forward-facing spout may increase carton depth, while the same spout turned sideways may affect width instead.
Confirm the approved orientation before the dieline is finalized, particularly when a support insert, window or another product will share the package.
If the carton includes a window, confirm bottle orientation first because the pump direction, label position and visible product area can affect final window alignment.
A Practical Lotion Measurement Workflow
Begin with the completed product rather than the nominal bottle capacity.
Identify whether the container is a pump bottle, flip-cap bottle, disc-top bottle, airless container or flexible tube. Install the final closure and confirm its packing state.
Next, establish the intended orientation. An upright bottle maps its height differently to the carton than a horizontally packed product.
Measure the complete height and inspect the entire exterior for the maximum width and depth. Compare the body, shoulders, cap, actuator, spout and overcap rather than assuming the bottle wall creates every controlling dimension.
Record the base footprint separately. For heavier, taller or glass containers, also record the filled weight and approximate weight distribution where useful.
If a support component is planned, determine its contact areas and the direction in which the product will be inserted and removed before final internal dimensions are approved.
Keep all measurements in one unit system, such as inches or millimeters.
Lotion Box Sizing by Container Format
| Lotion Container Format | Dimensions to Record | Extra Feature to Check | Main Sizing Risk |
| Standard pump bottle | Maximum W×D/diameter + locked height | Actuator / spout | Pump may control envelope |
| Tall pump bottle | Maximum W×D + locked height | Base footprint / weight distribution | Tall narrow format may need support review |
| Flip-cap bottle | Maximum W×D + closed height | Cap hinge / overhang | Closure may exceed bottle body |
| Disc-top bottle | Maximum W×D + closed height | Closed-cap profile | Cap may control footprint |
| Airless bottle | Maximum W×D/diameter + closed height | Actuator / collar / overcap | Closure assembly may be underestimated |
| Lotion tube | Maximum filled W×D + complete closed length | Cap + crimp | Empty-tube geometry can mislead |
| Glass lotion bottle | Maximum W×D + closed height + filled weight | Base footprint | Weight may change support decisions |
| Mini / travel lotion | Actual complete dimensions | Closure proportion | Do not scale from full-size packaging |
| Lotion set | Every item + completed arrangement | Spacing / internal support | One bottle does not define the set |
Measuring Flip-Cap and Disc-Top Lotion Bottles
Flip-cap and disc-top bottles usually have simpler closure geometry than pump bottles, but the closure can still become the widest part of the product.
Measure the complete closed height, maximum bottle width/depth or diameter, shoulder profile, cap dimensions and base footprint.
Check whether the cap hinge or edge projects beyond the bottle wall.
If it does, use the complete exterior profile rather than the central bottle width when determining the starting carton envelope.
Measuring Airless Lotion Bottles
An airless lotion container should be measured in the exact configuration in which it will be packed.
Include the bottle body, actuator, collar, overcap where used, base and permanent exterior decoration.
For box sizing, the relevant entity is the finished external geometry. The internal dispensing mechanism does not need to be analyzed unless it changes the exterior container or packing configuration.
Do not infer carton dimensions from airless-bottle capacity alone.

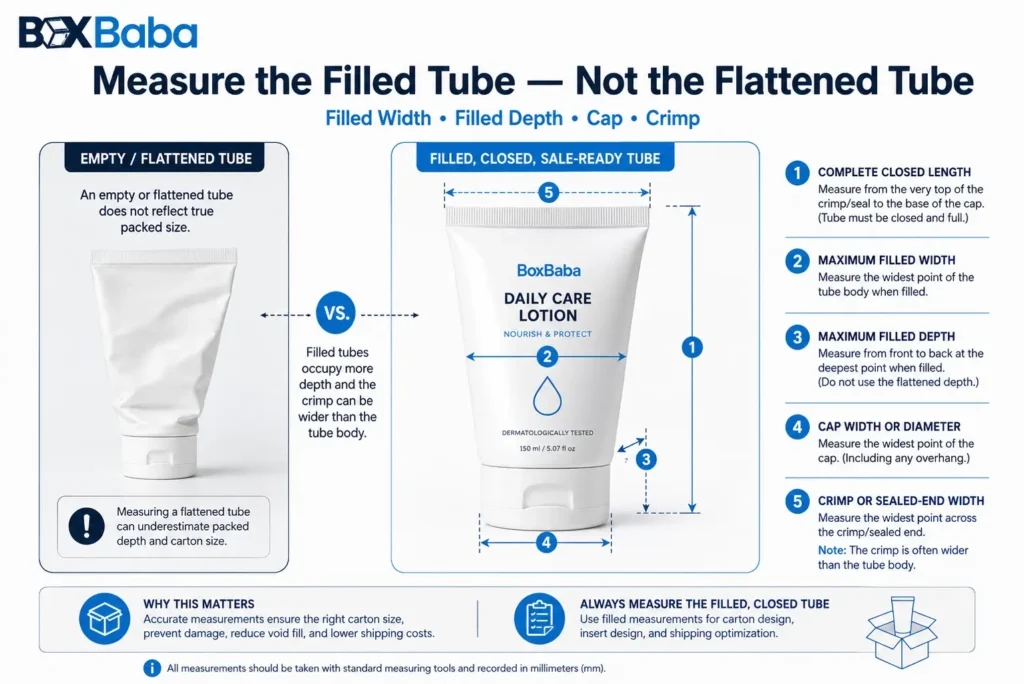

Measuring Filled Lotion Tubes
A flexible tube needs a different measurement method from a rigid bottle.
Measure it in its filled and closed condition whenever possible.
Record the complete closed length, maximum filled width, maximum filled depth, cap dimensions and sealed/crimped-end width.
An empty flattened tube can understate its actual packed depth.
The sealed end can also be wider than the main body.
For example:
Tube Body Width: 1.70 in
Crimp Width: 1.92 in
If the crimp is the widest point, 1.92 inches becomes the relevant starting width.
A wide flip cap can similarly determine the carton cross-section even when the flexible tube body is narrower.
Worked Example: Measuring a Pump Lotion Bottle
Consider a hypothetical lotion pump bottle with:
Bottle Body Width: 2.05 in
Maximum Shoulder Width: 2.20 in
Bottle Depth: 1.85 in
Maximum Finished Depth With Pump Spout: 2.12 in
Complete Locked Height: 6.40 in
Three different container components control three different dimensions.
The shoulders control width:
2.20 in
The directional pump spout controls depth:
2.12 in
The closed pump assembly controls height:
6.40 in
Therefore:
Maximum Finished Lotion Container Envelope: 2.20 W × 2.12 D × 6.40 H
These are finished-container dimensions, not final external box dimensions.
Clearance, support, board thickness and carton structure still need to be established before the final box specification is approved.
This hypothetical example should not be treated as a standard size for every lotion pump bottle.
What Size Box Fits an 8 oz Lotion Bottle?
There is no universal box size for an 8 oz lotion bottle.
Different 8 oz containers can have different body dimensions, shoulders, pumps, spout projections, caps and overall heights. Measure the complete filled bottle in its approved packing state before determining the internal carton dimensions.
Published reference ranges may help during early planning, but they should not replace measurements from the actual bottle.
The same principle applies to 100 ml, 200 ml and 250 ml containers.

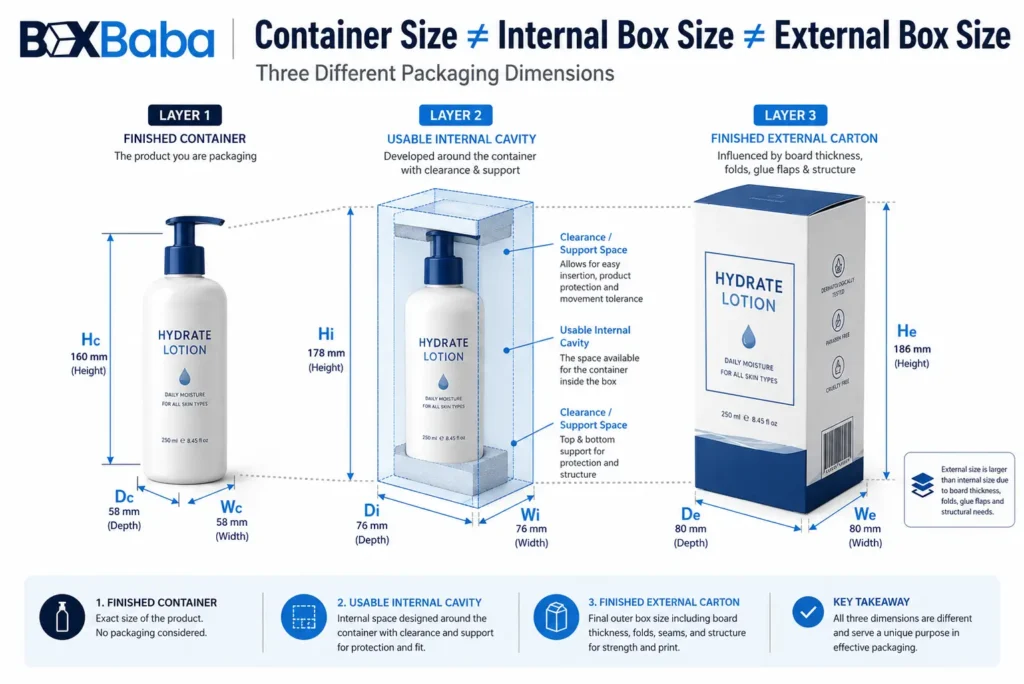

Finished Container vs Internal and External Box Dimensions
The finished lotion product, usable internal carton space and external package are separate measurement layers.
Finished container dimensions describe the complete bottle or tube.
Internal box dimensions describe usable space inside the assembled carton.
External box dimensions describe the finished outside package.
The carton may need additional internal space for clearance, board folds, support components and practical insertion or removal.
A bottle measuring 2.20 W × 2.12 D × 6.40 H should therefore not automatically be assigned an external box with those same dimensions.
How Clearance and Internal Support Affect Box Size
There is no single clearance value that applies to every lotion package.
Required internal space depends on the actual container, closure, orientation, board thickness, support configuration and intended packing method.
A pump spout may require additional side clearance. A wide shoulder can interact differently with the carton than a narrow bottle body. An insert or holder consumes internal space of its own.
Not every lotion box requires an insert.
A straightforward bottle or tube may fit directly inside a suitably developed folding carton, while tall bottles, glass containers, presentation packs or multi-product sets may require more deliberate positioning.
Where a defined support system is needed, BoxBaba’s Printed Boxes with Inserts provides a related commercial route for projects using fitted internal components.
Support should be planned around appropriate container-contact areas rather than assuming a projecting pump actuator or spout should carry the product’s weight.
The final arrangement should also allow practical product removal. A package can be dimensionally tight yet still be difficult to use if the bottle cannot be lifted or pulled out as intended.
Tall Bottles, Filled Weight and Weight Distribution
Tall pump bottles should be evaluated using more than height alone.
The base footprint, filled weight, closure weight and center of gravity can all affect the support decision.
Two lotion bottles with similar external dimensions may behave differently if one has a narrow base and heavy pump while another has a broader footprint and lower center of gravity.
This does not mean every tall lotion bottle needs a rigid box or insert.
The appropriate structure and support should be determined from the completed specification.

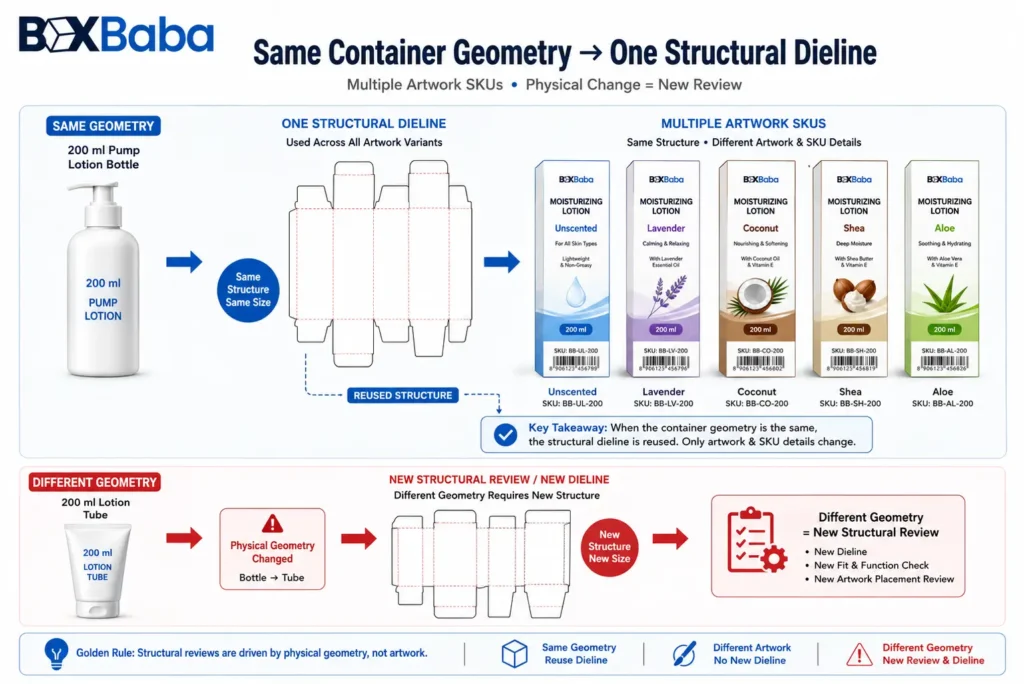

Can Multiple Lotion SKUs Use the Same Dieline?
Different lotion formulas, scents or artwork variants may use the same structural carton when the physical packaging remains unchanged.
For example, a brand may use the same pump bottle for several scented body lotions.
If the bottle dimensions, shoulders, base, pump, spout direction, orientation, support and carton structure remain unchanged, the same structural dieline may support multiple artwork versions.
If another SKU changes from a 200 ml pump bottle to a 200 ml tube, the physical packaging geometry has changed and the carton should be reviewed again.
The relevant question is therefore not:
Is the formula different?
but:
Is the physical product configuration different?
Lotion Sets and Multi-Product Packaging
A lotion set should be sized from its completed arrangement rather than from one bottle multiplied by the number of products.
A set might combine lotion with body wash, cream, serum, a travel tube or several scent variants.
Measure every included container independently and then plan the orientation, spacing, support and removal access for the complete set.
Two bottles that are each 2 inches wide do not automatically require exactly 4 inches of internal width. Divider thickness, spacing and usable access can increase the footprint.
For mixed beauty assortments containing several types of skincare containers, Custom Skincare Packaging is a more relevant commercial path than treating the project as a single-product lotion carton.
Retail Lotion Carton vs Ecommerce Outer Package
The individual lotion box and the ecommerce shipping carton should be sized separately.
For the retail pack:
Finished Lotion Container → Individual Lotion Carton
For ecommerce:
Completed Boxed Order → Outer Shipping Package
The bare lotion bottle should not determine the outer shipping dimensions.
Likewise, the individual retail carton should not automatically be enlarged simply because it will later be placed inside a mailer or shipping carton.
If an ecommerce order contains several boxed skincare products, the completed order configuration becomes the dimensional input for the outer package.
Hanging Lotion Tube Cartons
A lotion tube intended for a peg or hanging display can introduce another dimensional layer.
A hang tab or header may increase the total external package height without changing the usable product cavity.
For this type of structure, distinguish between:
Product Cavity Height
and:
Total Hanging Package Height
Confirm the hanging direction, tab/header area and final tube orientation before the dieline is approved.
Common Lotion Box Sizing Mistakes
| Sizing Mistake | Better Approach |
| Choosing a box from capacity alone | Measure the actual finished container |
| Measuring only the bottle body | Include shoulders and final closure |
| Measuring a pump in the wrong state | Use the approved packing position |
| Ignoring spout projection | Measure the complete exterior depth |
| Ignoring pump direction | Standardize orientation before approval |
| Measuring only central bottle width | Check the shoulder profile |
| Ignoring the base footprint | Record it for orientation/support planning |
| Measuring an airless bottle without its final closure | Include actuator, collar and overcap |
| Measuring a flattened empty tube | Use filled width and depth where possible |
| Ignoring tube-crimp width | Compare the sealed end with the body |
| Ignoring an oversized cap | Use the maximum finished profile |
| Applying one universal clearance value | Confirm fit against the selected structure |
| Finalizing the box before internal support | Include support dimensions first |
| Treating the pump as a support point | Plan appropriate container-contact areas |
| Ignoring filled weight | Include it when relevant to support decisions |
| Assuming every bottle needs an insert | Evaluate the actual completed configuration |
| Assuming every formula needs a new dieline | Compare the physical packaging |
| Multiplying one bottle dimension for a set | Develop the complete set arrangement |
| Using retail-carton dimensions for shipping | Measure the completed boxed order separately |
Lotion Measurement and Quote Checklist
Finished Container
| Field | Value / Options |
| Lotion Format | Pump Bottle / Tall Pump Bottle / Flip-Cap Bottle / Disc-Top Bottle / Airless Bottle / Tube / Other |
| Capacity | ____________________ |
| Complete Closed / Locked Height | ____________________ |
| Maximum Width | ____________________ |
| Maximum Depth | ____________________ |
| Maximum Diameter, if round | ____________________ |
| Maximum Shoulder Width | ____________________ |
| Base Width / Diameter | ____________________ |
| Base Depth | ____________________ |
Pump or Closure
| Field | Value / Options |
| Packing State | Locked / Clipped / Overcapped / Other |
| Pump Actuator Width | ____________________ |
| Spout Projection | ____________________ |
| Approved Spout Direction | ____________________ |
| Pump / Collar Profile | ____________________ |
| Overcap Dimensions | ____________________ |
| Flip / Disc-Top Cap Profile | ____________________ |
Tube Details
| Field | Value / Options |
| Maximum Filled Tube Width | ____________________ |
| Maximum Filled Tube Depth | ____________________ |
| Crimp / Sealed-End Width | ____________________ |
| Cap Width / Diameter | ____________________ |
Packaging Configuration
| Field | Value / Options |
| Filled Weight | ____________________ |
| Center of Gravity | Bottom-Heavy / Balanced / Top-Heavy / Unsure |
| Orientation | Upright / Horizontal / Other / Unsure |
| Internal Support Required | Yes / No / Unsure |
| Removal Direction | Lift Up / End Removal / Tray Removal / Other / Unsure |
| Products Per Box | ____________________ |
| Window Required | Yes / No / Unsure |
| Hang Tab / Header Required | Yes / No / Unsure |
| Product Photograph / Technical Drawing Available | Yes / No |
SKU and Quote Details
| Field | Value / Options |
| Number of Formulas / SKUs | ____________________ |
| Same Physical Container Across SKUs | Yes / No / Unsure |
| Quantity Per SKU | ____________________ |
| Preferred Box Structure | ____________________ |
| Intended Use | Retail / Ecommerce / Set / PR / Other |
| Artwork Status | Ready / In Progress / Not Started |
| Delivery Destination | ____________________ |
Instead of providing only:
Need 500 boxes for an 8 oz lotion.
provide:
The finished 8 oz pump bottle measures 2.20 in at its maximum shoulder width, 2.12 in deep including the locked pump spout and 6.40 in complete closed height. It will be packed upright as one bottle per carton, and no insert has yet been confirmed.
That gives the packaging supplier physical information that can actually be used to develop the carton.
Confirm the Final Fit Before Production
Measurements establish the starting specification, but the completed fit should still be reviewed through the proofing or sample route confirmed for the project.
Where a structural or physical sample is used, review the complete bottle fit, pump and side clearance, insertion and removal, internal support and intended orientation before production approval.
If the carton includes a window, confirm its alignment against the final packed product.
This final review is particularly important when the package contains a directional pump, narrow-base bottle, fitted support or multiple products.
Finished Lotion Box Dimensions vs Flat Dieline Size
The completed lotion box and its flat dieline have different dimensions.
A finished carton is normally described as:
Width × Depth × Height
The flat dieline is larger because it includes the structural panels required to create that three-dimensional package.
Depending on the chosen structure, the dieline may contain:
- front and back panels;
- side panels;
- top and bottom flaps;
- glue areas;
- closure components;
- hang-tab or header areas;
- insert-related components.
Therefore:
Finished Box Dimensions ≠ Flat Dieline Dimensions
Do not use the assembled carton dimensions as the artwork-canvas dimensions.
The selected carton proportions should also leave usable panel space for the approved artwork. Product description, claims, warnings, net quantity, barcode and other market-specific labeling remain the buyer’s responsibility.
A practical development sequence is:
Finished Container → Internal Carton Specification → Material + Structure → Finished Box Dimensions → Flat Dieline → Proof / Approval
Request Custom Lotion Box Pricing
A reliable lotion-box specification starts with the complete filled container in its approved packing state, not a generic 100 ml, 200 ml, 250 ml or 8 oz reference size.
BoxBaba supplies Custom Lotion Boxes for product-specific skincare packaging projects.
BoxBaba’s verified minimum order quantity for custom cosmetic boxes starts from 100 boxes.
When requesting pricing, provide the container format, complete closed dimensions, shoulders and base measurements, pump/cap/overcap profile, spout projection and direction, tube dimensions where applicable, filled weight where relevant, orientation, support requirements, quantity per SKU and artwork status.
If you do not yet know the final carton dimensions, provide the finished lotion-container measurements rather than estimating an external box size.
Proofing or sample routes are confirmed during quotation. Production timing is project-specific after the dimensions, structure, material, inserts, artwork, quantities, finishes and proofing requirements are approved. Shipping methods, charges and estimated transit times are confirmed according to the completed order, packing format, destination and selected service.
Brands planning a wider beauty packaging range can also review Custom Cosmetic Boxes for the broader commercial category.
Measure the complete lotion container—including its shoulders, final pump or cap, directional spout, overcap and tube crimp where applicable—before developing the carton around it.
FAQs About Lotion Box Sizes and Dimensions
What is the standard lotion box size?
There is no universal production-ready lotion box size. Pump bottles, flip-cap bottles, airless containers and tubes can have different exterior dimensions even at the same capacity, so the carton should be developed around the actual finished container.
Does lotion capacity determine box size?
No. Capacity describes how much lotion the container holds, not its exterior geometry. Two 200 ml or 8 oz bottles can have different widths, shoulders, pumps, caps and overall heights.
What size box do I need for an 8 oz lotion bottle?
There is no single box size for every 8 oz lotion bottle. Measure the complete filled bottle in its approved packing state, including the shoulders, pump or cap, spout projection and total closed height, before establishing internal carton dimensions.
How do I measure a lotion bottle for a custom box?
Measure the complete filled and sale-ready container. Record its maximum width, depth or diameter and complete closed height, including the final pump, cap, collar, spout or overcap.
What determines lotion box width?
The widest point of the complete container establishes the starting width. Depending on the bottle, this may be the central body, shoulders, pump actuator, overcap or another permanent exterior projection.
Should I include the lotion pump when measuring?
Yes. Measure the pump in its approved packing state. The actuator, spout or overcap may extend beyond the bottle and determine the required carton width, depth or height.
Does pump orientation affect lotion box dimensions?
It can. A directional pump may create a different maximum width or depth when rotated. Confirm the packing orientation before the carton and any internal support are finalized.
How do I measure a lotion tube?
Measure the tube in its filled and closed condition where possible. Record complete length, maximum filled width, maximum filled depth, cap dimensions and crimp or sealed-end width.
Are lotion-container dimensions the same as lotion-box dimensions?
No. Container dimensions describe the finished primary package, internal box dimensions describe usable space inside the carton and external dimensions describe the completed outside package.
