There is no universal cream box size. A 15 ml, 30 ml, 50 ml or 100 ml capacity does not determine carton dimensions because cream jars, tubs and airless containers can have very different exterior shapes.
Measure the complete closed product—including the lid, actuator, overcap and permanent decorative features—then use its maximum dimensions, required clearance and any internal support to develop the carton.
A useful sizing sequence is:
Complete Closed Cream Container → Maximum Product Envelope → Clearance / Internal Support → Internal Box Dimensions → Material + Structure → External Box Dimensions
Brands preparing a packaging project can explore Custom Cream Boxes. For broader measurement principles across cosmetic products, review the Cosmetic Box Size Guide.
Primary Cream Container vs Secondary Cream Box
In this guide, the cream container means the primary package that directly holds the cosmetic product, such as a jar, tub or airless dispenser.
The cream box means the secondary carton developed around that finished primary package.
The relationship is:
Cream Product → Primary Jar / Container → Secondary Cream Carton
This distinction matters because a 50 ml capacity describes the amount of cream inside the primary package. It does not describe the external dimensions required for the secondary carton.

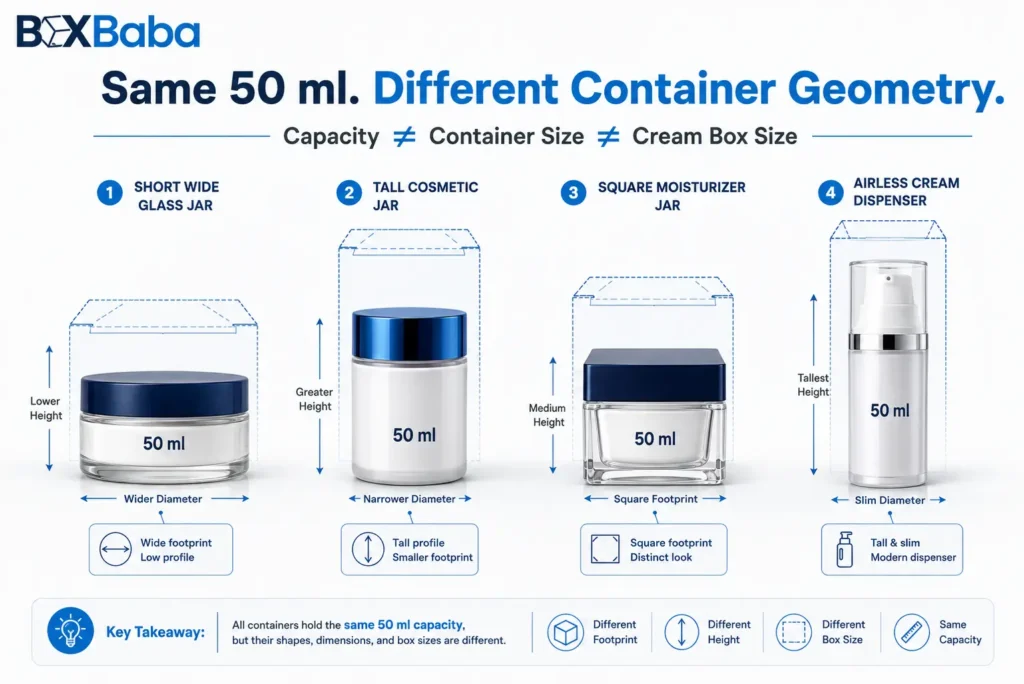

Is There a Standard Cream Box Size?
There is no single production-ready carton size for every 15 ml, 30 ml, 50 ml or 100 ml cream product.
Two products with the same capacity might use:
- a short, wide glass jar;
- a tall cosmetic jar;
- a square moisturizer container;
- a double-wall plastic jar;
- an airless dispenser;
- a wide body-butter tub.
Each can require different carton dimensions.
The important distinction is:
Cream Capacity / Fill Volume ≠ Finished Container Dimensions ≠ Cream Box Dimensions
Published cream-box size charts can be useful for early reference, but they should not replace measurements from the actual finished container.
Cream Jar Measurement-to-Box Size Matrix
| Measurement | What to Measure | Why It Matters |
| Complete closed height | Base to highest lid, actuator or overcap point | Establishes starting carton height |
| Maximum diameter | Widest point of a round jar or lid | Establishes round-container footprint |
| Maximum width | Widest exterior point | Required for square, oval or irregular formats |
| Maximum depth | Maximum front-to-back dimension | Required for non-round containers |
| Jar-body diameter / width | Main container body | Helps identify whether the lid extends farther |
| Lid diameter / width | Widest closure profile | Lid may control carton width |
| Lid height | Complete closed lid profile | May control overall height |
| Lid overhang | Projection beyond the jar body | Can affect required side space |
| Base footprint | Actual standing surface | Provides orientation and support input |
| Decorative projection | Raised emblem, sculpted lid or permanent exterior feature | May become the widest or tallest point |
| Filled weight | Complete sale-ready product | Provides structural context |
| Airless actuator / overcap | Complete installed closure profile | May control width or height |
| Spatula / accessory | Size and final packed position | Can change internal layout |
| Removal direction | Lift upward, pull from side or other intended removal | Helps establish access and insert clearance |
| Orientation | Upright or another approved position | Changes how dimensions map to carton axes |
| Internal support | Insert, platform or fitted cavity | Consumes usable internal space |
These measurements describe the finished cream product and packaging inputs, not completed production-carton dimensions.

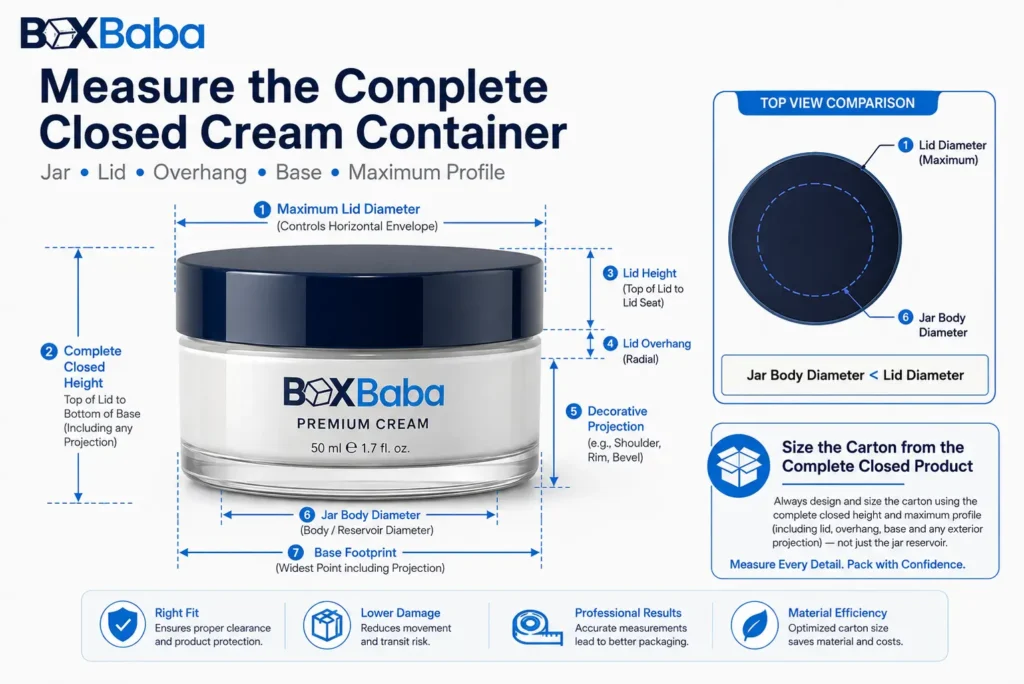

What Measurements Do You Need From a Cream Container?
The correct measurement entity is the complete closed cream container.
Do not measure only the empty jar body if the lid, overcap, actuator or permanent decorative component changes the finished exterior profile.
Complete Closed Height
Measure from the lowest point of the base to the highest point of the installed lid or closure.
Include the final:
- lid;
- decorative top;
- collar;
- actuator;
- dispensing head;
- overcap.
The jar-body height alone may understate the finished product height.
Maximum Diameter, Width and Depth
For a round cream jar, record:
Maximum Diameter × Complete Closed Height
Inspect both the body and lid.
For a square or rectangular container, record:
Width × Depth × Complete Closed Height
For an oval container, record:
Major Width × Minor Depth × Complete Closed Height
Do not reduce square or oval containers to one generic diameter.
Jar Body vs Lid Dimensions
Measure the body and lid independently.
For example:
Jar Body Diameter: 2.10 in
Lid Diameter: 2.28 in
Therefore:
Maximum Finished Product Diameter: 2.28 in
The lid—not the reservoir body—controls the starting horizontal envelope in this example.
Lid Shape and Overhang
Check whether the lid is:
- wider than the jar;
- domed;
- tapered;
- stepped;
- fitted with a decorative top;
- covered by an overcap.
The complete closed lid profile should be included in the measurement.
Base Footprint
Record the actual surface on which the container stands.
A wide lid does not necessarily mean the jar has an equally wide base.
Base footprint can be particularly relevant for heavy glass jars, narrow-bottom containers and fitted internal-support layouts.
Decorative Projections
Measure any permanent exterior component that extends beyond the standard jar or lid profile.
Examples can include:
- sculpted lids;
- raised emblems;
- attached decorative collars;
- permanent outer sleeves;
- shaped exterior features.
The carton should follow the largest finished exterior profile rather than the nominal jar-body dimensions.
Filled Weight
Record the complete sale-ready product weight where available.
Filled weight does not directly determine carton dimensions, but it may influence the selected structure and internal-support system.
How to Measure a Cream Jar Step by Step
Step 1 — Identify the Container Format
Confirm whether the product uses a:
- round jar;
- square jar;
- oval jar;
- wide tub;
- double-wall jar;
- airless container;
- travel or sample jar;
- another verified format.
Step 2 — Use the Finished Product
Whenever possible, measure the filled product or an approved production sample.
Install the final lid, actuator, overcap and permanent decorative components.
Step 3 — Close the Product Completely
Measure the cream container exactly as it will be packed and sold.
The correct measurement entity is the complete closed cream container.
Step 4 — Confirm Orientation
Determine whether the product will sit:
- upright;
- horizontally;
- inside a fitted insert;
- within a multi-product set.
Orientation should be confirmed before carton proportions are finalized.
Step 5 — Measure the Maximum Product Envelope
For a round jar:
Maximum Diameter × Complete Closed Height
For a square or rectangular jar:
Width × Depth × Complete Closed Height
For an oval container:
Major Width × Minor Depth × Complete Closed Height
Check the lid and closure separately because they may extend beyond the central body.
Step 6 — Inspect Lid, Base and Exterior Features
Record any relevant:
- lid overhang;
- dome;
- taper;
- actuator;
- overcap;
- decorative projection;
- base profile.
The widest or tallest point may occur outside the main jar body.
Step 7 — Record Filled Weight
Use the complete sale-ready product where possible.
For heavy glass containers, also record the base footprint and note the weight distribution.
Step 8 — Confirm Accessories, Support and Removal Direction
Determine whether the carton will contain:
- a fitted insert;
- base support;
- spatula;
- applicator;
- another skincare product.
Also confirm how the customer or packer should remove the product.
A fitted cavity that closely matches the jar may still need finger access or another suitable removal path.
Step 9 — Record and Label Dimensions Consistently
Use one measurement system, such as inches or millimeters.
For non-round containers, use:
Width × Depth × Height
For example:
Cream Product Dimensions:
2.28 in maximum diameter × 1.92 in complete closed height
These are product dimensions, not final box dimensions.
Cream Box Sizing by Container Format
| Cream Container | Dimensions to Record | Extra Feature to Check | Main Sizing Risk |
| Round glass jar | Maximum diameter × complete closed height | Lid overhang and filled weight | Lid may be wider than body |
| Square jar | Width × depth × complete height | Lid corners / projection | Diameter-based sizing is inaccurate |
| Oval jar | Major width × minor depth × height | Lid alignment | Front width alone can understate depth |
| Wide body-butter tub | Maximum W/D or diameter + height | Wide closure | Capacity may not predict footprint |
| Plastic moisturizer jar | Complete exterior dimensions | Outer-wall construction | Outside size may differ from inner reservoir |
| Double-wall jar | Maximum external W/D or diameter + H | Outer shell and lid | Fill volume may misrepresent finished size |
| Airless cream container | Maximum exterior profile + assembled height | Actuator and overcap | Closure may control width or height |
| Travel / sample jar | Actual finished dimensions | Lid-to-body proportion | Should not be scaled from full-size packaging |
| Jar + spatula set | Jar + accessory + completed layout | Accessory position | Spatula can change internal footprint |
| Multi-jar set | Every product + spacing + support | Completed arrangement | One jar does not define the set |

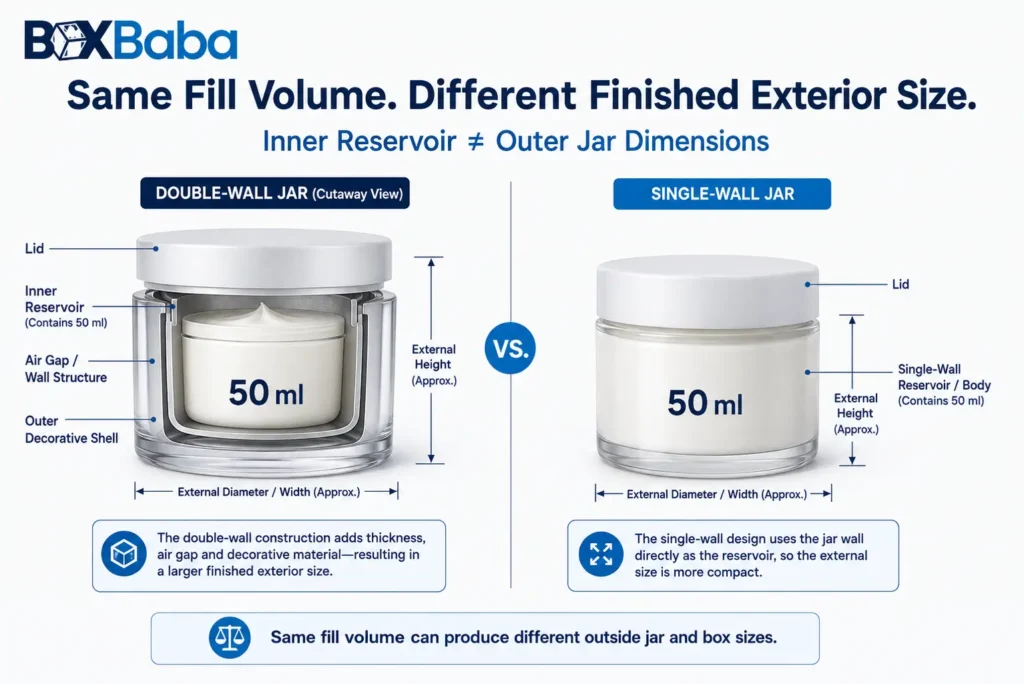

Double-Wall Cream Jars
A double-wall jar should be measured from its finished exterior shell, not from the inner reservoir.
The advertised capacity describes how much cream the internal cavity holds.
The carton must fit the complete outside package.
Therefore, a 50 ml double-wall jar may have different exterior dimensions from a 50 ml single-wall jar.
This is another reason why capacity alone should not be used to choose carton dimensions.
Measuring Airless Cream Containers
An airless cream package should be measured as a complete assembled product.
Include the:
- container body;
- collar;
- actuator;
- dispensing top;
- overcap, where applicable.
The actuator or overcap may extend beyond the central body and become the controlling width or height.
Measure the finished airless container rather than only its reservoir.
Cream Jars With Spatulas or Applicators
If a spatula or applicator will be packed inside the same carton, confirm its final position before the internal dimensions are finalized.
It may be positioned:
- beside the jar;
- above the jar;
- inside a fitted cavity;
- within a separate compartment.
A spatula placed beside the jar may increase width or depth, while an accessory positioned above it may require additional vertical space.
The completed packed arrangement should determine the required internal space.
Worked Example: Measuring a Round 50 ml Cream Jar
Consider a hypothetical round 50 ml cream jar with these finished measurements:
Jar body diameter: 2.12 in
Maximum lid diameter: 2.28 in
Complete closed height: 1.92 in
The starting product envelope should not be:
2.12 in diameter × 1.92 in height
because the lid extends beyond the main body.
Use:
2.28 in maximum diameter × 1.92 in complete closed height
These are still finished product dimensions, not final carton dimensions.
The carton can then be developed after considering clearance, internal support, material and structure.
This hypothetical example should not be treated as a standard size for every 50 ml cream jar.

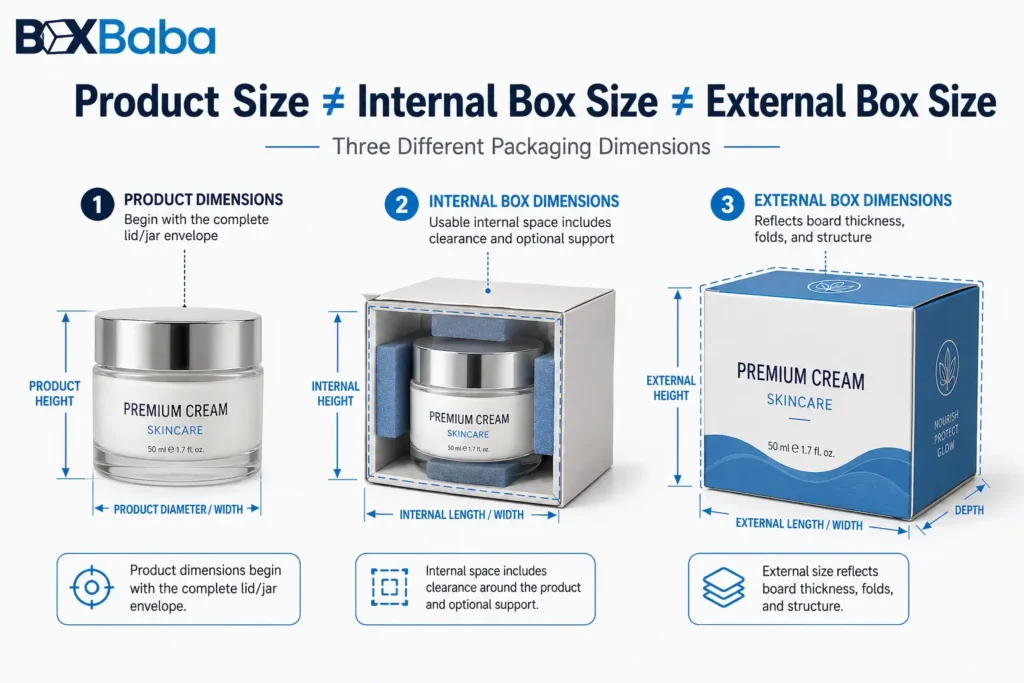

Product Dimensions vs Internal vs External Cream Box Dimensions
These three measurement entities should remain separate.
Product Dimensions
These describe the complete closed cream container.
Examples include:
Maximum Diameter × Complete Closed Height
or:
Width × Depth × Complete Closed Height
Internal Box Dimensions
Internal dimensions describe the usable space inside the carton.
They may need to accommodate:
- the finished product envelope;
- approved clearance;
- orientation;
- insert or base support;
- accessory position;
- removal access.
External Box Dimensions
External dimensions describe the finished outside size of the carton.
They can be influenced by:
- internal dimensions;
- board thickness;
- carton construction;
- folds;
- panels;
- closures.
A cream jar measuring 2.28 inches in maximum diameter and 1.92 inches in height should not automatically be assigned a carton with those same external dimensions.
The finished primary container, usable internal cavity and external carton are separate measurement entities.
What Changes the Final Internal Cream Box Size?
Clearance
There is no universal clearance allowance that should automatically be added to every cream carton.
Required space can depend on:
- jar geometry;
- lid overhang;
- dome or taper;
- actuator profile;
- carton structure;
- board thickness;
- insert design;
- packing method;
- product-removal direction.
Final clearance should be confirmed through the selected structure, dieline and applicable proofing or sample route.
Orientation
Most individual cream jars may be reviewed upright, but the intended packed position should still be confirmed.
A jar might instead sit horizontally or within a presentation tray.
Changing orientation changes how the same product dimensions map to carton width, depth and height.
Internal Support
A fitted insert, platform or base-support component uses internal space and should be considered before carton dimensions are finalized.
Not every cream box requires an insert.
Internal support should be evaluated according to the actual container geometry, filled weight, position and presentation requirements.
Heavy Glass Jars
Heavy glass cream jars should be evaluated using more than capacity.
Important inputs include:
- complete closed dimensions;
- lid profile;
- base footprint;
- filled weight;
- weight distribution;
- intended orientation.
A short 50 ml glass jar may be substantially wider and heavier than a tall plastic 50 ml container.
Filled weight does not automatically mean a foam or fitted insert is required. The complete packaging system should be evaluated before choosing support.

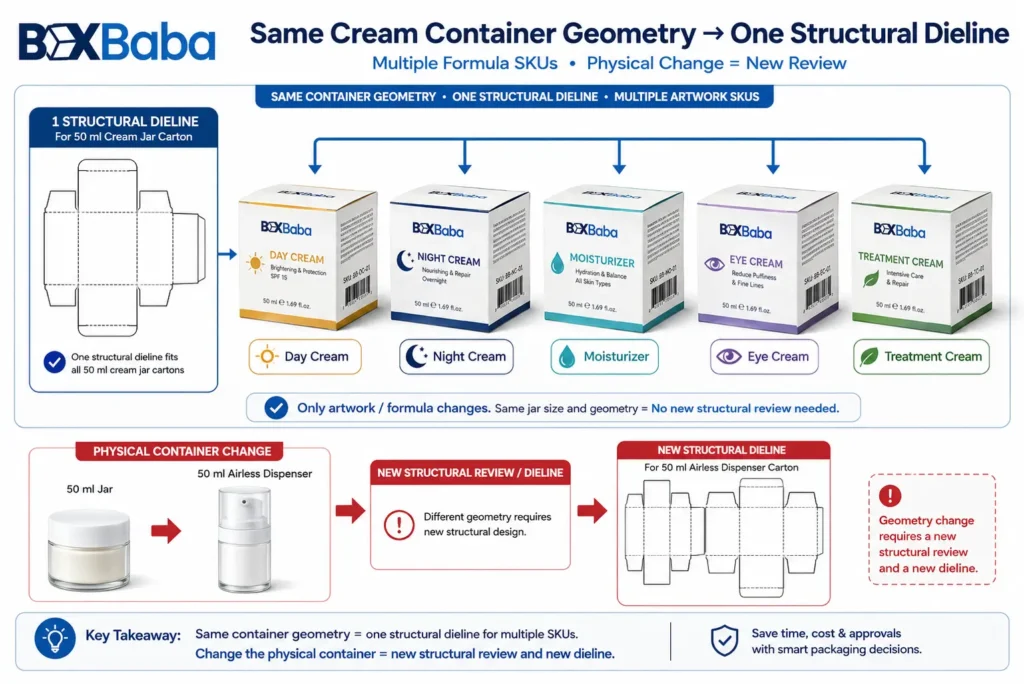

Can Multiple Cream Formulas Use the Same Box Size?
Yes, when different formulas use the same physical container and structural configuration.
A skincare brand might sell:
- day cream;
- night cream;
- moisturizer;
- eye cream;
- treatment cream;
using the same jar.
If the jar, lid, exterior dimensions, orientation and carton structure remain unchanged, one physical carton configuration may support multiple artwork versions.
The dieline should be reviewed if another SKU changes the:
- jar dimensions;
- lid or closure;
- actuator;
- decorative profile;
- filled-weight range;
- orientation;
- insert;
- carton structure.
Different formulas do not automatically require different structural boxes.
Cream Sets and Multi-Jar Packaging
A cream set should be sized from the completed arrangement rather than by multiplying one jar dimension by the number of products.
A set may include:
- day cream + night cream;
- moisturizer + eye cream;
- cream + serum;
- cream + spatula;
- full-size + travel jar;
- several skincare containers.
Consider:
- every finished product;
- orientation;
- spacing;
- insert layout;
- accessory position;
- removal access;
- completed loaded weight.
Two jars measuring 2.25 inches in diameter do not automatically require exactly 4.50 inches of internal width because spacing, dividers, removal access and structural components can change the completed layout.
Retail Cream Carton vs Ecommerce Outer Package
The individual retail carton and ecommerce shipping package are different sizing tasks.
For the retail unit:
Finished Cream Container → Individual Cream Carton
For ecommerce:
Completed Boxed Order → Mailer / Shipping Carton
Do not use the bare cream-jar dimensions to determine the outer parcel package.
Likewise, do not enlarge the individual retail carton simply because the product will later be shipped through ecommerce.
When several cream cartons are placed in a retail display, the completed individual-carton dimensions become inputs for the display layout.
Common Cream Box Sizing Mistakes
| Sizing Mistake | Better Approach |
| Treating 30 ml or 50 ml as a box size | Measure the actual finished container |
| Measuring only the jar body | Include lid, closure and permanent projections |
| Ignoring lid overhang | Record the maximum closed profile |
| Using body diameter when the lid is wider | Use the widest exterior dimension |
| Using diameter for a square jar | Measure width and depth separately |
| Treating an oval container as round | Record major width and minor depth |
| Ignoring a domed or tapered lid | Include the complete lid profile |
| Measuring only the inner reservoir | Measure the complete outer container |
| Ignoring a decorative projection | Measure the finished decorated profile |
| Ignoring a thick glass base | Record outside geometry and filled weight |
| Assuming every glass jar requires an insert | Evaluate actual support requirements |
| Applying one universal clearance value | Confirm through structure and proofing |
| Finalizing the carton before support | Include insert/base-support space first |
| Forgetting removal access | Confirm how the product will be lifted or removed |
| Forgetting a spatula or accessory | Size the completed packed arrangement |
| Assuming every formula needs a new dieline | Compare the physical container configuration |
| Assuming equal capacity means equal jar size | Compare actual exterior geometry |
| Measuring only one jar in a set | Size the completed arrangement |
| Using retail-carton size for ecommerce shipping | Measure the completed boxed order separately |
Cream Jar Measurement and Quote Checklist
Product Measurements
Container Format:
Round Jar / Square Jar / Oval Jar / Wide Tub / Double-Wall Jar / Airless / Travel Jar / Other
Capacity / Net Contents:
____________________
Complete Closed Height:
____________________
Maximum Diameter:
____________________
Maximum Width:
____________________
Maximum Depth:
____________________
Jar Body Diameter / Width:
____________________
Lid Diameter / Width:
____________________
Lid Height / Overhang:
____________________
Base Footprint:
____________________
Decorative Projection:
____________________
Airless Actuator / Overcap Profile:
____________________
Filled Weight:
____________________
Packaging Configuration
Orientation:
Upright / Horizontal / Other / Unsure
Products Per Box:
____________________
Internal Support Required:
Yes / No / Unsure
Removal Direction:
Lift Up / Side Removal / Other / Unsure
Spatula / Accessory Included:
Yes / No
Accessory Dimensions / Position:
____________________
Additional Products:
____________________
Preferred Box Structure:
____________________
SKU and Quote Information
Number of Formulas / SKUs:
____________________
Same Physical Container Across SKUs:
Yes / No / Unsure
Quantity Per SKU:
____________________
Intended Use:
Retail / Ecommerce / Gift Set / PR / Other
Artwork Status:
Ready / In Progress / Not Started
Delivery Destination:
____________________
Instead of:
Need 500 boxes for a 50 ml cream.
provide:
The finished round 50 ml cream jar measures 2.28 in at its maximum lid diameter and 1.92 in complete closed height. The lid is wider than the jar body, and the product will be packed upright as one jar per carton. No insert has yet been confirmed.
This gives the packaging supplier usable product information without assuming that the final carton dimensions are already known.
From Cream Measurements to the Final Dieline
Cream-container dimensions are starting inputs, not completed production-dieline dimensions.
Use:
Complete Closed Cream Measurements → Jar / Lid / Closure Profile → Orientation + Support → Internal Carton Dimensions → Material + Structure → Dieline → Proof / Approval
A production dieline may also contain:
- structural panels;
- folds;
- flaps;
- glue areas;
- closure components;
- insert features.
Do not create a cream-box dieline by simply adding an arbitrary amount to the jar dimensions.
For broader structure, material, insert and finish decisions, review the Cream Packaging Guide after the physical cream-container dimensions have been established.
Request Custom Cream Box Pricing
A reliable cream-box specification starts with the complete closed and sale-ready cream container, not a generic capacity reference.
BoxBaba supplies Custom Cream Boxes for custom cosmetic packaging projects.
BoxBaba’s MOQ for custom cosmetic boxes starts from 100 boxes.
When requesting pricing, provide the finished cream-container dimensions, lid or closure profile, filled weight, intended orientation, accessory details, internal-support requirements, preferred structure if known, quantity per SKU and artwork status.
If the final carton dimensions are not yet known, provide the finished cream-product measurements rather than estimating an external box size.
Proofing or sample routes are confirmed during quotation. Production timing is project-specific after dimensions, structure, material, inserts, artwork, quantities, finishes and proofing requirements are approved. Shipping methods, charges and estimated transit times are confirmed according to the completed order, packing format, destination and selected service.
Measure the complete closed cream container—including the lid and widest exterior point—before developing the carton around it.
FAQs About Cream Box Sizes and Dimensions
What is the standard cream box size?
There is no universal production-ready cream box size. A 15 ml, 30 ml, 50 ml or 100 ml cream can use different jars, tubs or airless containers, so the carton should be developed from the actual finished primary package.
Is a 50 ml cream box always the same size?
No. Two 50 ml creams can use very different exterior container geometries. A short wide glass jar, tall plastic jar and airless dispenser can all contain 50 ml while requiring different carton dimensions.
How do I measure a cream jar for a custom box?
Measure the container in its complete closed and sale-ready condition. For a round jar, record the maximum diameter and complete closed height. For a non-round container, record width, depth and complete closed height.
Should I measure the jar body or the lid?
Measure both. The widest point of the complete product controls the starting horizontal envelope. If the lid extends beyond the jar body, use the lid’s maximum width or diameter.
How do I measure an airless cream container?
Measure the complete assembled package, including the body, collar, actuator, dispensing top and overcap where applicable. The closure may become the controlling width or height.
How much clearance should a cream box have?
There is no universal allowance. Required clearance depends on container geometry, lid profile, carton structure, board thickness, orientation, internal support, packing method and removal requirements.
Should a spatula be included when measuring a cream package?
Yes, if the spatula will be packed inside the same carton. Its dimensions and intended position should be included in the completed packaging layout before internal dimensions are finalized.
Are cream-container dimensions the same as cream-box dimensions?
No. Product dimensions describe the finished primary container, internal box dimensions describe usable carton space, and external dimensions describe the completed outside carton.
Can multiple cream formulas use the same box?
Yes, when they use the same physical container and structural requirements. Different formulas or artwork versions do not automatically require a different physical dieline.
