There is no universal production-ready mascara box size. Published reference dimensions can be useful during early planning, but they should not replace measurements from the actual finished mascara product.
For custom packaging, measure the mascara in its complete closed and sale-ready condition, including the tube body, installed cap/wand assembly, collar and any decorative projection. The widest and tallest points of the finished product establish the starting product envelope.
Use this sizing sequence:
Complete Closed Mascara Product → Maximum Product Envelope → Clearance / Internal Support → Internal Box Dimensions → Material + Structure → External Box Dimensions
Brands preparing a custom project can explore Custom Mascara Boxes. For broader measurement principles across cosmetic products, review the Cosmetic Box Size Guide.
Is There a Standard Mascara Box Size?
There is no single production-ready carton size that fits every mascara product.
Different mascara formats can vary in:
- complete closed height;
- body diameter;
- cap width;
- collar profile;
- square, oval or irregular geometry;
- decorative projections;
- mini proportions;
- dual-ended construction.
Some suppliers publish example mascara-box dimensions, but those figures should be treated as reference sizes rather than universal specifications.
The important distinction is:
Published Reference Size ≠ Production Specification
and:
Mascara Fill Volume / Product Type ≠ Finished Product Dimensions ≠ Mascara Box Dimensions
The carton should be developed around the actual finished mascara product.
What Does Mascara Tube Mean in This Guide?
For measurement purposes, it is useful to distinguish between two entities:
Tube Body
The reservoir or central container component.
Complete Mascara Product
The tube body plus the installed cap/wand assembly, collar and permanent exterior features in the condition in which the mascara will be packed and sold.
The complete mascara product is the correct measurement entity for carton sizing.
Mascara Tube Measurement-to-Box Size Matrix
| Measurement | What to Measure | Why It Matters |
| Complete closed height | Base to highest point of installed cap | Establishes starting carton height |
| Maximum diameter | Widest point of a round tube, cap or collar | Establishes round-product footprint |
| Maximum width | Widest exterior point | Required for square, oval or irregular formats |
| Maximum depth | Maximum front-to-back profile | Required for non-round products |
| Cap diameter / width | Widest closure area | Cap may control carton width |
| Collar profile | Transition between body and closure | Can affect clearance |
| Base footprint | Actual standing surface | Provides orientation and support input |
| Decorative projection | Raised logo, shaped cap or faceted exterior | May exceed the nominal body profile |
| Filled weight | Complete sale-ready product | Provides structural context |
| Weight distribution | Whether the product is balanced, base-heavy or cap-heavy | May influence orientation or support |
| Dual-ended profile | Maximum profile of both ends | Either end may control width |
| Orientation | Upright or horizontal | Changes how dimensions map to carton axes |
| Internal support | Insert, end stop or positioning feature | Consumes usable internal space |
These are product measurements and packaging inputs, not final production-carton dimensions.

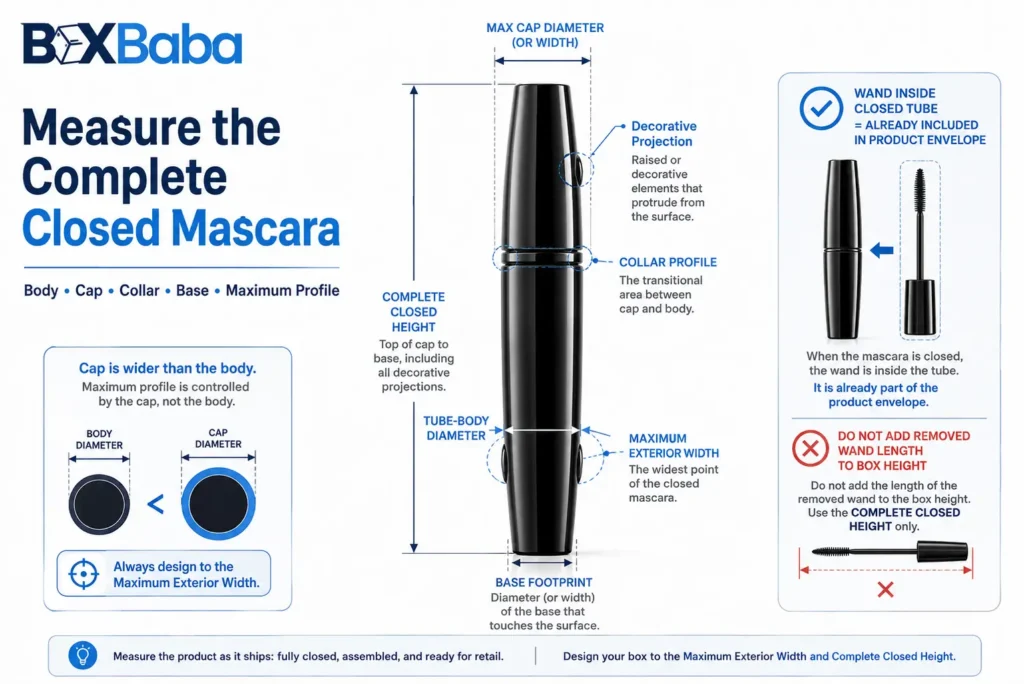

What Measurements Do You Need From a Mascara Product?
Complete Closed Height
Measure from the lowest point of the base to the highest point of the installed cap.
Use the complete closed height rather than only the reservoir or body length.
Do not add the removed wand length to the carton height.
The wand normally sits inside the tube when mascara is packed, so the relevant measurement is:
Closed Tube + Installed Cap/Wand Assembly
Maximum Diameter, Width and Depth
For a cylindrical mascara product, record:
Maximum Diameter × Complete Closed Height
Inspect the full product because the cap may be wider than the body.
If the tube body measures 0.64 inches in diameter but the cap measures 0.72 inches, the relevant maximum diameter is 0.72 inches.
For a square or rectangular product, record:
Width × Depth × Complete Closed Height
For an oval product, record:
Major Width × Minor Depth × Complete Closed Height
Do not treat a square or oval product as though it has one universal diameter.
Cap and Collar Profile
Inspect the closure area carefully.
A mascara cap may be:
- wider than the tube body;
- tapered;
- faceted;
- irregular;
- decorated with raised features.
The cap or collar can become the widest part of the product and therefore the controlling horizontal measurement.
Base Footprint
Record the actual standing surface.
This is useful for tall, slim mascara formats because the base may be significantly narrower than the cap or upper body.
Filled Weight and Balance
Record the complete sale-ready product weight where available.
A heavy decorative cap or narrow standing base does not automatically change carton size, but it can affect how orientation or internal support is evaluated.
How to Measure a Mascara Tube Step by Step
Step 1 — Use the Finished Product
Whenever possible, measure the actual filled mascara tube or an approved production sample.
Install the final cap, collar and permanent decorative components.
Step 2 — Close the Mascara Completely
Measure the product in the condition in which it will be packed and sold.
Do not measure the removed wand as an additional external component unless it will actually be packed separately.
Step 3 — Confirm Orientation
Determine whether the mascara will sit:
- upright;
- horizontally;
- in a fitted tray;
- inside a multi-product set.
Orientation should be confirmed before carton proportions are finalized.
Step 4 — Measure Complete Closed Height
Measure from the base to the highest point of the installed cap.
Record the actual product measurement before adding any packaging allowance.
Step 5 — Find the Maximum Exterior Profile
For a round tube, record the maximum diameter.
For a square or rectangular format, record maximum width and depth.
For an oval format, record major width and minor depth.
Check the cap and collar rather than assuming the central tube body is the widest point.
Step 6 — Check the Base, Collar and Decorative Features
Inspect the:
- base;
- collar;
- shaped cap;
- raised logo;
- faceted exterior;
- extended decorative feature.
Record any feature that projects beyond the main tube body.
Step 7 — Record Filled Weight and Balance
Use the complete sale-ready product where possible.
If the product is noticeably cap-heavy or has a narrow base, note this as part of the packaging specification.
Step 8 — Confirm Internal-Support Requirements
Determine whether the carton will rely on:
- direct carton fit;
- fitted insert;
- end stop;
- base support;
- multi-product tray.
Required internal support should be considered before final internal dimensions are approved.
Step 9 — Record Dimensions Consistently
Use one measurement system, such as inches or millimeters.
For non-round products, label dimensions consistently:
Width × Depth × Height
For example:
Mascara Product Dimensions:
0.76 in maximum diameter × 4.42 in complete closed height
These are product dimensions, not final mascara-box dimensions.

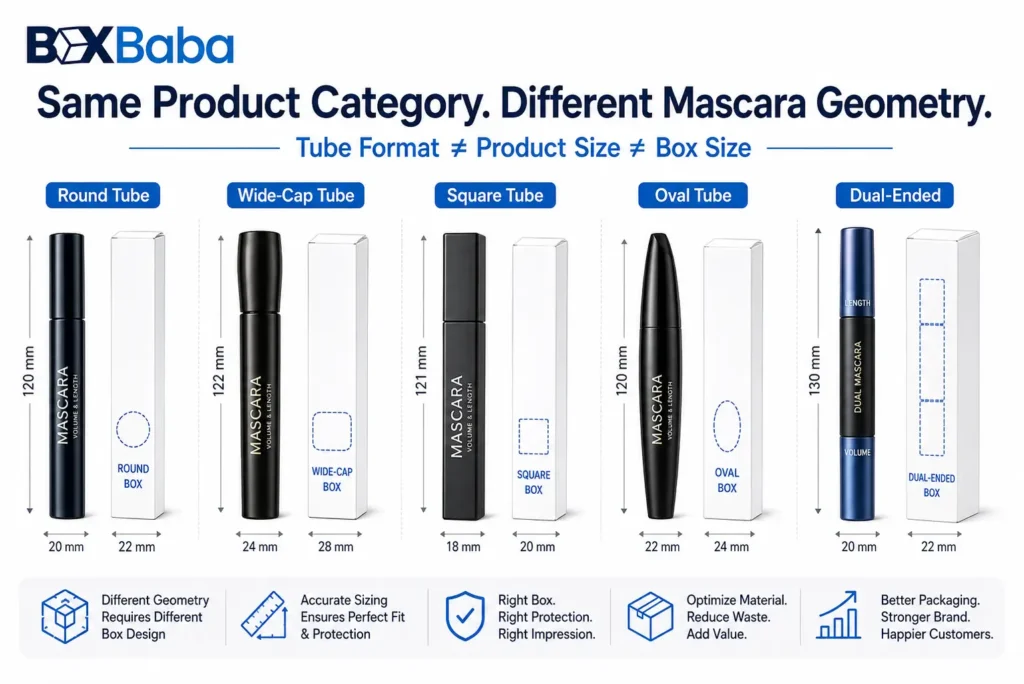

Mascara Sizing by Tube Format
| Mascara Format | Dimensions to Record | Extra Feature to Check | Main Sizing Risk |
| Standard round tube | Maximum diameter × complete closed height | Cap and collar | Cap may be wider than body |
| Tall slim tube | Maximum diameter + complete closed height | Base footprint and balance | Height alone does not describe fit |
| Wide-cap tube | Body diameter + cap diameter + complete height | Decorative closure | Cap may control width |
| Square tube | Width × depth × complete height | Corners and cap | Diameter-based sizing is inaccurate |
| Oval tube | Major width × minor depth × height | Cap alignment | Front width alone can understate depth |
| Decorative / irregular tube | Maximum W × D × H | Raised or shaped features | Nominal body size may miss projections |
| Mini mascara | Actual complete mini dimensions | Cap-to-body proportion | Should not be scaled from a full-size carton |
| Dual-ended mascara | Both end profiles + complete closed length | End A and End B | Either closure may control width |
| Mascara multipack | Every tube + completed arrangement | Insert or divider | One tube does not define the set |
Mini Mascara Should Be Measured Independently
Mini or travel mascara should not automatically use a carton made by reducing the full-size package by a fixed percentage.
A mini product may have a shorter reservoir but a relatively wide cap or different base geometry.
Measure the mini SKU as its own finished product.
How to Measure Dual-Ended Mascara Packaging
Consider a hypothetical mascara product with these measurements:
Tube body diameter: 0.68 in
Maximum cap diameter: 0.76 in
Complete closed height: 4.42 in
The starting product envelope should not be:
0.68 in diameter × 4.42 in height
because the cap extends beyond the tube body.
Use:
0.76 in maximum diameter × 4.42 in complete closed height
These are still product dimensions.
The carton-sizing process then becomes:
0.76 × 4.42 in Product Envelope
→ Required Clearance / Internal Support
→ Internal Carton Dimensions
→ Material + Structure
→ External Carton Dimensions
This hypothetical example should not be treated as a universal mascara-box size.

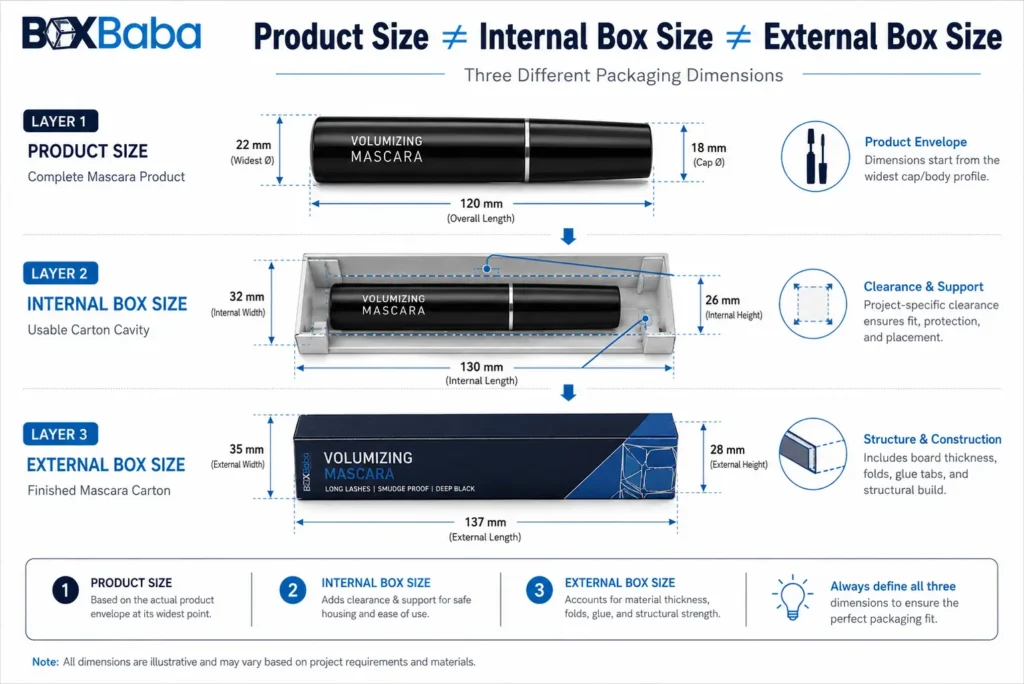

Product Dimensions vs Internal vs External Mascara Box Dimensions
Dimensions
These three measurements should remain separate.
Product Dimensions
These describe the complete closed mascara product.
For example:
Maximum Diameter × Complete Closed Height
or:
Width × Depth × Complete Closed Height
Internal Box Dimensions
Internal dimensions describe the usable space available inside the carton.
They may need to account for the product envelope, approved clearance, orientation and any internal support.
External Box Dimensions
External dimensions describe the finished outside size of the carton.
They can be affected by:
- internal dimensions;
- board thickness;
- structural construction;
- folds;
- panels;
- closures.
Therefore, a mascara product measuring 0.76 inches in maximum diameter and 4.42 inches in closed height should not automatically be assigned a carton with those exact external dimensions.
The finished product envelope, usable internal cavity and external carton are different measurement entities.
What Changes the Final Internal Mascara Box Size?
Clearance
There is no universal clearance allowance that should be applied to every mascara carton.
Required space can depend on:
- tube geometry;
- cap profile;
- carton structure;
- board thickness;
- packing method;
- internal support;
- removal direction.
Final clearance should be confirmed through the selected structure, dieline and applicable proofing or sample route.
Orientation
An upright mascara product and a horizontally presented mascara product can require different carton proportions.
For an upright tube, complete closed height normally controls carton height.
For a horizontal presentation, that same dimension may instead control carton width or depth.
Internal Support
An insert, end stop, base-support feature or multi-product tray consumes internal space.
Internal support should therefore be considered before final carton dimensions are approved.
Not every mascara carton needs an insert.
It should be evaluated according to the actual product geometry and presentation requirement.
Tall Tubes, Narrow Bases and Weight Distribution
Tall mascara tubes can have relatively narrow standing bases.
When reviewing the packaging configuration, consider the complete closed height together with:
- base footprint;
- maximum cap width;
- filled weight;
- weight distribution;
- intended orientation.
A tall, narrow and cap-heavy format may require different structural consideration from a shorter, wider tube, even if their nominal product categories are the same.

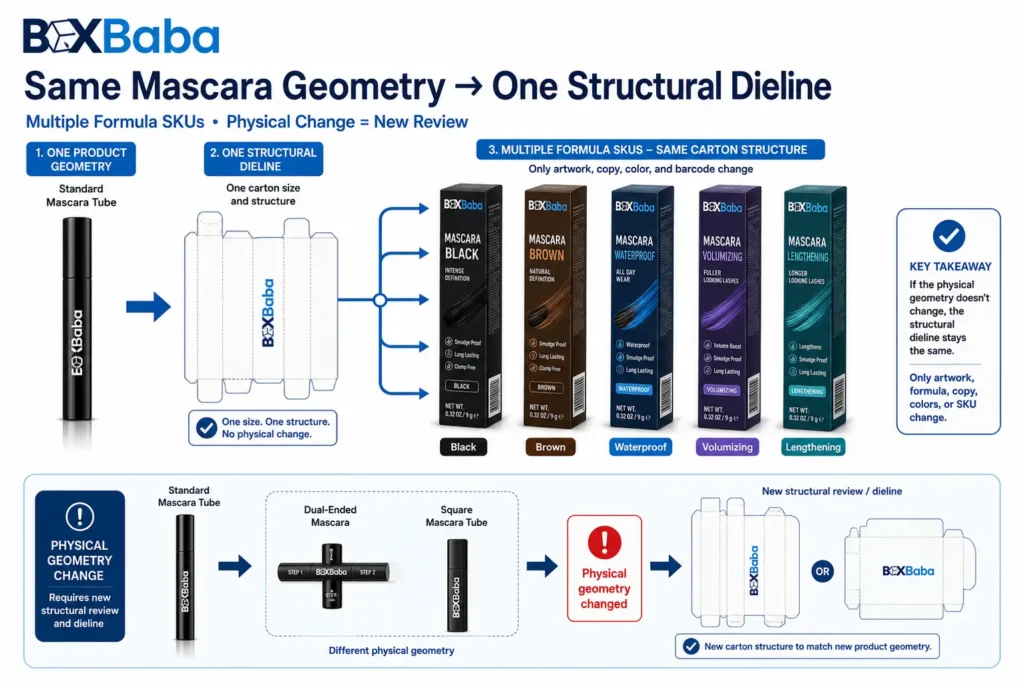

Can Multiple Mascara Formulas Use the Same Box Size?
Yes, when they use the same physical mascara package and structural configuration.
A beauty brand may sell:
- black mascara;
- brown mascara;
- waterproof mascara;
- volumizing mascara;
- lengthening mascara;
- clear mascara;
using the same physical tube.
If the tube, cap, external dimensions, orientation and carton structure remain unchanged, one physical carton configuration may support several artwork versions.
The dieline should be reviewed when another SKU changes the:
- tube dimensions;
- cap or collar;
- decorative profile;
- mini or dual-ended format;
- orientation;
- internal support;
- carton structure.
Different formulas do not automatically require different structural boxes.
Mascara Multipacks and Mascara + Primer Sets
A set should be sized from the completed arrangement rather than by multiplying the width of one tube by the number of products.
A set may contain:
- two mascara tubes;
- mascara + primer;
- full-size + mini mascara;
- mascara + eyeliner;
- mascara + another lash product.
The dimensions should account for:
- each finished product;
- orientation;
- spacing;
- insert or divider;
- removal access;
- completed loaded weight.
For example, two 0.75-inch-wide mascara tubes do not automatically require exactly 1.50 inches of internal width because spacing, dividers and surrounding structure can change the completed layout.
Retail Mascara Carton vs Ecommerce Outer Package
An individual mascara carton and an ecommerce shipping package are separate sizing tasks.
For the retail unit:
Finished Mascara Product → Individual Mascara Carton
For ecommerce:
Completed Boxed Order → Mailer / Shipping Carton
Do not use the bare mascara product dimensions to determine the outer shipping carton.
Likewise, do not enlarge the retail unit carton simply because it will later be shipped through ecommerce.
When boxed mascara products are arranged in a retail display, the finished carton dimensions become inputs for display planning.
Brands planning multi-unit presentation can evaluate Cosmetic Display Boxes after individual mascara-carton dimensions are established.
Common Mascara Box Sizing Mistakes
| Sizing Mistake | Better Approach |
| Treating a published reference size as universal | Measure the actual finished mascara product |
| Sizing from fill volume | Measure complete exterior geometry |
| Measuring only the tube body | Include cap, collar and permanent projections |
| Adding removed wand length | Measure the closed assembled product |
| Ignoring a wider cap | Record the maximum closure profile |
| Using diameter for a square tube | Measure width and depth separately |
| Treating an oval tube as round | Record major width and minor depth |
| Ignoring decorative features | Measure the complete finished exterior |
| Ignoring base footprint | Record the actual standing area |
| Ignoring filled weight and balance | Include them as structural context |
| Scaling mini packaging from the full-size carton | Measure the mini SKU independently |
| Assuming dual-ended mascara is symmetrical | Measure both ends independently |
| Treating product dimensions as external carton size | Separate product, internal and external measurements |
| Adding universal clearance | Confirm through actual structure and proofing |
| Finalizing the carton before internal support | Include support space first |
| Assuming every formula needs a new dieline | Compare the physical package configuration |
| Measuring only one tube in a set | Size the completed arrangement |
| Using retail-carton dimensions for ecommerce shipping | Measure the completed order separately |
Mascara Measurement and Quote Checklist
Product Measurements
Mascara Format:
Standard / Tall Slim / Wide Cap / Square / Oval / Mini / Dual-Ended / Other
Complete Closed Height / Length:
____________________
Maximum Diameter:
____________________
Maximum Width:
____________________
Maximum Depth:
____________________
Cap Diameter / Width:
____________________
Collar Profile:
____________________
Base Footprint:
____________________
Decorative Projections:
____________________
Filled Weight:
____________________
Balance:
Balanced / Base-Heavy / Cap-Heavy / Unsure
Packaging Configuration
Orientation:
Upright / Horizontal / Other / Unsure
Products Per Box:
____________________
Internal Support Required:
Yes / No / Unsure
Additional Products:
____________________
Preferred Box Structure:
____________________
SKU and Quote Information
Number of Formulas / SKUs:
____________________
Same Physical Tube Across SKUs:
Yes / No / Unsure
Quantity Per SKU:
____________________
Intended Use:
Retail / Ecommerce / Set / PR / Other
Artwork Status:
Ready / In Progress / Not Started
Delivery Destination:
____________________
Instead of:
Need 500 mascara boxes.
provide:
The finished mascara measures 0.76 in at its maximum diameter and 4.42 in complete closed height. The cap is wider than the tube body, and the product will be packed upright as one unit per carton. No internal insert has yet been confirmed.
This provides useful product information without assuming that the final carton dimensions are already known.
From Mascara Measurements to the Final Dieline
Mascara product measurements are starting inputs, not the completed production dieline.
The development process is:
Complete Closed Mascara Measurements
→ Maximum Tube / Cap Profile Confirmed
→ Orientation and Internal Support Confirmed
→ Internal Carton Dimensions Developed
→ Material and Structure Applied
→ Dieline Prepared
→ Proof / Approval
A dieline can also contain:
- panels;
- folds;
- flaps;
- glue areas;
- closures;
- other structural elements.
Do not create a mascara-box dieline by simply adding an arbitrary amount to the tube dimensions.
For broader decisions about structures, materials, finishes and ordering, use the Mascara Packaging Guide after the product measurements have been confirmed.
Request Custom Mascara Box Pricing
A reliable mascara-box specification starts with the complete closed and sale-ready mascara product, not a generic reference dimension.
Use:
Complete Mascara Product → Maximum Exterior Profile → Orientation / Internal Support → Internal Carton Dimensions → Material + Structure → Dieline / Proof
BoxBaba supplies Custom Mascara Boxes for custom cosmetic packaging projects.
BoxBaba’s MOQ for custom cosmetic boxes starts from 100 boxes.
When requesting pricing, provide the complete closed mascara measurements, cap profile, filled weight, intended orientation, internal-support requirements, preferred structure if known, quantity per SKU and artwork status.
If the final carton dimensions are not yet known, provide the finished mascara product measurements rather than estimating an external box size.
Proofing or sample routes are confirmed during quotation. Production timing is project-specific after dimensions, structure, material, inserts, artwork, quantities, finishes and proofing requirements are approved. Shipping methods, charges and estimated transit times are confirmed according to the completed order, packing format, destination and selected service.
Measure the complete closed mascara—including the cap and widest exterior point—before developing the carton around it.
FAQs About Mascara Box Sizes and Dimensions
What is the standard mascara box size?
There is no universal production-ready mascara box size. Suppliers may publish reference dimensions, but the final carton should be developed around the complete closed mascara product, including its cap, collar and widest exterior point.
How do I measure a mascara tube for a custom box?
Measure the mascara in its complete closed and sale-ready condition. For a round product, record maximum diameter and complete closed height. For a non-round product, record width, depth and complete closed height.
Should I include the mascara wand when measuring box size?
Measure the closed mascara product with the cap/wand assembly installed. Do not add the removed wand length because the wand normally sits inside the tube while the product is packed.
What dimension controls mascara box width?
The widest point of the complete closed product controls the starting horizontal envelope. Depending on the format, this may be the tube body, cap, collar or decorative projection.
How do I measure square or oval mascara tubes?
For square or rectangular products, record width × depth × complete closed height. For oval tubes, record the major width, minor depth and complete closed height.
How should dual-ended mascara be measured?
Measure the complete closed length and both end profiles independently. Use the widest exterior point across End A, the central body and End B as the controlling horizontal measurement.
Is mini mascara packaging just a smaller version of a full-size box?
Not necessarily. Mini mascara can have different cap-to-body proportions and base geometry. Measure the mini product independently rather than scaling down a full-size carton.
Are mascara product dimensions the same as box dimensions?
No. Product dimensions describe the complete mascara package, internal box dimensions describe usable carton space, and external dimensions describe the finished outside carton.
Can multiple mascara formulas use the same box?
Yes, when they use the same physical tube, cap, dimensions, orientation and structural requirements. Different formulas or artwork versions do not automatically require a different physical dieline.
