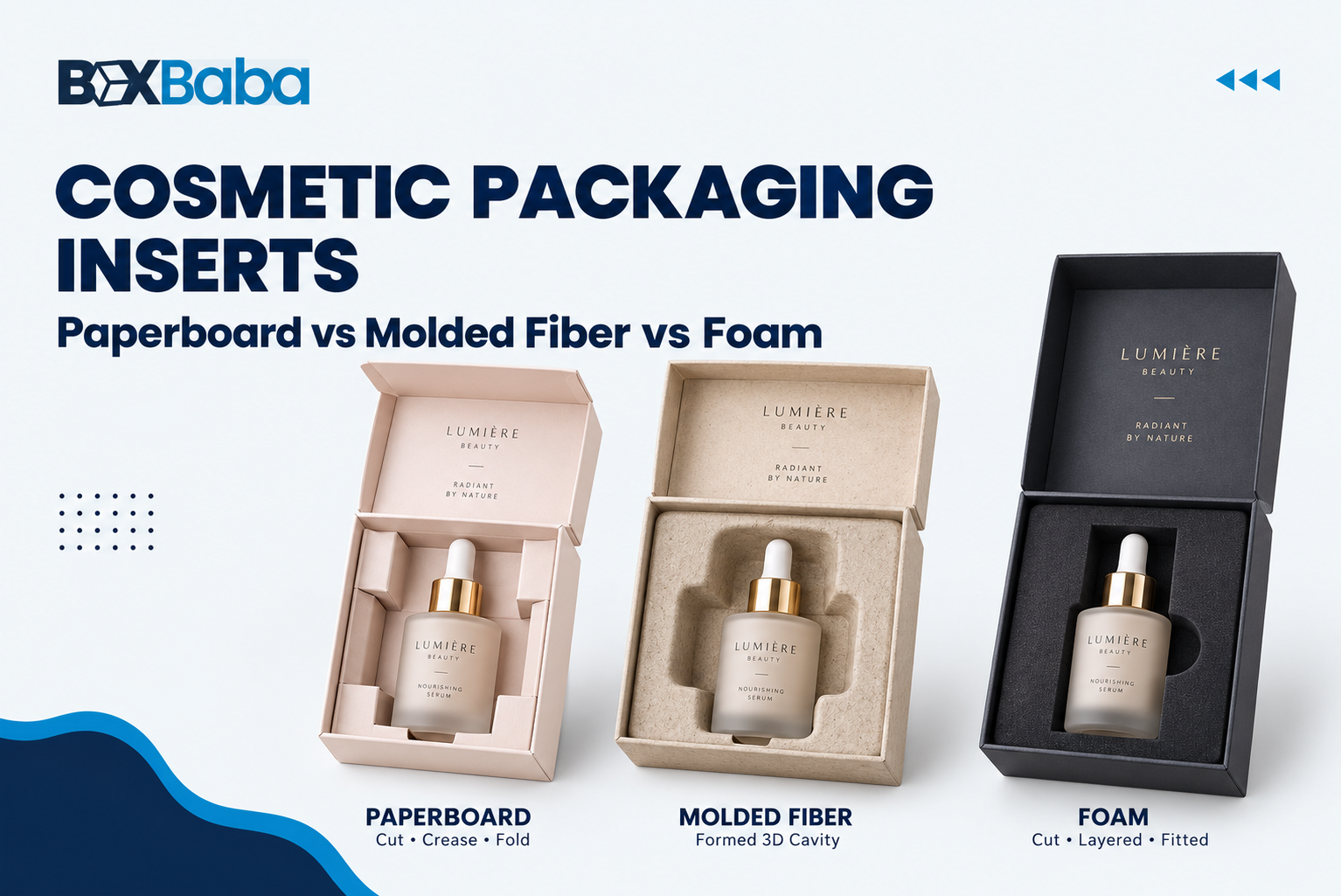

Paperboard, molded fiber and foam can all be used to create fitted cosmetic packaging inserts, but they do not solve the same problem in the same way. The right material depends on what the completed package must do, the geometry and weight of the finished cosmetic product, the required cavity shape, the outer box, the packing process and the proofing route.
The material should therefore be selected after the insert requirement is defined, not before.
Use this sequence: Finished Cosmetic Product -> Required Internal Function -> Product Geometry + Weight -> Contact / Removal Areas -> Insert Construction -> Material -> Cavity / Fit Review -> Outer Box Dimensions -> Dieline -> Artwork -> Approval
If you have not yet established whether a separate insert is needed, begin with When Do Cosmetic Boxes Need Inserts?. Once a fitted internal component has been identified, Printed Boxes with Inserts provides the related commercial packaging route.

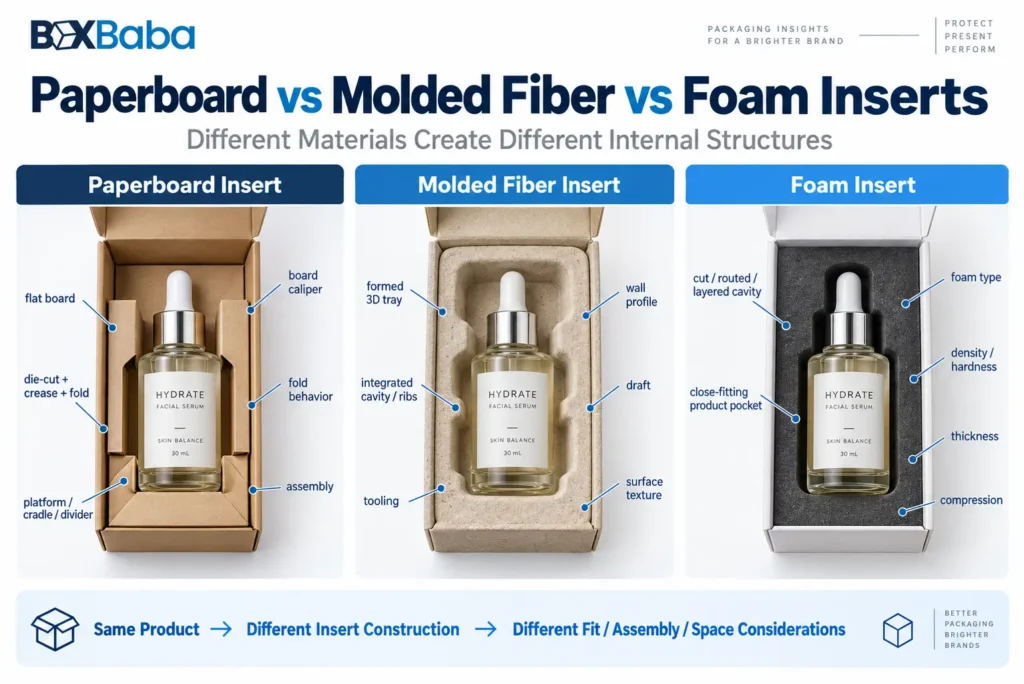

Paperboard vs Molded Fiber vs Foam: Quick Comparison
Insert Material | How the Shape Is Created | Typical Geometry | Often Considered For | Key Review |
|---|---|---|---|---|
Paperboard | Cut, crease and fold | Platforms, slots, collars, partitions, dividers, cradles | Lightweight to moderate retail/presentation configurations where folded geometry works | Fold design, board caliper, assembly, cavity access |
Molded fiber | Wet fiber is formed into a 3D part and dried / pressed according to process | Formed trays, cups, nests, ribs, contoured cavities | Projects needing a formed fiber component around defined 3D geometry | Tooling, draft, wall profile, surface finish, dimensional tolerance |
Foam | Sheet/block foam is cut, layered or machined to form cavities | Close-fitted pockets, layered cavities, presentation beds | Projects needing a thicker compliant or closely cut cavity | Foam type, density/hardness, thickness, compression, edge quality |
The First Question Is Not Which Material Is Best?
No insert material is universally best for cosmetic packaging. Paperboard may be ideal for one serum carton and unsuitable for a different fragrance presentation box. Molded fiber can create a three-dimensional tray but may be unnecessary for a simple lipstick carton. Foam can create a close-fitting cavity, but glass construction alone is not enough reason to specify it.
The correct question is: What internal packaging function remains unresolved, and which construction solves it with acceptable fit, assembly, space, appearance and project complexity?
Required Function -> Suitable Construction -> Suitable Material.

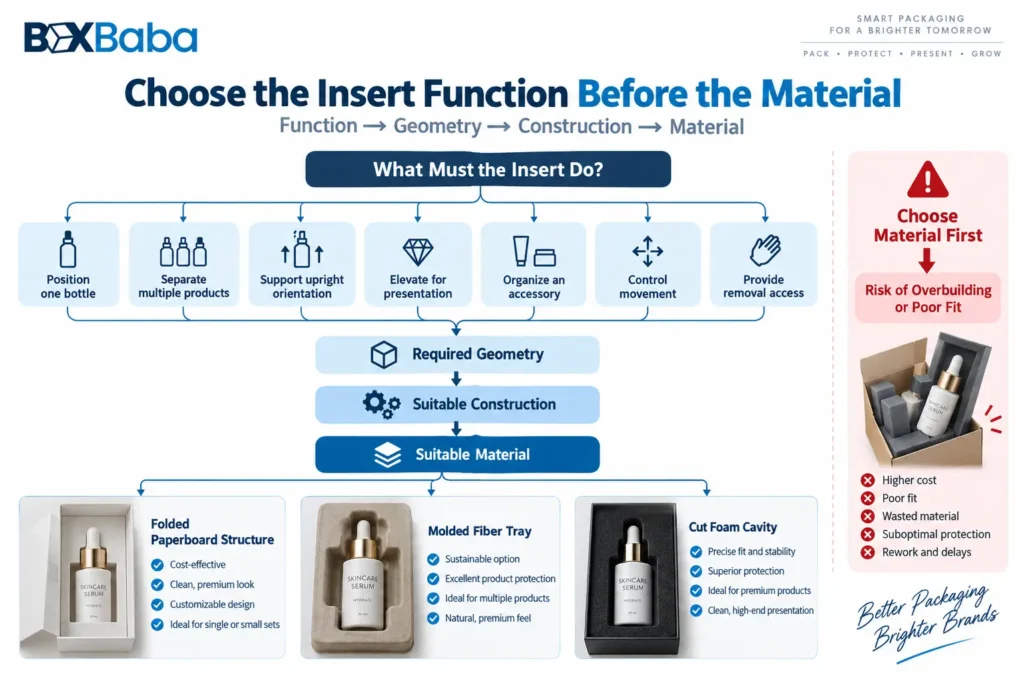

Start With the Required Internal Function
- Position one bottle, jar, tube, compact or palette in a defined location.
- Separate several cosmetic products in one set.
- Hold a product upright or at a planned presentation angle.
- Create a tiered or elevated presentation.
- Organize an accessory beside the primary product.
- Reduce excessive open space where movement would otherwise be uncontrolled.
- Create finger access or another planned removal method.
An insert should be selected because it solves one or more of these functions. Material preference comes after the function is defined.
Paperboard Cosmetic Inserts
Paperboard inserts are created from flat board that is die-cut, creased and folded into a structural component. The insert may form a platform, cradle, slot, collar, neck-and-base retainer, divider, partition, stepped presentation or another folded geometry.
Where Paperboard Works Well
- Single bottles, tubes, jars and compacts where folded supports can locate the product.
- Multi-product sets where dividers or partitions are sufficient.
- Presentation boxes where the insert needs to elevate or frame products.
- Projects where the insert is intentionally visible and may need printing or coordinated paper-based appearance.
- SKU families where small dimensional changes can sometimes be handled through dieline changes rather than a completely different forming process.
Paperboard Strengths
Paperboard provides strong structural flexibility because slots, folds, tabs, platforms and retaining features can be combined in one flat-cut component. It can also be printed where visible, and the insert design can visually coordinate with the outer carton.
Because the structure begins as a flat sheet, the final geometry is created through folding and assembly rather than through a molded three-dimensional cavity.
Paperboard Limitations to Review
Paperboard is not automatically a cushioning material. It can position, separate and support products, but the distribution performance of the completed package depends on the full system.
Folded walls and platforms also consume internal space. A design that looks efficient in a flat dieline can become bulky once folded. Complex paperboard inserts can add assembly steps and can become difficult to load consistently if the product catches on tabs or narrow openings.
Board caliper, grain direction, crease behavior, folded thickness and the chosen outer structure should therefore be considered during structural development.
Common Paperboard Insert Constructions
Paperboard Construction | Main Function | Example Use |
|---|---|---|
Die-cut platform | Raises and centers a product | Bottle, jar, compact, small device |
Folded cradle | Supports a product across defined contact areas | Round or irregular container |
Neck-and-base retainer | Controls tall bottle position at two levels | Serum, fragrance, pump bottle |
Divider / partition | Separates products without individual formed cavities | Multi-product skincare or makeup set |
Stepped / tiered insert | Presents products at different heights | Gift, PR or launch set |
Slot / tab holder | Locates narrow products using cut features | Lipstick, mascara, cosmetic pens |
Molded Fiber Cosmetic Inserts
Molded fiber inserts are formed into three-dimensional shapes from a fiber slurry using tooling and a forming process. Depending on the molded-fiber process, the finished part can range from a more textured formed surface to a smoother, more detailed pressed component.
That three-dimensional forming method makes molded fiber different from folded paperboard. The cavity and supporting ribs are formed directly into the part rather than created primarily through folds.
Where Molded Fiber Works Well
- Products that benefit from a formed tray or nest rather than a folded platform.
- Multi-product sets where several defined pockets need to be integrated into one fiber component.
- Projects where a fiber-based formed appearance is part of the intended presentation.
- Containers with geometry that can be accommodated through appropriate molded radii, draft and wall design.
Molded Fiber Strengths
Molded fiber can create integrated three-dimensional cavities, ribs, walls and product nests in one formed component. This can simplify some internal layouts that would otherwise require several paperboard folds or layered pieces.
It can also create a visually distinct material language for beauty brands that want the insert to look intentionally fiber-based. However, appearance and environmental claims should be based on the actual fiber formulation, additives, coatings, sourcing documentation and recovery conditions rather than on the phrase molded fiber alone.
Molded Fiber Limitations to Review
Molded fiber is a tooling-dependent formed component. Product geometry should be evaluated for practical draft, radii, wall transitions and release from the forming tool. Very sharp, undercut or highly detailed features may require a different design approach or manufacturing process.
Surface texture, edge definition and dimensional precision vary by the selected molded-fiber process. The insert should therefore be sampled and reviewed against representative finished products rather than approved from a simple cavity drawing alone.
The formed part also occupies three-dimensional storage and shipping volume unless the design can nest efficiently.
Molded Fiber Is Not One Single Finish or Process
The term molded fiber covers more than one manufacturing approach. Different forming and pressing methods can produce different wall thicknesses, surface quality, detail and dimensional stability.
For a cosmetic project, ask the supplier which process is being quoted and review the actual proposed surface, cavity detail, tooling route and sample rather than assuming every molded-fiber insert will look or fit the same.
Foam Cosmetic Inserts
Foam inserts are commonly made from materials such as EVA, PE, PU or other foam systems. They can be die-cut, CNC-cut, routed, layered or otherwise converted into fitted cavities.
Foam should be treated as a material family rather than one universal specification.
Where Foam Works Well
- Presentation packages where a close-fitting cavity and thicker interior bed are desired.
- Irregular items that can be accommodated by a cut or layered cavity.
- Multi-product layouts where several cavities are cut into one foam block or sheet system.
- Projects where compliant support or cushioning behavior is part of the required packaging function and is validated for the complete package.
Foam Strengths
Foam can create deep, closely cut product pockets with visually clean cavity edges when the material and cutting method are compatible. Layering can also create stepped cavity depths for products with different profiles.
Because foam can compress, it may also provide a different retention feel from paperboard or molded fiber. The appropriate level of compression depends on the foam type, density, hardness, thickness, cavity geometry and the cosmetic product surface.
Foam Limitations to Review
A tight foam cavity is not automatically a good cavity. Excessive compression can make product removal difficult, mark sensitive surfaces or place pressure on pumps, caps, droppers or decorative finishes.
Foam also adds material thickness and can significantly increase the internal depth of a presentation box. Different foam types and densities can behave differently during cutting, compression and repeated handling, so 20 mm foam is not a complete material specification.
Where sustainability or material-recovery goals are important, the exact foam type and complete package construction should be reviewed rather than making generic claims.
EVA, PE and PU Foam Are Not Interchangeable Labels
Different foam families can vary in cell structure, stiffness, compression behavior, surface feel and cutting characteristics. Even within one foam family, density, hardness and thickness can materially change the cavity performance.
A useful quote therefore identifies the proposed foam material and relevant physical specification rather than stating only foam insert.
Paperboard vs Molded Fiber vs Foam: Decision Matrix
Decision Area | Paperboard | Molded Fiber | Foam |
|---|---|---|---|
Insert geometry | Folded 2D-to-3D structures | Formed 3D cavity / tray | Cut / layered cavity |
Fine product contour | Possible through tabs, slots and multi-level folds | Depends on molded process, draft and tooling | Can follow cut profile closely; depth built by thickness/layers |
Cushioning behavior | Limited unless geometry is engineered for it | Depends on formed design and complete system | Depends strongly on foam type, density, thickness and compression |
Visible / printable surface | Can be printed where required | Surface printing/finishing is process-dependent | Usually treated as a material surface; branding may use separate layers or components |
Tooling / setup | Cutting/creasing tooling or digital conversion route | Forming tooling is central to the part | Cutting/programming/dies depend on process |
Assembly | May require folding / locking | Usually arrives as a formed component | Usually arrives as a cut/layered component |
Storage volume | Can be efficient if shipped flat before forming | Formed parts occupy volume; nesting depends on design | Thicker blocks/sheets occupy volume |
SKU flexibility | Dieline can sometimes be revised efficiently | New geometry may require tooling review | Cavity file / tooling may need revision |
Environmental claims | Verify board, coatings, adhesives and local recovery | Verify fiber composition, additives, coatings and local recovery | Verify exact foam type and recovery route; avoid generic claims |
Product Geometry Can Eliminate a Material Before Cost Is Compared
A material comparison should begin with geometry. Some products can be retained cleanly by a paperboard neck-and-base structure. Others may benefit from a formed tray. Others may require a deep cut cavity.
If the selected material cannot create the required product contact, removal and cavity geometry efficiently, comparing unit prices is premature.
Loaded Weight Is an Input, Not a Material Shortcut
A heavier cosmetic bottle or jar may change the insert construction, board grade, wall design or outer box, but weight alone does not dictate foam, molded fiber or paperboard.
Use: Product Geometry + Loaded Weight + Orientation + Contact Areas + Outer Structure + Distribution / Presentation Requirement -> Insert Construction.
A heavy glass jar in a rigid presentation box may use one solution, while a tall glass bottle in a folding carton may require another.
Glass Does Not Automatically Require Foam
Glass packaging deserves careful review because filled weight, base geometry and breakage consequence can be important, but glass is not an insert material specification.
A glass bottle can use paperboard, molded fiber, foam, integrated structural support or another solution depending on the full package.
Where distribution performance is important, the completed package should be evaluated separately. Choosing foam by category alone is not a substitute for package-level testing.

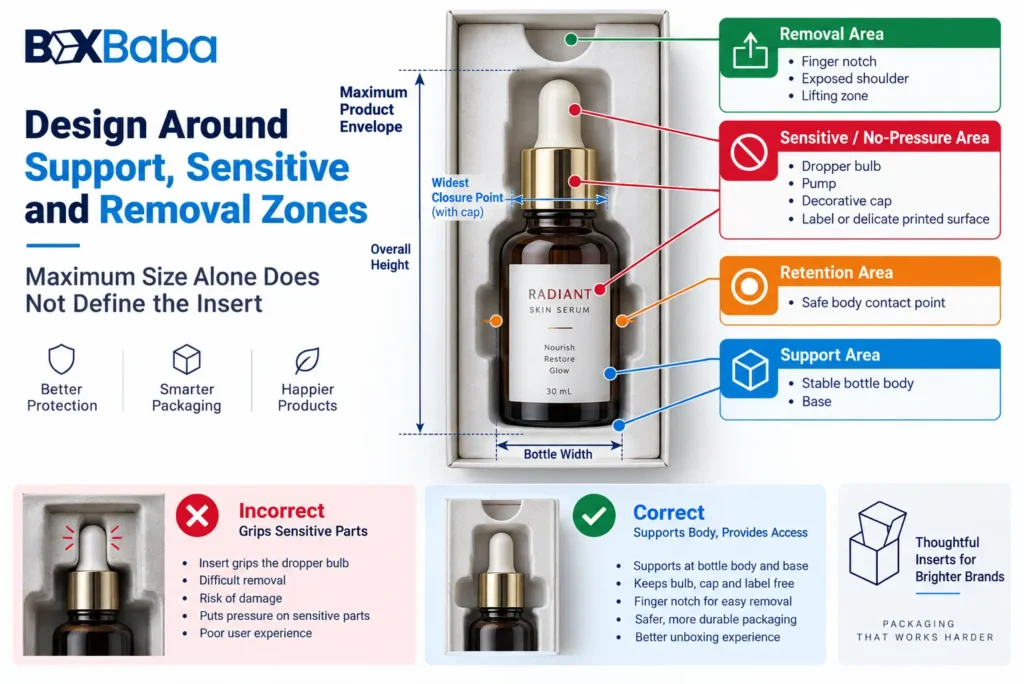

Contact Areas Matter More Than the Maximum Envelope Alone
The maximum product envelope tells the designer how much space the product occupies. It does not automatically identify the best retention surface.
A serum bottle may be widest at the dropper bulb but should not be held by concentrated pressure on the bulb. A perfume bottle may have delicate decoration on one side. A jar lid may overhang beyond the preferred base support zone.
Contact Zone | Purpose |
|---|---|
Support area | Surface suitable for carrying or locating the product |
Retention area | Surface used to control position |
Sensitive / no-pressure area | Decoration, pump, dropper, hinge or surface where concentrated pressure is undesirable |
Removal area | Finger access, notch, ribbon or lifting zone |
Removal Access Changes the Insert Design
A cavity can hold a product accurately and still create a poor user experience if the item cannot be removed easily.
Paperboard may use finger notches, exposed shoulders or pull features. Molded fiber may use scoops, relief areas or open sides. Foam may use finger cutouts, chamfers or pull ribbons.
The appropriate method depends on the product and should be included in the structural specification before the outer box is finalized.

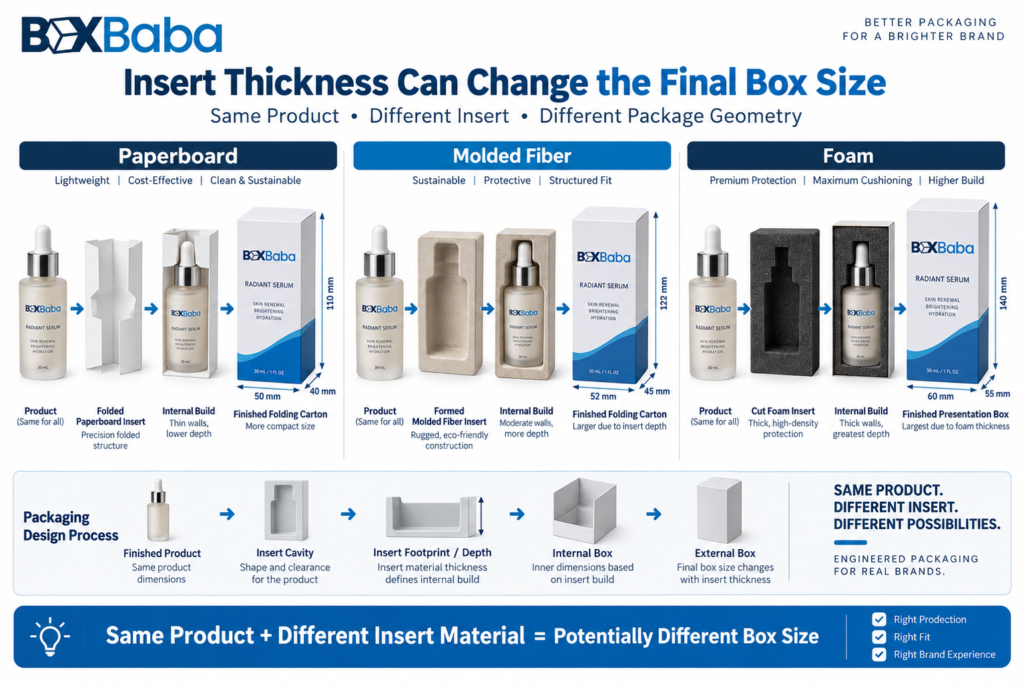

Insert Thickness Changes the Outer Box
Insert material consumes internal volume. Foam thickness, molded-fiber wall depth and folded paperboard platforms can all change the required box dimensions.
Finished Product -> Insert Cavity -> Completed Insert Footprint / Depth -> Internal Box Dimensions -> External Box Dimensions.
Two insert materials around the same product can therefore produce different outer box sizes.
Pack-Out and Assembly Should Be Compared
Material selection affects how the package is assembled in production.
Material | Typical Pack-Out Characteristic | What to Review |
|---|---|---|
Paperboard | May require folding, locking, gluing or pre-forming before product loading | Too many folds or unclear loading direction |
Molded fiber | Usually loaded as a preformed tray / cavity | Incorrect orientation, tight cavities, poor nesting / handling |
Foam | Usually placed as cut sheets, blocks or layered assemblies | Loose layer registration, excessive compression, difficult product removal |
Good product fit does not automatically mean efficient pack-out. A material that creates a beautiful prototype may still be inefficient if assembly requires repeated manual adjustment.
Multi-Product Sets Need a Complete Arrangement First
For a skincare, makeup or fragrance set, do not select the material before the complete product arrangement is planned.
Use: Every Product Dimension -> Orientation -> Arrangement -> Spacing / Separation -> Contact Areas -> Removal Sequence -> Insert Geometry -> Material.
A paperboard divider may be enough for a simple set. A molded-fiber tray may suit a formed multi-cavity layout. Foam may suit a deeper cut-cavity presentation. The decision is driven by the completed arrangement.
SKU Standardization Can Influence Insert Material
A beauty brand may want several SKUs to share one outer box and insert. This is only practical when the physical product geometry and required support remain compatible.
Paperboard can sometimes accommodate small variations through folded clearances or alternate cut patterns. Molded fiber and foam can also support SKU families, but each cavity geometry should be reviewed rather than assumed.
Same Fill Volume != Same Insert Cavity.
Paperboard, Molded Fiber and Foam Have Different Proofing Priorities
Material | What the Sample Should Validate | Useful Review Route |
|---|---|---|
Paperboard | Fold sequence, slot/tab engagement, cavity fit, board spring-back, pack-out and removal | Blank structural sample / product-fit review |
Molded fiber | Formed geometry, surface, wall profile, cavity tolerance, product seating, nesting and removal | Representative molded sample / fit review |
Foam | Material type, density/hardness, cavity edge, compression, depth, surface contact and removal | Representative foam sample / fit review |
For the broader proofing hierarchy, see Cosmetic Packaging Samples and Proofing.
Fit Review Is Not the Same as Distribution Testing
A physical insert sample can confirm whether the product seats properly, whether the cavity is too tight or loose, whether the insert loads correctly and whether removal works.
That does not automatically verify performance through a shipping or distribution environment. If transportation performance matters, the completed package should be evaluated under an appropriate project-specific method.
Good Insert Fit != Verified Distribution Performance.
Retail Insert vs Ecommerce Shipping System
A retail or presentation insert and an ecommerce outer package are different layers.
Retail: Finished Cosmetic Product -> Retail Box + Insert Where Needed. Ecommerce: Completed Retail Package(s) -> Outer Mailer / Shipping Carton.
A foam, molded-fiber or paperboard insert inside the retail box should not automatically be treated as sufficient shipping protection for the completed ecommerce order.
For the channel distinction, see Retail vs Ecommerce Cosmetic Packaging.
Environmental Claims Need Material-Specific Evidence
Material names alone are not enough to support environmental claims. Paperboard can include coatings, laminations or adhesives. Molded fiber can contain different fiber sources, additives or surface treatments. Foam can use different polymer families and densities.
Before using terms such as recyclable, recycled, biodegradable, compostable or plastic-free, verify the exact specification, the complete component construction, supplier documentation and the intended recovery system.
For a broader outer-material discussion and claim cautions, review Best Materials for Custom Cosmetic Boxes.
Cost Should Be Compared as a Complete System
Insert cost is not only the raw material cost. The complete comparison can include structural design, tooling, cutting or forming, assembly, storage volume, pack-out time, outer box size, sampling and SKU variation.
Cost Layer | Why It Matters |
|---|---|
Material / component | Board, molded fiber or foam itself |
Tooling / setup | Cutting dies, forming tools, CNC/programming or other setup |
Assembly | Folding, gluing, layering or loading steps |
Outer box impact | Insert thickness may increase box dimensions |
Storage / freight | Flat vs formed vs thick components occupy different volume |
SKU changes | New cavities or geometry changes may require new files/tooling |
Proofing | Representative sample route for fit and material review |
The lowest insert unit price can still produce a more expensive complete package if it enlarges the box, adds assembly time or requires repeated structural versions.
Worked Example: Lightweight Serum Bottle
Consider a lightweight cylindrical serum bottle in a folding carton. The package needs the bottle centered and upright, but no elaborate presentation cavity is required.
A folded paperboard neck-and-base retainer may solve the requirement with relatively little material depth. A molded-fiber tray or thick foam block could also be designed, but they may add unnecessary volume or complexity if the paperboard structure already meets the functional requirement.
The point is not that paperboard is always better. It is that the simplest material that solves the actual function deserves evaluation first.
Worked Example: Multi-Product Skincare Gift Set
Consider a gift set containing a serum bottle, cream jar and facial oil bottle in one rigid presentation box.
The insert needs three defined positions, consistent product heights and practical removal access. Paperboard could use a multi-level folded platform, molded fiber could form three integrated cavities, and foam could use three cut pockets.
The material decision should compare finished geometry, visible presentation, pack-out, box depth, product surfaces, tooling, sample results and the desired material system rather than choosing from product category alone.
Worked Example: Heavy Decorative Fragrance Bottle
Consider a decorative glass fragrance bottle with a heavy base and an ornate cap. The package requires a centered presentation and clear access to lift the bottle.
A paperboard cradle may be feasible if suitable support areas can be created. Molded fiber may create a formed nest. Foam may create a deeper fitted cavity. The correct route depends on the bottle geometry, loaded weight, preferred contact zones, removal method, outer structure and any distribution-performance requirement.
Common Insert Material Selection Mistakes
Mistake | Why It Creates Risk | Better Direction |
|---|---|---|
Choosing material before defining the function | Material preference drives the design instead of the packaging requirement | Define positioning / separation / presentation first |
Assuming glass requires foam | Product category does not determine material | Review geometry, weight, structure and performance need |
Calling paperboard a cushioning system by default | Positioning and cushioning are different functions | Validate the complete package |
Calling molded fiber automatically sustainable | Composition, additives and recovery context vary | Verify the actual specification |
Calling all foam the same | Type, density, hardness and thickness change behavior | Specify the exact foam system |
Using the maximum product point as the contact point | Sensitive closure or decoration may be stressed | Map support and no-pressure zones |
Ignoring removal access | A fitted cavity can trap the product | Design finger / pull access |
Ignoring insert thickness | Outer box may become larger | Develop insert before final box dimensions |
Comparing unit price only | Tooling, assembly and volume can dominate total cost | Compare the complete packaging system |
Approving from drawings only | Material behavior and cavity fit may differ physically | Use an appropriate sample / fit review |
Assuming fit proves shipping performance | Different validation question | Separate fit review from distribution testing |
Ignoring SKU variation | One cavity may not fit all physical variants | Confirm each structural version |
Cosmetic Insert Material Quote Checklist
- Finished cosmetic product type and complete external dimensions.
- Representative production or production-equivalent product where available.
- Filled product weight and orientation.
- Number of products and accessories per box.
- Required internal function: positioning, separation, support, organization, elevation or presentation.
- Preferred support/contact areas and surfaces to avoid.
- Removal direction and finger/pull access requirement.
- Outer box structure and internal dimensions if already established.
- Paperboard, molded fiber or foam preference if there is a documented project reason.
- For paperboard: visible printing, divider, platform, cradle or neck/base preference if known.
- For molded fiber: expected surface appearance, tooling status, formed depth and product-nest requirement.
- For foam: foam type, density/hardness, thickness, color or surface treatment if already specified.
- Retail, gift, PR, ecommerce or mixed use.
- Quantity by SKU / insert version.
- Artwork and dieline status.
- Sustainability or material-recovery claims that require supporting documentation.
- Sample / proof acceptance criteria for fit, assembly, appearance and removal.
How to Choose Between Paperboard, Molded Fiber and Foam
- Confirm That a Separate Insert Is Actually Needed
- Measure the Complete Finished Product
- Define the Required Internal Function
- Map Support, Retention, Sensitive and Removal Areas
- Develop the Required Insert Geometry
- Compare Suitable Material Constructions
- Review Material Thickness and Outer Box Impact
- Review Assembly / Pack-Out
- Review Tooling and SKU Variation
- Review Environmental Claims Against Documentation
- Approve the Appropriate Physical Sample
- Finalize Outer Box Dimensions and Dieline
Brands that already know a fitted internal component is required can review Printed Boxes with Inserts. Brands still deciding the wider cosmetic packaging system can start from Custom Cosmetic Boxes.
Frequently Asked Questions About Cosmetic Insert Materials
Is paperboard better than foam for cosmetic inserts?
Neither is universally better. Paperboard creates folded structural supports, while foam creates cut or layered cavities with different compression behavior. The correct choice depends on the required function, product geometry, weight, outer box and proofing results.
Is molded fiber better than paperboard for cosmetic packaging?
It depends on the required geometry. Molded fiber can create integrated three-dimensional cavities, while paperboard can create platforms, cradles, dividers and retaining features through folds and die cuts. Compare the actual product and package rather than the material names alone.
Do glass cosmetic bottles need foam inserts?
No. Glass does not automatically require foam. Paperboard, molded fiber, foam, integrated carton support or another structure may be suitable depending on the bottle geometry, loaded weight, orientation, presentation and complete packaging requirement.
What is a paperboard cosmetic insert?
It is a die-cut and folded paperboard component used to position, separate, elevate or organize cosmetic products inside an outer box.
What is a molded fiber cosmetic insert?
It is a three-dimensional fiber-based component formed with tooling to create product cavities, ribs, walls or trays around a defined packaging geometry.
What is a foam cosmetic insert?
It is an internal component made from a foam material such as EVA, PE, PU or another foam system. Cavities can be cut, machined or layered to fit a product layout.
Is all EVA foam the same?
No. Density, hardness, thickness, cell structure, surface treatment and cutting method can affect the finished cavity and product interaction.
Can paperboard inserts be printed?
Yes, where the insert construction and project specification support printing. This can be useful when the insert remains visible as part of the presentation.
Does molded fiber require tooling?
Molded fiber is a formed component and tooling is central to creating its three-dimensional geometry. The exact tooling route depends on the molded-fiber process and supplier.
Can molded fiber hold cosmetic bottles accurately?
It can be designed around defined cosmetic product geometry, but the final cavity, surface, tolerances and product fit should be reviewed with the actual proposed molded-fiber process and representative samples.
Does foam automatically provide shipping protection?
No. Foam can provide cushioning behavior depending on its type, density, thickness and design, but verified distribution performance belongs to the completed packaging system and requires separate evaluation where applicable.
Which insert material takes the least space?
There is no universal answer. A simple folded paperboard retainer may be shallow, while a complex folded platform may consume substantial depth. Molded fiber and foam also vary by wall or material thickness. Compare the completed insert geometry.
Which cosmetic insert material is most sustainable?
Do not select a winner from the material name alone. Review the exact material composition, coatings, adhesives, recycled content where documented, manufacturing route, component separability and the relevant local recovery system.
Should the insert be designed before the outer box?
Where the insert affects the required internal space, its completed geometry should be established before the final internal and external box dimensions are approved.
Should I approve a physical sample?
A physical sample is especially useful when fit, material behavior, cavity geometry, assembly, product contact or removal cannot be validated reliably from a digital proof alone.
