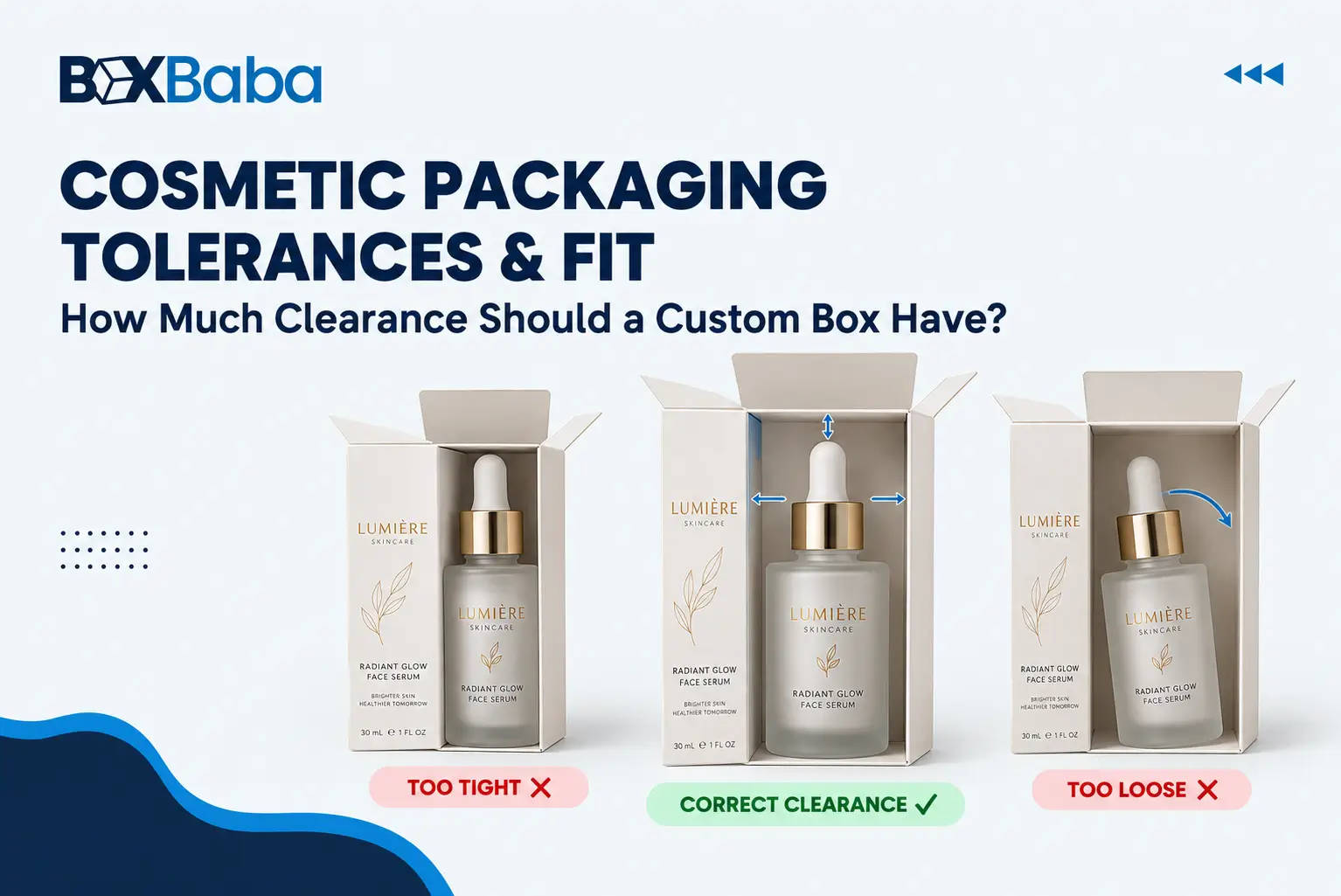

A custom cosmetic box needs enough internal space for the finished product to be packed, closed and removed as intended, but enough is not one universal number. The correct clearance depends on the product geometry, dimensional variation, closure, material, box structure, insert, loading method and removal requirement.
The most important distinction is that clearance and tolerance are not the same thing. Clearance is intentional free space. Tolerance is the allowed variation around a specified dimension. A package can have a sensible nominal clearance and still become too tight or too loose if the product and package vary in opposite directions.
Use this fit sequence: Finished Product Specification -> Product Variation -> Desired Working Clearance -> Insert / Cavity Variation -> Carton Variation -> Loading + Removal -> Physical Fit Review -> Approved Production Specification
If you still need the basic measurement method, begin with the Cosmetic Box Size Guide. For overall structure selection, use How to Choose Cosmetic Packaging Boxes.
What Is Clearance in Cosmetic Packaging?
Clearance is the intentional space between the finished cosmetic product and the surrounding carton, insert or cavity. It is created so the product can be loaded, positioned and removed without forcing the package.
Clearance may exist on one axis, several axes or around a shaped cavity. It can also be asymmetric. A product may need more space at the loading end than along a side panel, or more relief around a pump than around the bottle body.
Conceptually: Product Dimension + Designed Clearance -> Nominal Internal Cavity Dimension.
What Is Tolerance?
Tolerance is the permitted variation around a nominal dimension or feature. The finished product, paperboard, die-cut blank, crease position, folded carton, insert and other components can each have their own allowable variation.
A product specified at one nominal diameter may have an approved minimum and maximum diameter. A carton cavity specified at one nominal width may also vary within an agreed production range. Fit must work across the acceptable ranges, not only at the nominal values.
Nominal Dimension != Every Actual Production Dimension.

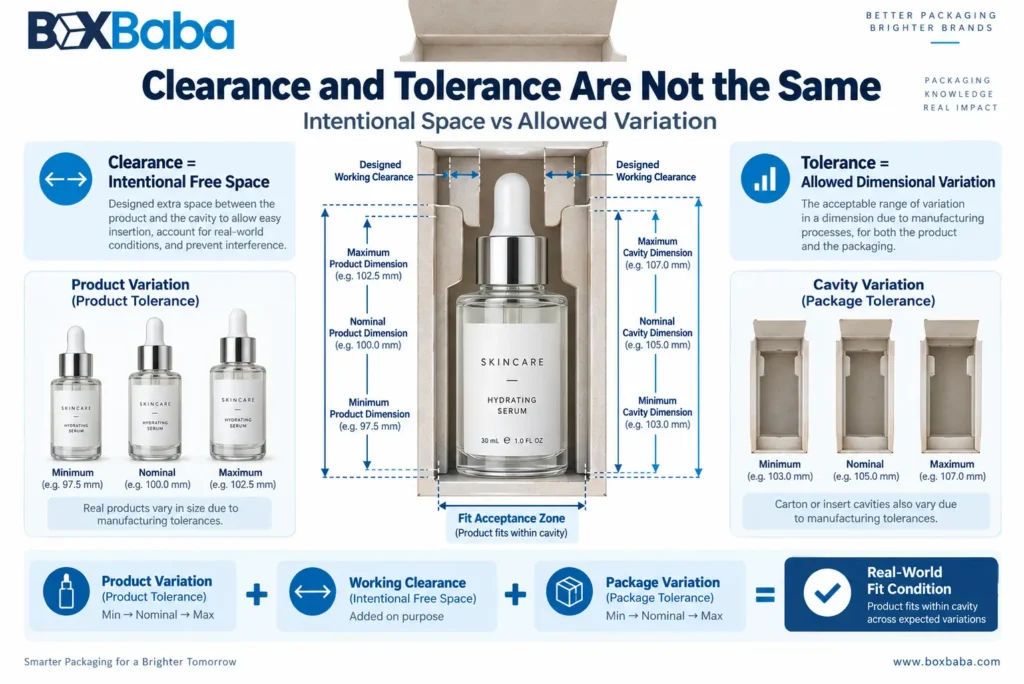

Clearance vs Tolerance: The Difference
Term | Meaning | Example Question |
|---|---|---|
Product dimension | The specified size of the finished cosmetic product | What is the maximum finished bottle width? |
Product tolerance / variation | How much acceptable product size can vary | Can the cap be slightly wider or taller across production? |
Working clearance | Intentional free space designed into the package | How much room is needed for loading and removal? |
Package tolerance / variation | How much the insert or carton can vary from nominal | What is the approved formed-cavity range? |
Fit acceptance | The functional result across the approved ranges | Can the product load, close, remain positioned and be removed. |
Why One Universal Clearance Number Does Not Work
A fixed clearance can appear simple, but cosmetic products do not share one geometry or one packing process. A square lipstick case, round serum bottle, flexible squeeze tube, cream jar, hinged compact and decorative fragrance bottle create different fit conditions.
- Rigid versus flexible product geometry
- Round, rectangular, tapered or irregular cross-section
- Cap, pump, dropper, hinge, clasp or applicator projection
- Product manufacturing variation
- Board thickness and carton structure
- Direct fit versus fitted insert
- Manual versus automated loading
- Customer removal method
- Window or label alignment requirement
- Sensitive decorated or no-pressure surfaces
The correct clearance is therefore a project-specific structural value developed around the complete package rather than a percentage added automatically to every cosmetic product.
Start With the Finished Product Specification, Not One Random Sample
A physical sample is useful, but one sample may sit near the middle, minimum or maximum of the container suppliers production range. When fit is sensitive, ask for the approved product drawing or relevant dimensional tolerance in addition to measuring representative units.
This is particularly important for molded glass bottles, pumps, droppers, lipstick mechanisms, compact housings, decorative closures and products sourced from more than one supplier.
One Sample Measurement != Guaranteed Maximum Production Geometry.
Measure the Maximum Finished Envelope
Before clearance is discussed, confirm the products maximum external profile in the exact state in which it will enter the package. Include the installed cap, lid, pump, dropper, wand, collar, hinge, clasp, decorative overhang, label or sleeve where it changes the physical envelope.
Do not use fill capacity or nominal container size as a substitute for actual external geometry.
Use Maximum Product Size for the Tight-Fit Check
The tightest production condition occurs when the product is at the large end of its approved dimensional range while the available cavity is at the small end of its approved range.
For one axis, the logic is: Minimum Available Clearance = Minimum Acceptable Cavity Dimension – Maximum Acceptable Product Dimension.
This relationship should remain functionally acceptable for the chosen loading, closure and removal method. A positive numerical gap alone does not prove that the package is easy to assemble or use.
Use Minimum Product Size for the Loose-Fit Check
The loosest production condition occurs when the product is at the small end of its approved range while the cavity is at the large end of its approved range.
Conceptually: Maximum Possible Clearance = Maximum Acceptable Cavity Dimension – Minimum Acceptable Product Dimension.
This condition helps reveal whether the product can rotate, shift, lose window alignment or sit inconsistently inside a fitted presentation.

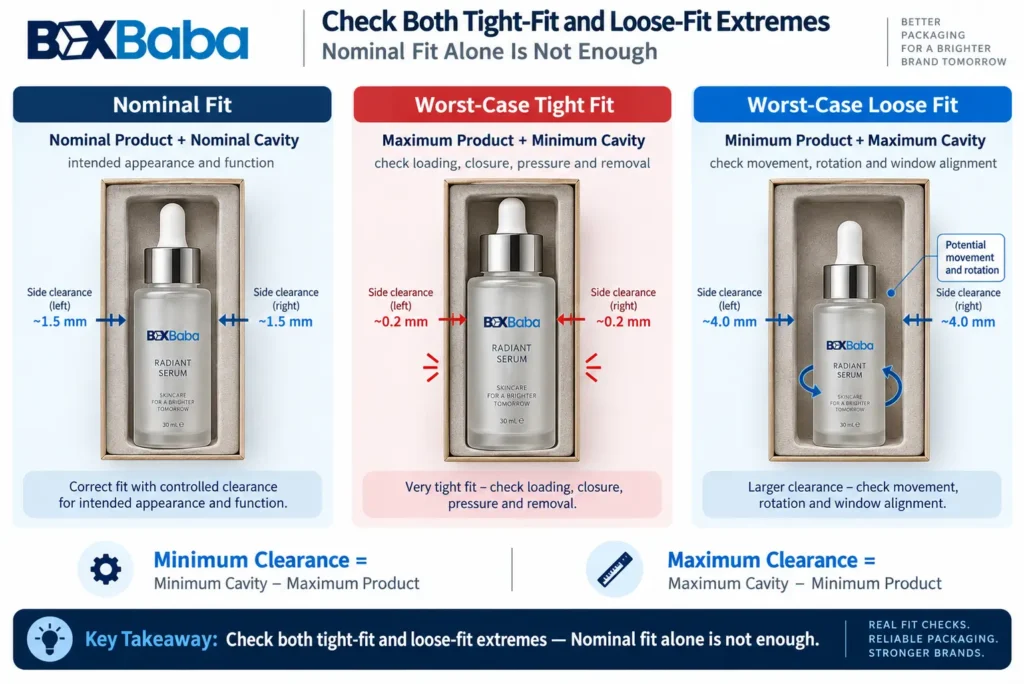

Nominal Fit Is Not Enough: Review Both Extremes
Fit Condition | Product | Cavity / Box | Question |
|---|---|---|---|
Nominal fit | Nominal product | Nominal cavity | Does the intended design look and function correctly? |
Worst-case tight fit | Maximum acceptable product | Minimum acceptable cavity | Can it still load, close and be removed without forcing? |
Worst-case loose fit | Minimum acceptable product | Maximum acceptable cavity | Is movement, rotation or misalignment still acceptable? |

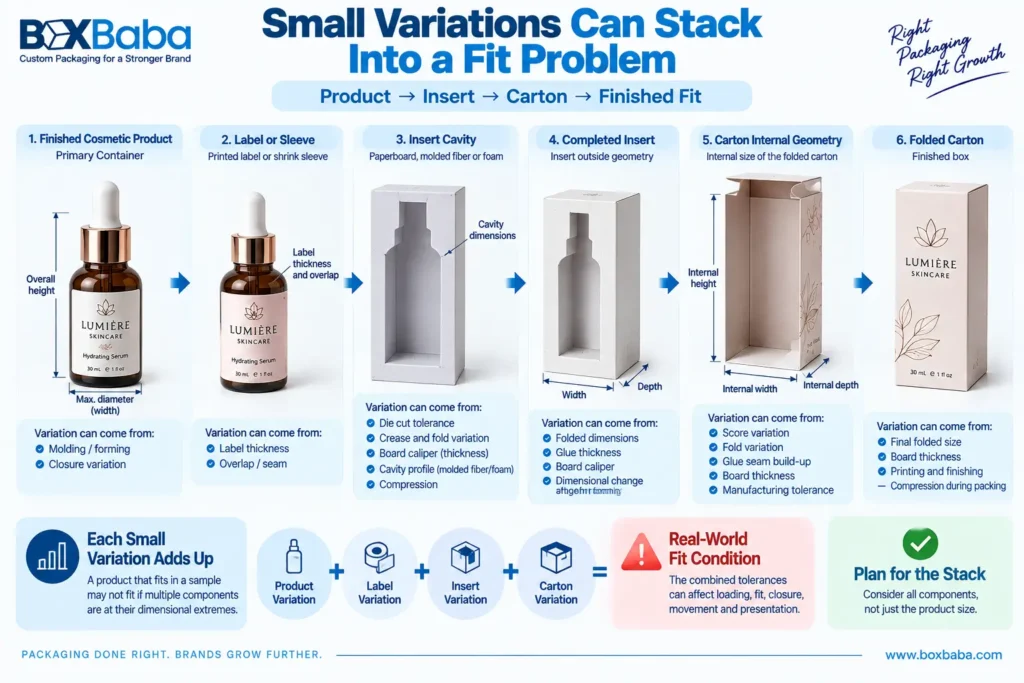

What Is a Tolerance Stack?
A tolerance stack is the combined effect of variation from several nested components. In cosmetic packaging, the product can vary, the insert cavity can vary, the insert itself can vary, and the formed carton can vary. These variations can accumulate in the same direction.
Finished Product -> Insert Cavity -> Insert Outside Geometry -> Carton Internal Geometry -> Folded Carton.
The more tightly nested the system, the more important it becomes to identify which dimensions are critical and which ranges must be agreed before production.
Tolerance Contributors in a Cosmetic Packaging System
Component | Possible Source of Variation | Why It Matters |
|---|---|---|
Primary container | Molding, forming, filling, closure supplier, assembly | Changes maximum product envelope |
Label / sleeve / decoration | Material thickness, overlap, placement, raised feature | Can change local width or contact surface |
Paperboard insert | Die cut, crease, fold, board caliper, assembly | Changes cavity and outside insert size |
Molded-fiber insert | Forming process, wall profile, tooling, moisture / conditioning | Changes cavity seating and fit |
Foam insert | Material type, density/hardness, cutting and compression | Changes cavity grip and removal force |
Folding carton | Die cut, score, board caliper, fold / glue relationship | Changes erected internal dimensions |
Rigid box / tray | Board build, wrap, assembly and lid/tray relationship | Affects close-fitting component geometry |
Board Thickness Affects Internal and External Relationships
Internal and external box dimensions are not interchangeable. Board caliper, folds, scores, wrap layers and structural construction influence the relationship between usable internal space and the outside size of the package.
If the material changes after a fit has been approved, the structural relationship should be reviewed rather than assuming the old internal fit remains identical.
For outer-material selection and board context, review Best Materials for Custom Cosmetic Boxes.
Direct-Fit Cartons and Inserted Boxes Need Different Clearance Logic
In a direct-fit carton, the product interacts primarily with the cartons internal panels and opening. In an inserted box, there are at least two fit relationships: product to insert cavity, and completed insert to outer box.
Product -> Cavity Clearance. Insert -> Outer Box Clearance.
These relationships should be designed separately. Making the product cavity looser does not automatically solve an insert that is too large for the box.
If you are still deciding whether a separate internal component is needed, use When Do Cosmetic Boxes Need Inserts?.
Paperboard Insert Tolerance and Fit
Paperboard insert cavities are created through die cuts, slots, creases, folded walls, platforms and retaining features. The finished fit depends on the board caliper, fold sequence, slot engagement and how consistently the insert is assembled.
A cavity drawn at the exact nominal product size can become too tight if several folded panels stack into the available space. Physical sampling is especially useful for folded retainers, neck-and-base holders and multi-level platforms.
Molded Fiber and Foam Have Their Own Variation
Molded-fiber cavities are formed three-dimensionally and should be reviewed against the actual proposed process, tooling and representative samples. Foam fit depends on material type, density or hardness, thickness, cutting method and the amount of intended compression.
A nominal-zero cavity is not automatically appropriate for either material. The product must load and remove as intended without excessive pressure on closures, labels or decorative surfaces.
Loading Direction Changes the Required Clearance
A product does not only need to fit once it is inside the package. It must travel through the opening and past any tabs, flaps, shoulders or retaining features during pack-out.
Review: Loading Direction -> Maximum Profile During Loading -> Opening Clearance -> Final Seated Position.
For example, a pump bottle may have enough space once centered in the carton but still catch at the top opening if the pump overhang is wider than the path used during loading.
Customer Removal Can Require More Space Than Pack-Out
Factory operators may load a product before the insert is fully seated, while the customer must remove it from the finished package. The removal path can therefore be different from the packing path.
Finger notches, exposed shoulders, ribbons, pull tabs or open side access can reduce the amount of clearance needed elsewhere by making the intended removal method explicit.
Fit Is More Than The Product Goes Inside
Fit Dimension | Question to Ask |
|---|---|
Loading fit | Can the product be packed consistently without forcing or damaging the carton? |
Seated fit | Does the product sit in the intended position and orientation? |
Closure fit | Can flaps, lids, sleeves or drawers close without pressure from the product? |
Movement fit | Is the remaining movement acceptable for the intended package role? |
Presentation fit | Does a window, reveal or label face align as intended? |
Removal fit | Can the customer remove the product without tearing the package or pulling on a sensitive closure? |
Operational fit | Can the intended packing method be repeated efficiently across production? |
Round Bottles: Rotation Can Matter More Than Side Clearance
A round serum, fragrance or nail-polish bottle can fit comfortably and still rotate inside the package. If no specific face must remain visible, that may be acceptable. If a window or front-facing label must align, rotational control becomes part of the fit requirement.
In that case, the structural solution may involve shape, contact points or an insert rather than simply reducing the overall box width.
Flexible Tubes Need a Different Fit Review
Flexible squeeze tubes can change cross-section depending on fill level, product distribution, cap geometry and handling. Measure them in the finished filled condition and review the maximum filled depth rather than using an empty flattened tube.
A carton that is too close to the filled profile can create inconsistent loading, while an unnecessarily large carton can allow the tube to sit unpredictably.
Glass Bottles and Jars: Sample Variation Matters
Glass containers can have meaningful dimensional variation across molded features, bases, shoulders and decorative profiles. When a fitted insert or narrow carton is being developed, use the approved supplier tolerance or representative sample set where available rather than relying on one bottle.
The packaging decision should still be based on the complete product system. Glass alone does not dictate a specific insert material or universal clearance.

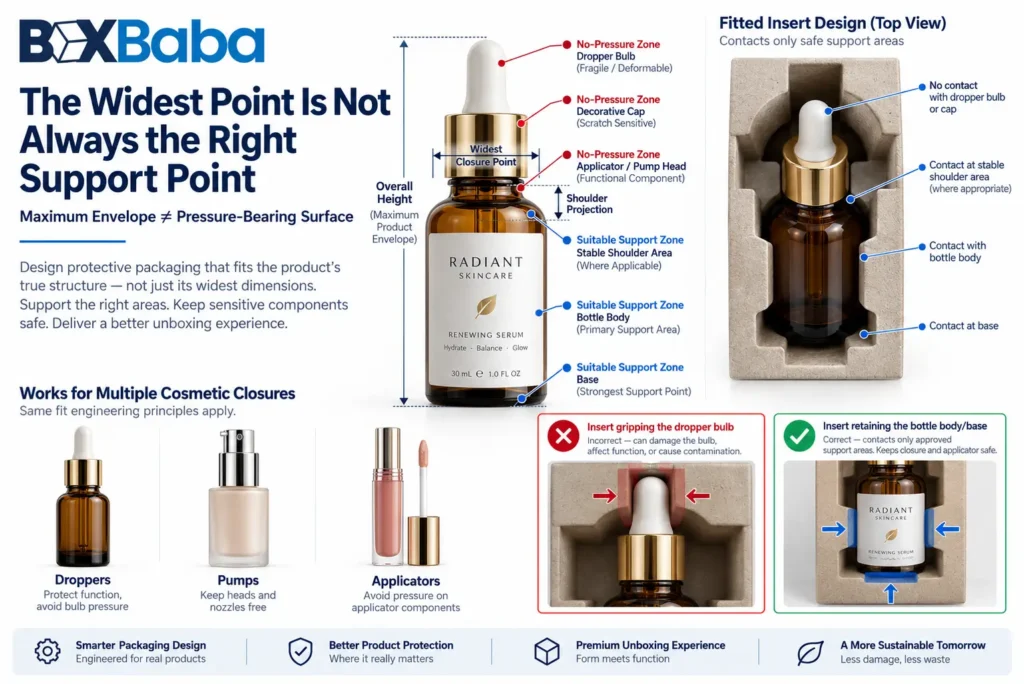

Pumps, Droppers and Applicators Need No-Pressure Zones
The widest point is not always the correct point to grip. A pump head, dropper bulb, applicator cap or decorative overcap may create the maximum envelope but should not be used as the main pressure-bearing contact surface.
Separate maximum-envelope measurement from support-zone selection: Maximum Envelope -> Fit Boundary. Suitable Product Surface -> Support / Retention Zone.
Windows Make Tolerance More Visible
A package without a window can tolerate some positional variation that remains invisible to the customer. A narrow window can make a few millimeters of rotation or vertical movement visually obvious.
When product-to-window alignment is important, the acceptance criteria should define both physical fit and visible position.
Manual Packing vs Automated Packing
A clearance that works for slow manual loading may not work for automated cartoning equipment, where erection, product insertion and flap closure must repeat at speed. Automated lines can require more explicit dimensional and operational specifications.
If automation is part of the project, provide the equipment constraints and pack-out condition before approving the structural dieline.
Material and Finish Changes Can Require a Fit Recheck
Changing board grade, caliper, lamination, wrap construction or insert material can change the completed structural geometry. The effect may be minor in a roomy carton but important in a close-fitting sleeve, rigid lid-and-tray system or fitted insert.
Same Dieline + Different Material != Automatically Identical Finished Fit.
How to Define a Fit Acceptance Criterion
Avoid approving a sample only with subjective language such as snug or looks fine. Define what acceptable fit means for the project.
- Product loads without forcing or visible carton damage.
- Closure can be completed normally.
- Product seats in the intended orientation.
- Movement remains within the agreed presentation requirement.
- Window or label alignment remains acceptable where relevant.
- Product can be removed without pulling on a pump, dropper or fragile decoration.
- Insert does not deform, pop open or disengage during normal pack-out.
- No critical cosmetic surface is marked by intended contact points.
Use Representative Products for Fit Review
Where dimensional variation is relevant, review more than one representative product rather than selecting a single ideal sample. The objective is to understand the practical range of the actual product supply.
For fit-critical packaging, a useful sample set can include products near the suppliers known dimensional extremes where that information is available.
A Digital Proof Does Not Validate Physical Clearance
A digital proof or 3D mockup is useful for artwork, panel orientation and visual review, but it cannot confirm the actual friction, fold behavior, product variation or removal force of a physical package.
When physical fit is an unresolved risk, use the proof or sample route appropriate to the project.
For the broader proofing hierarchy, see Cosmetic Packaging Samples and Proofing.
Fit Review Is Not Distribution Testing
A sample that loads and removes correctly answers a fit question. It does not automatically prove that the complete package will perform through shipping or distribution.
Fit Review -> Product / Cavity / Carton Relationship. Distribution Evaluation -> Completed Package Under the Required Transport Conditions.
Keep these acceptance questions separate so a successful fit sample is not described as a guarantee of shipping performance.
Worked Example: Serum Bottle With a Cap Tolerance
Consider a hypothetical serum bottle whose body is relatively consistent but whose installed cap has an approved width range. The nominal cap width is not enough for a close-fitting carton because some accepted caps can be larger.
The fit check should use the maximum acceptable cap width against the minimum acceptable internal carton or insert cavity width. The resulting minimum clearance must still allow loading and removal without using the cap as a pressure point.
Glass containers can have meaningful dimensional variation across molded features, bases, shoulders and decorative profiles. When a fitted insert or narrow carton is being developed, use the approved supplier tolerance or representative sample set where available rather than relying on one bottle.
The packaging decision should still be based on the complete product system. Glass alone does not dictate a specific insert material or universal clearance.
Worked Example: Compact in a Fitted Paperboard Tray
Consider a compact placed in a folded paperboard tray. The compact has a small hinge projection, while the insert cavity changes slightly depending on board caliper and fold stack.
The structural review should separate the hinge envelope from the preferred support surfaces, then verify the folded tray with representative compacts. If finger access is needed, the removal notch becomes part of the fit specification rather than simply increasing all cavity dimensions.
Worked Example: Six Shades Sharing One Lip Gloss Dieline
Suppose six lip gloss shades use the same approved tube and cap. The nominal geometry is identical, so one structural dieline may be practical. However, the shared structure should be based on the container suppliers acceptable dimensional range, not on whichever sample happened to be measured first.
If one shade later moves to a different cap supplier or tube decoration that changes the finished profile, that SKU should be rechecked before the shared dieline is reused.
Worked Example: A Box That Fits but Is Difficult to Pack
A hypothetical rectangular foundation bottle may have enough nominal internal space once seated, yet the shoulder catches on a tuck flap during loading. Increasing every carton dimension is not necessarily the best fix.
The better review is: loading direction, opening geometry, shoulder profile, flap path and final seated clearance. A local structural change may solve the pack-out problem without making the whole box larger.
Common Cosmetic Packaging Tolerance and Fit Mistakes
Mistake | Why It Creates Risk | Better Direction |
|---|---|---|
Using clearance and tolerance as the same term | They describe different concepts | Specify intentional gap separately from allowable variation |
Adding one universal clearance to every product | Geometry and packing conditions differ | Develop project-specific working clearance |
Measuring one sample only | It may not represent production extremes | Use supplier tolerance / representative samples where fit is sensitive |
Designing to nominal-zero fit | Normal variation can make production units too tight | Check maximum product against minimum cavity |
Checking only the tight condition | A loose condition can create movement or window misalignment | Check minimum product against maximum cavity too |
Ignoring closure variation | Cap, pump or dropper may control the envelope | Measure and specify the complete finished product |
Ignoring insert tolerance | Nested variation can stack | Treat product-to-insert and insert-to-box fit separately |
Using maximum envelope as a grip surface | The widest part may be sensitive | Map support and no-pressure zones |
Ignoring loading path | A product can fit once seated but catch during packing | Review the full insertion path |
Ignoring customer removal | A tight cavity can trap the product | Define removal access |
Approving only a digital mockup | It cannot prove friction or physical fit | Use an appropriate physical fit review |
Treating fit as shipping validation | Different acceptance question | Separate fit review from distribution testing |
Cosmetic Packaging Tolerance and Fit Checklist
- Finished product nominal dimensions.
- Maximum and minimum relevant product dimensions or supplier tolerance where available.
- Complete packed closure state: cap, pump, dropper, hinge, clasp or applicator.
- Label, sleeve or decoration that changes the external profile.
- Filled product weight and intended orientation.
- Direct fit or insert-based structure.
- Insert material and cavity geometry if used.
- Nominal internal carton / cavity dimensions.
- Agreed critical package tolerances or acceptable ranges.
- Loading direction and maximum profile during loading.
- Customer removal method.
- Window or front-facing alignment requirement.
- Sensitive / no-pressure product surfaces.
- Board / material / caliper and any finish that affects tight structural relationships.
- Manual or automated pack-out requirement.
- Representative product and structural sample availability.
- Fit acceptance criteria before production.
From Product Tolerance to Approved Packaging Fit
- Measure the Complete Finished Product
- Confirm Relevant Product Variation / Supplier Tolerances
- Define Orientation and Loading Direction
- Define the Intended Working Clearance
- Map Support, Sensitive and Removal Areas
- Develop Insert / Internal Carton Geometry
- Identify Critical Package Tolerances
- Check Worst-Case Tight Fit
- Check Worst-Case Loose Fit
- Review Loading, Closure, Positioning and Removal
- Approve the Appropriate Physical Sample
- Lock the Production Specification and Dieline
Brands ready to develop a product-specific packaging fit can review Custom Cosmetic Boxes and provide the finished product dimensions, relevant tolerance information, quantity, orientation, insert requirements and artwork status.
Frequently Asked Questions About Cosmetic Packaging Tolerances and Clearance
How much clearance should a cosmetic box have?
There is no universal clearance value for every cosmetic box. The required space depends on product geometry, dimensional variation, closure, box material, structure, insert, loading direction and removal method.
What is the difference between clearance and tolerance?
Clearance is intentional free space between components. Tolerance is the permitted variation around a specified dimension. A functional package must account for both.
Can I just add 1/16 inch around a cosmetic product?
A fixed value may work for a particular project but should not be treated as a universal production rule. Different products and box structures require different fit relationships.
Should a cosmetic product fit tightly inside the box?
It should fit according to the approved packaging function. A carton that is too tight can be difficult to load or remove, while one that is too loose can allow unwanted movement or misalignment.
What is worst-case fit?
Worst-case fit checks the dimensional extremes. The tight condition compares the maximum acceptable product with the minimum acceptable cavity; the loose condition compares the minimum product with the maximum cavity.
Do I need the container supplier tolerance?
It is especially useful for fit-critical packaging. A single measured sample may not represent the full acceptable production range.
Is a sample product enough to create a custom box?
A representative sample can be a useful starting point. Where dimensional variation could affect fit, use the approved supplier drawing, tolerance information or multiple representative units where available.
Do inserts need their own tolerances?
Yes. Insert cavities and completed insert dimensions can vary according to material and manufacturing process, so product-to-insert and insert-to-box fit should be reviewed separately.
Does a glass bottle need more clearance?
Not automatically. Glass geometry and manufacturing variation should be reviewed, but the correct clearance depends on the complete product and package rather than the material category alone.
How do pumps and droppers affect clearance?
They can create the maximum product envelope and may also require no-pressure zones. The package should allow the product to load and remove without using a sensitive pump or dropper as the main pressure point.
Can a round bottle fit but still be a problem?
Yes. A round bottle can rotate even when side clearance is acceptable. If a window or front label must remain aligned, rotational control becomes part of the fit requirement.
Does a digital proof confirm box fit?
No. A digital proof can review artwork and panel relationships but cannot verify physical friction, product variation, fold behavior or removal force.
Does a physical fit sample prove shipping performance?
No. Fit validation and distribution performance are separate questions. The completed shipping package should be evaluated separately where transport performance matters.
Should fit be rechecked if the container supplier changes?
Yes. The same nominal size or capacity can have different caps, shoulders, bases or overall dimensions from another supplier.
Should fit be rechecked if board or insert material changes?
Yes where the material change can alter folded thickness, cavity geometry, compression or other structural relationships.
