Die Cut Display Boxes

Die-Cut Retail Displays Designed Around Product Fit

The defining feature of a die cut display is its permanent custom-cut geometry. Openings, slots, notches and shaped panels should solve a real merchandising need: positioning a bottle, exposing a label, improving hand access or giving an assortment a distinctive retail profile. This is different from merely manufacturing a conventional tray with standard cuts and folds. An ordinary open tray can organize products without individually shaped openings. Choose a die-cut design when the cut geometry materially improves the product fit, access, arrangement or presentation. For simpler alternatives, explore BoxBaba Custom Display Boxes category.

How to Size Custom Die Cut Display Boxes

Start with the finished product that will actually enter the opening, not only the nominal container volume or a generic product category. Record every SKU’s maximum external width, depth and height, its finished weight and the side intended to face shoppers. For a display with dedicated holders, also identify the part of each product that makes contact with the opening. A bottle’s base, body, shoulder and cap may have different diameters. A tube’s cap can be wider than its body. The holder may need to fit one profile while allowing another section to pass through during insertion and removal. Provide these inputs before approving the dieline:

• Finished product profile: relevant width or diameter, taper, base shape, closure projection and overall height.
• Product fit and access: insertion direction, shopper-removal direction, desired retention and clearance around the contact area.
• Display quantity: total units, number of SKUs and units assigned to each variation.
• Merchandising layout: rows, columns, individual holding positions and shopper-facing orientation.
• Loaded weight: individual filled-unit weight and the combined weight of all products in the proposed display.
• Retail footprint: available counter or shelf width, depth and height, including any shaped-header clearance.
• Special cut geometry: product exposure, custom front access, holder openings, structural tabs or shaped contours.

Product dimensions and the final layout determine the structure; the selected material and dieline must then accommodate those requirements. No universal opening size or clearance fits every product.

Product-Holder Openings and Punch Inserts

A die-cut holder platform, sometimes called a punch insert, has individual openings that position products within the display. It can be considered for compatible tubes, small bottles, cosmetic containers and other items requiring defined spacing. The opening should fit the relevant contact profile rather than simply copying the product’s largest dimension. A holder that is too tight may interfere with insertion or shopper removal; one with too much clearance may let a tall product lean or rotate. Holder height, product center of gravity, board construction and intended removal direction also affect the result.

Unit Count, Multiple SKUs and Retail Footprint

A single-SKU display may repeat one opening shape. A mixed assortment may need different diameters, compartment widths or holder positions for different products. Measure each SKU separately when its package or closure profile differs. A shaped header or contoured side panel contributes to the assembled footprint even when the product-holding base fits the shelf. Confirm the allotted retail width, depth and vertical clearance, and allow for customer access and staff replenishment before fixing the profile.

Available Styles for Custom Die Cut Display Boxes

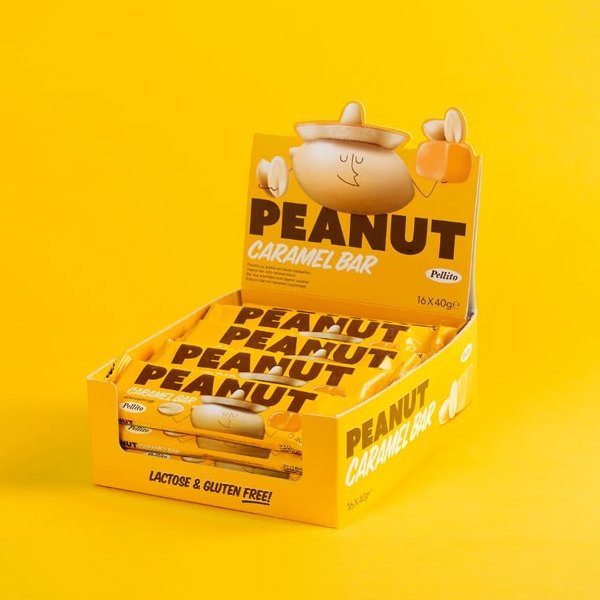

Open-Front Displays With Shaped Access

A permanent front cutout exposes the merchandise while retaining enough of the base and front or side walls to maintain the intended arrangement. Its profile should be developed around the product’s visible face and the direction in which shoppers remove individual units.

Die-Cut Displays With Individual Product Holders

Individual openings can give suitable bottles, tubes or similarly shaped merchandise dedicated positions. Holder geometry should follow the actual finished containers and any cap or shoulder that passes through the opening. Where several SKUs use different profiles, the holder layout may combine opening sizes or use separate sections. Product fit and removal should be reviewed before production approval.

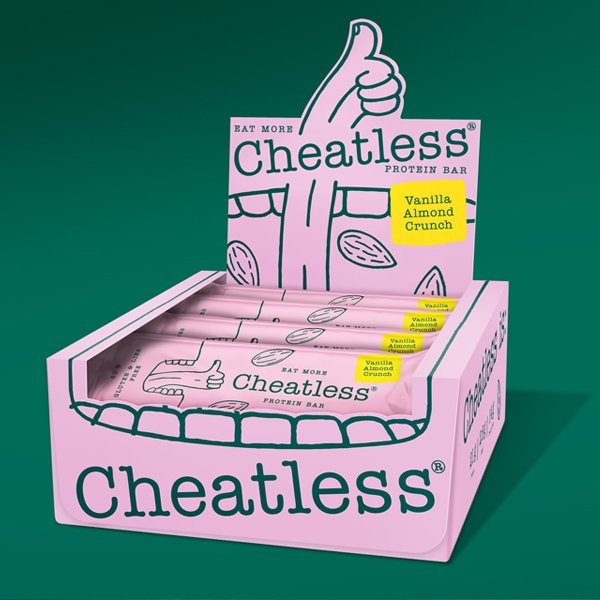

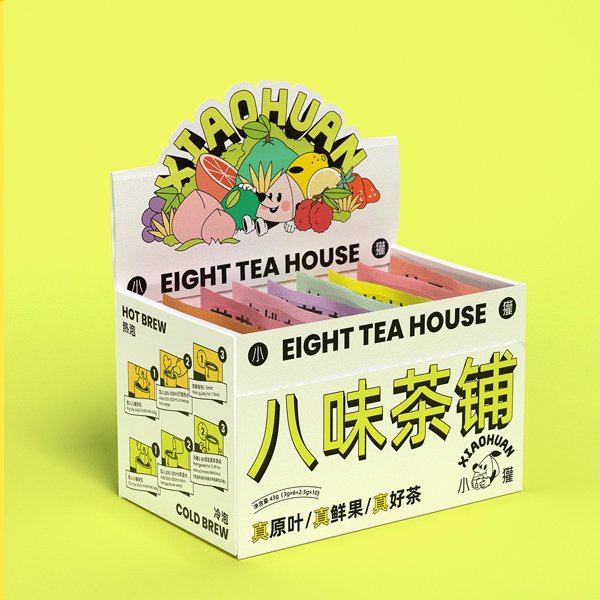

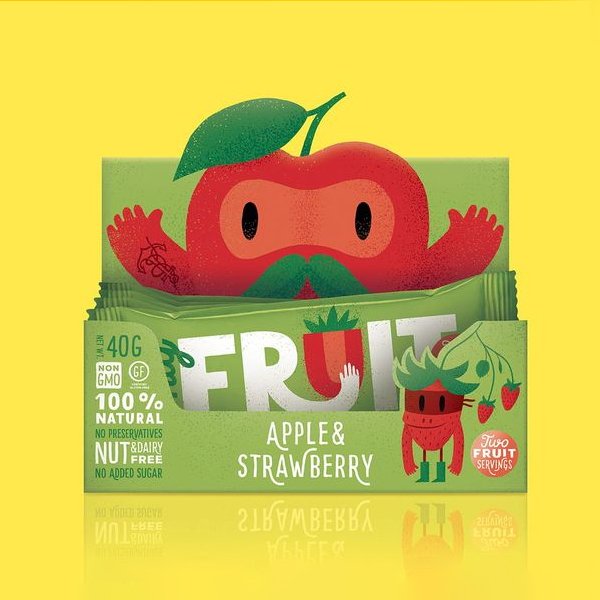

Displays With Custom-Shaped Headers

A shaped header can follow a suitable brand icon, product silhouette or promotional theme while providing an artwork area above the merchandise. The profile should fit the available retail height and remain compatible with the material, folds and packing method. For a comparison of how die-cut, counter, PDQ and other structures are classified, read our Types of Display Boxes guide.

Die-Cut Counter and Shelf Displays

Permanent cutouts can be incorporated into displays for appropriate countertop or shelf placement. For a counter unit, the available surface area and height govern the overall geometry. A shelf unit must also respect depth, vertical clearance and the retailer’s required facings. If the central requirement is the broader in-store arrangement rather than specialized cut geometry, compare Retail Display Boxes.

Product Exposure, Retention and Structural Support

Custom openings can reveal labels, colors or product shapes, but removing board also changes the remaining structure. The opening must provide practical shopper access without sacrificing the product positioning or support needed by the loaded display. Where a product rests in a fitted opening, the design should account for the part of the product supported by the holder and the clearance required to remove it. Open viewing cutouts serve a different purpose: they expose merchandise without necessarily retaining it in a fixed position. A permanent open cutout is also different from a transparent film-backed window. If a clear patch is required, specify the film and window construction separately instead of treating every open die cut as a window.

Paperboard and Corrugated Materials for Die Cut Displays

Select the material after the product dimensions, loaded weight, opening geometry and intended retail placement are understood. Cutouts reduce the material remaining around the merchandise, so the board cannot be chosen by appearance alone.

White and Kraft Paperboard

Solid white paperboard can suit comparatively compact displays requiring detailed printed graphics and appropriate product loads. Kraft paperboard provides a natural brown surface for artwork developed around that appearance. Paperboard can be considered for smaller openings, shaped headers and compatible holder platforms where the complete arrangement supports its use. For broader secondary-carton and paperboard options, explore Custom Cardboard Boxes.

Corrugated Die-Cut Displays

Corrugated board can be considered for larger profiles, higher loaded weights or more demanding retail handling. Its fluted construction changes the board’s thickness and cutting or folding behavior, so the final opening geometry must be developed for the approved material. If the primary requirement is a larger fluted-board retail structure rather than permanent product-specific cutouts, review Corrugated Display Boxes. No material should be assigned an unverified load rating or described as universally suitable for every display.

Dividers, Tabs, Slots and Product-Holding Features

A die-cut opening may provide enough positioning on its own. Additional dividers become useful when the merchandise also needs SKU separation, row alignment or lateral control. Tabs and slots can form part of the approved structural assembly when compatible with the selected board and display design. Their purpose differs from a product-holder opening, which positions merchandise rather than joining structural panels. Every added component occupies space. The final capacity should account for divider thickness, holder height, product insertion and the clearance needed for removal and replenishment.

Die Cut Displays for Cosmetics, Bottles and Small Products

Beauty products can benefit from fitted openings when lip-care tubes, mascara cartons, eyeliner products, skincare minis or samples need individual positions. Different shades may share a holder layout only when their finished packages and closures have compatible geometry. For a display whose main requirement is broader beauty merchandising, such as mixed-shade presentation or specialized cosmetic assortments, explore Cosmetic Display Boxes.

Die Cut Display Boxes vs Perforated and Standard Displays

A die cut display’s defining geometry is permanent: its openings, slots or shaped panels remain in the completed retail display. A perforated display instead uses a planned tear line so a designated panel is removed during store setup. A structure can combine both features, but the intended purpose of each must be established separately. A standard open display tray may be simpler when conventional rectangular geometry already provides enough access and product support. A counter display is primarily defined by its location, while a die cut display is primarily defined by its specialized geometry. The formats can overlap without being interchangeable.

Available Printing Methods for Custom Die Cut Display Boxes

Custom printed die-cut displays can carry logos, product imagery, promotional graphics, SKU identifiers, barcodes, QR codes and retail instructions. Place important artwork on the approved structural dieline so it does not cross a critical opening, narrow tab, glue zone or folded edge.

• Digital printing may suit compatible materials and quantities where flexible artwork setup is appropriate.
• Offset printing can be considered for detailed graphics and suitable production runs.
• Flexographic printing may be appropriate for compatible corrugated projects. Confirm the available method for the chosen board and artwork rather than assuming every process applies to every structure.

Finishing Options for Custom Die Cut Display Boxes

Compatible options may include matte or gloss lamination, soft-touch finishes, spot UV, foil stamping, embossing and debossing. The appropriate treatment depends on the selected board, print surface and structural configuration. Keep critical decorative effects away from narrow tabs, product openings, structural slots, folds and glue areas unless their placement has been specifically reviewed. Complex contours can affect how coatings, lamination and embellishments are applied near cut edges. Select finishes for a defined visual or tactile purpose without assuming they increase a display’s load capacity, waterproofing or suitability for direct food contact.

Dielines, Artwork Approval and Repeat Orders

A die-cut display defines its cut lines, folds, score lines, product openings, tabs, slots, glue areas and shaped panels. Establish the display geometry and material before positioning final artwork. Changing an opening diameter or product-holder layout later can require revisions to both the structural dieline and print files. For more detail on the production relationship between cuts, folds and printed artwork, read our Dieline in Packaging guide. Die-cut holders can be particularly sensitive to changes in bottle diameter, cap width, carton size or product height. Before a repeat order, compare the latest finished product with the previously approved dieline and any approved physical sample. Revalidate the fit when the product, board or holder geometry has changed.

Physical Samples, Assembly and Retail Setup

A digital 3D mockup can help review overall proportions, product arrangement and artwork placement, but it does not physically establish retention or shopper-removal clearance. Where holder fit, insertion, loaded stability or assembly is critical, discuss an appropriate physical structural sample before bulk production. Some paperboard and corrugated display designs can be developed for flat or partly pre-glued supply. Confirm where the display will be assembled, who loads the merchandise, whether it travels loaded and how retail staff will replenish it. Product-loading services and custom structural sample arrangements should not be assumed to be included without confirmation. BoxBaba offers free samples, with sample delivery charges reimbursed on the first bulk order. The type and availability of a custom physical sample should be established during quotation.

What Affects the Cost of Custom Die Cut Display Boxes?

Pricing depends on finished dimensions, material, unit count, loaded weight, the number and complexity of custom openings, holder platforms, dividers, shaped headers, print coverage, finishes, assembly and total order quantity. A display using repeated simple openings can require a different structural setup from one combining multiple product profiles, custom contours and separate compartments. Providing accurate finished-product measurements and the intended retail arrangement helps the quotation reflect the actual design.

Why Choose BoxBaba for Custom Die Cut Display Boxes?

BoxBaba develops permanent custom-cut display features around your merchandise, fit requirements, unit quantity and retail footprint. Choose suitable white or kraft paperboard or corrugated construction with appropriate product holders, shaped headers and dividers. Receive artwork assistance, custom dieline support, digital 3D mockups and proofing before production approval. Order from 100 units, with standard production in 5–9 business days after artwork approval and free shipping across the USA. Free samples are available, with sample delivery charges reimbursed on the first bulk order.

Request a Custom Die Cut Display Box Quote

Share the finished dimensions and weight of every SKU, total units per display, preferred product orientation, available shelf or counter footprint and required permanent openings, holders or shaped contours. Include the relevant bottle or tube contact profile, insertion and removal direction, material preference, artwork, finishes, assembly method, total order quantity and shipping destination. Request a custom display box quote using BoxBaba’s display-packaging quotation form. Product drawings, an existing sample or a retailer’s merchandising specification can help clarify the intended geometry before the dieline and proof are approved. Place your order by calling +1 305 574 4357 or emailing sales@boxbaba.com.
