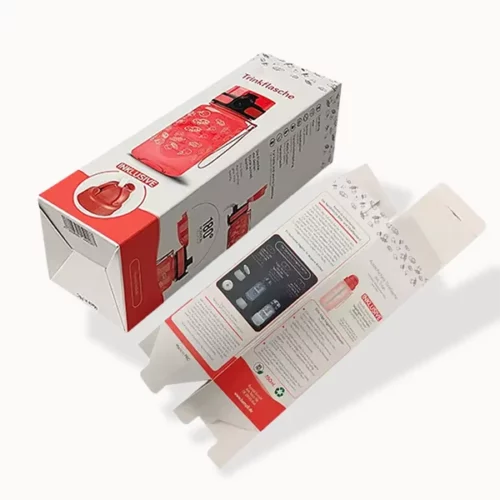

Tuck End Auto Bottom Boxes

Q: What dimensions are needed for a quote?

Provide the product's maximum finished length, width/depth and height, plus its filled weight, bottom footprint, product orientation, packing workflow and any projecting components.

Custom Tuck End Auto Bottom Boxes combine a tuck-in upper closure with a pre-glued bottom that forms into position as the carton is opened and squared. This base mechanism distinguishes Auto Bottom, also commonly called Crash Lock, from Snap Lock / 1-2-3 Bottom cartons that require manual flap interlocking during setup. BoxBaba develops Auto Bottom cartons around your finished product dimensions, filled weight, bottom footprint and packing workflow. Custom printing, inserts, die-cut windows and compatible finishes can be added where required. Artwork and dieline support, digital proof / 3D mockup review and sample options are available for custom projects. MOQ starts from 100 units, with free shipping across the USA.

4.5

Reviews 16 • Excellent

Alan Shivers

Greatest P......

Oct 7, 2026

Great and clear communication, as bespoke as it gets! Boxbaba made a limited…

We had a great experience ordering custom rigid boxes from BoxBaba. David was very…

We ordered custom CBD boxes from BoxBaba and had a really good experience. The team…

Message these guys on a Sunday afternoon they responded within the hour…

I recently ordered soap boxes from BoxBaba Packaging, and I couldn’t be happier…

Christina at BoxBaba has been amazing at guiding us through the process of acquiring…

Professional, great communication, great quality. Thank you so…

My contact at BoxBaba, Marcel, was very tentative and responsive. He gave me all box outlines…

Date of experience:

Dec 2, 2025

Full Name

Phone

Length

Width

Height

Dimension Units

Product name

Quantity

Color

Message

Upload Your Design

Design

Get your custom boxes made in the required size, shape, and style.

Print

Upload your artwork and get it superbly printed the way you want.

Get it done

Order any quantity, enjoy a wholesale price, pay no extra for die plates.

Product Specification

Material / Paper Stock We Use

Printing Methods

Inks

Finishing

Add-Ons

Artwork Guidelines

Specification

Specification	Available / Recommended Options
Box Structure	Tuck End Auto Bottom folding carton
Defining Feature	Tuck-in upper closure combined with a pre-glued automatic bottom
Top Closure	Tuck flap with supporting dust-flap relationship according to the approved structure
Bottom Construction	Pre-glued Auto Bottom / Crash Lock base
Bottom Assembly	Base forms into position as the collapsed carton is opened and squared
Supply Format	Flat or collapsed with base gluing completed during carton conversion
Loading Method	Commonly loaded through the upper opening after erection
Size	Custom dimensions developed around the finished product
Measurement Inputs	Maximum length, width/depth, height, filled weight, orientation and bottom footprint
Material Options	Folding paperboard/cardstock; Kraft paperboard where appropriate; other project-specific boards subject to structural review
Printing Methods	Digital and offset printing where appropriate
Color Systems / References	CMYK process color and Pantone/PMS references
Print Areas	Exterior panels; inside printing where supported
Window Option	Die-cut viewing opening where structurally appropriate
Insert Option	Custom insert where positioning, separation or support is required
Finishing Options	Matte, gloss, soft-touch, foil stamping, embossing, debossing and Spot UV where compatible
Dieline / Artwork Support	Available
Proofing	Digital proof / 3D mockup; ask about physical sample options where required
MOQ	Starting from 100 units
Standard Processing	5-9 business days after digital proof approval; confirm project-specific timing
Shipping	Free shipping across the USA
Primary Role	Retail / secondary packaging where a pre-glued erecting base supports the required packing workflow
Outer Shipping Role	Standard paperboard Auto Bottom cartons should not automatically be treated as parcel-shipping boxes

Packaging Materials & Paper Stocks We Use

Packaging materials do more than hold a product; they influence protection, presentation and overall box performance. Cardboard provides a smooth, durable surface for custom printing and everyday retail packaging. Kraft paper offers a natural, sturdy option with an eco-conscious appearance. Corrugated stock adds extra strength for heavier products and shipping applications. We offer carefully selected paper stocks that balance durability, print quality, sustainability, affordability and premium presentation.

Printing Methods We Use

Printing methods enhance how your packaging looks and represents your brand. Digital printing delivers sharp details and vibrant colors, making it ideal for flexible custom packaging designs. Offset printing provides consistent color accuracy and crisp image quality for larger production runs. Screen printing creates bold, durable graphics on selected box surfaces and materials. We offer the latest printing methods to turn your creative ideas into realistic visuals, showcasing logos, patterns, artwork and branded graphics with clarity and precision.

Printing Inks We Use

Printing inks bring packaging artwork to life with vibrant colors, clear details and consistent brand presentation. We offer a wide range of ink options, including Pantone colors, Pantone Metallic inks, oil-based inks and fluorescent inks for distinctive visual effects. Soy and vegetable-based inks provide versatile color reproduction, while water-based inks offer another practical printing option. Choose the right ink to reproduce logos, patterns, illustrations and branded artwork, turning creative ideas into attractive visuals with striking color and clarity.

Premium Finishes We Offer

Premium finishes enhance the appearance and overall aesthetics of custom packaging. Matte and gloss laminations create smooth visual effects, while soft-touch adds a refined tactile feel. Foil stamping introduces metallic accents in gold, silver and other shades, while embossing and debossing add dimensional detail. Spot UV highlights selected design elements with added contrast and shine. Choose from versatile finishing options to make logos, patterns and branded artwork look more distinctive, polished and premium.

Packaging Add-Ons We Offer

Packaging add-ons make custom packaging more attractive, presentable and visually captivating while increasing its perceived value. Gold foil adds a rich metallic accent, while silver foil creates a clean and sophisticated look. Holographic foil introduces eye-catching reflective effects that help selected design elements stand out. Embossing raises logos or patterns for added dimension, while debossing creates a refined recessed effect. Ribbons and handles add both decorative appeal and practical convenience, giving packaging a more distinctive and premium presentation.

Artwork Preparation Guidelines

Our Artwork Preparation Guidelines help you prepare files for clean, accurate printing on your custom packaging. Always use the final BoxBaba-approved dieline and submit editable or print-ready artwork in the requested format, commonly AI, EPS or PDF. Prepare colors according to the approved CMYK or PMS workflow and use high-resolution graphics, typically around 300 DPI at final size where applicable. Extend backgrounds and edge-to-edge graphics into the designated bleed area. Keep important text, logos, barcodes and other critical artwork inside the safe area, and review your final digital proof carefully before approving the artwork for production.

Product Specification

Specification	Available / Recommended Options
Box Structure	Tuck End Auto Bottom folding carton
Defining Feature	Tuck-in upper closure combined with a pre-glued automatic bottom
Top Closure	Tuck flap with supporting dust-flap relationship according to the approved structure
Bottom Construction	Pre-glued Auto Bottom / Crash Lock base
Bottom Assembly	Base forms into position as the collapsed carton is opened and squared
Supply Format	Flat or collapsed with base gluing completed during carton conversion
Loading Method	Commonly loaded through the upper opening after erection
Size	Custom dimensions developed around the finished product
Measurement Inputs	Maximum length, width/depth, height, filled weight, orientation and bottom footprint
Material Options	Folding paperboard/cardstock; Kraft paperboard where appropriate; other project-specific boards subject to structural review
Printing Methods	Digital and offset printing where appropriate
Color Systems / References	CMYK process color and Pantone/PMS references
Print Areas	Exterior panels; inside printing where supported
Window Option	Die-cut viewing opening where structurally appropriate
Insert Option	Custom insert where positioning, separation or support is required
Finishing Options	Matte, gloss, soft-touch, foil stamping, embossing, debossing and Spot UV where compatible
Dieline / Artwork Support	Available
Proofing	Digital proof / 3D mockup; ask about physical sample options where required
MOQ	Starting from 100 units
Standard Processing	5-9 business days after digital proof approval; confirm project-specific timing
Shipping	Free shipping across the USA
Primary Role	Retail / secondary packaging where a pre-glued erecting base supports the required packing workflow
Outer Shipping Role	Standard paperboard Auto Bottom cartons should not automatically be treated as parcel-shipping boxes

Stock Type & Thickness

Finishing Assortment

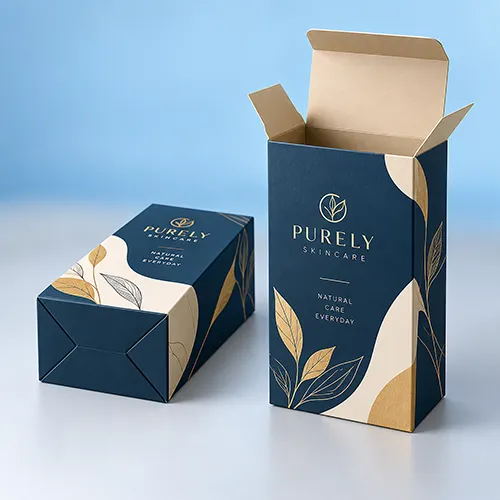

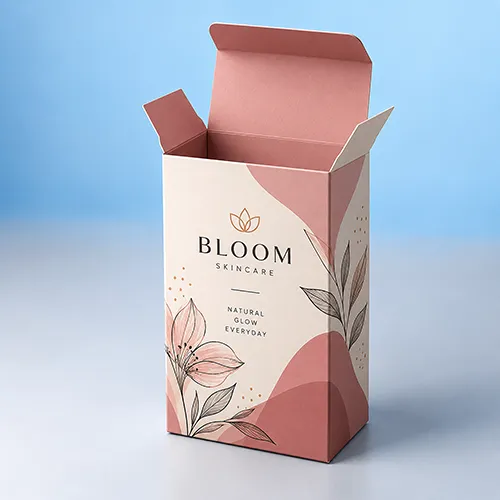

Custom Tuck End Auto Bottom Boxes for Retail Product Packaging

Custom Tuck End Auto Bottom Boxes combine a tuck-style upper closure with a pre-glued automatic base. When the collapsed carton is opened and squared, the prepared bottom panels move into their assembled relationship, reducing the manual base-folding steps required during packing. The defining structure is: Tuck End Auto Bottom → Tuck-In Top Closure + Pre-Glued Erecting Base That base mechanism is different from a Snap Lock / 1-2-3 Bottom, whose lower flaps are manually folded and interlocked during carton setup. The useful selection path is: Finished Product → Packing / Base Requirement → Tuck-End Access → Pre-Glued Auto Bottom → Product Fit + Filled Weight → Board / Base Geometry → Dieline → Validation → Quote For the broader folding-carton family, explore Custom Tuck Boxes.

What Is a Tuck End Auto Bottom Box?

A Tuck End Auto Bottom Box is a folding carton with a tuck-in upper closure and a pre-glued base prepared during carton conversion. The bottom panels are connected so that they move into their intended relationship when the collapsed carton is opened and squared. The defining relationship is: Auto Bottom / Crash Lock → Pre-Glued Erecting Base This changes the packing workflow because the operator does not manually build the base using the same flap sequence required by a Snap Lock / 1-2-3 Bottom. The term Auto Bottom describes the base mechanism. It does not provide a universal load rating or mean the carton is automatically suitable for every heavy or dense product. Filled weight, carton dimensions, bottom footprint, board and complete geometry still matter.

Auto Bottom vs Snap Lock / 1-2-3 Bottom

Decision Factor	Auto Bottom / Crash Lock	Snap Lock / 1-2-3 Bottom
Base preparation	Pre-glued during carton conversion	Prepared for manual interlocking
Packing-stage setup	Base forms as carton is opened and squared	Bottom flaps are folded in sequence and interlocked
Defining relationship	Pre-glued erection	Manual interlocking
Universal weight rating	No	No
Selection should follow	Product, dimensions, filled weight, board and packing workflow	Product, dimensions, filled weight, board and packing workflow

Keep the terminology clear: Snap Lock / 1-2-3 Bottom = manually interlocked base Auto Bottom / Crash Lock = pre-glued erecting base The right option depends on the packed product and how cartons will be erected during fulfillment.

Tuck End Auto Bottom vs Tuck Top Box

A Tuck Top Boxes primarily defines the upper tuck-in closure. The bottom can still be configured in different ways. A Tuck End Auto Bottom carton specifies the lower construction as well: Tuck Closure + Pre-Glued Auto Bottom Use the broader Tuck Top structure when the upper closure is known but the base is still being selected. Use Tuck End Auto Bottom when a pre-glued erecting base is already part of the product requirement.

Tuck End Auto Bottom vs Full Flap Auto Bottom

Both standard Auto Bottom and Full Flap Auto Bottom belong to the pre-glued automatic-base family. The difference is the specific bottom-panel geometry. Full Flap Auto Bottom uses a different or fuller bottom-panel relationship, changing how board is arranged across the base. That does not create a universal strength ranking. Use: Product + Bottom Footprint + Filled Weight + Board + Base Geometry → Structure Decision rather than assuming: Full Flap = always stronger or: Standard Auto Bottom = only for lighter products The correct base depends on the actual packed configuration.

When Does an Auto Bottom Structure Make Sense?

Tuck End Auto Bottom Boxes are worth evaluating when the packing operation benefits from a pre-glued base that forms during carton erection. This can be relevant when:

cartons need to be erected repeatedly during fulfillment;
reducing manual bottom-folding steps is useful;
the product has meaningful filled weight;
the bottom footprint requires more careful structural review;
or the packing workflow benefits from a consistently prepared base.

Products may include bottles, jars, candles, cosmetic containers, skincare products, supplements in primary containers and other compact retail items with compatible dimensions. These are decision signals rather than universal rules. A tall narrow bottle and a wider jar may weigh the same but load the base differently. Use: Product Geometry + Filled Weight + Bottom Footprint + Packing Workflow → Auto Bottom Suitability

How to Size a Tuck End Auto Bottom Box

Begin with the product in its finished, sale-ready condition. Measure the maximum: length × width/depth × height including any cap, pump, lid, shoulder, handle or other projection that changes the product envelope. Also provide:

filled product weight;
intended orientation;
quantity per carton;
bottom footprint;
insert requirement, if any;
window requirement, if any;
and intended packing workflow.

Do not assume: Product Dimensions = Finished Carton Dimensions The carton must also account for board, internal clearance, upper tuck engagement, folds, pre-glued bottom geometry and any internal support. Use: Finished Product → Required Internal Fit → Auto Bottom Geometry → Complete Dieline

How the Pre-Glued Auto Bottom Works During Packing

The automatic base is prepared during carton manufacture. At the packing stage, the collapsed carton is opened and squared. The connected lower panels move into their intended structural relationship as the carton takes shape. The practical workflow is: Collapsed Carton → Open / Square → Base Forms → Load Product → Close Tuck End This can reduce the manual bottom-building steps required by a Snap Lock structure. However, packing speed still depends on the carton size, product, operator or equipment and the overall fulfillment process. Avoid universal claims such as: assembles in one second or: always faster than every other box style. The benefit should be evaluated in the actual packing workflow.

How Filled Weight and Bottom Footprint Affect Selection

An Auto Bottom should not be selected solely because the product is described as heavy. Structural review should consider: Filled Weight + Bottom Footprint + Carton Height + Board + Base Geometry A tall bottle can place load on the base differently from a wider jar of similar weight. Product orientation, center of gravity and insert support can also affect how the packed item behaves inside the carton. For that reason, there is no responsible universal rule such as: Auto Bottom supports X pounds without an approved board, size and complete structure. Where filled-weight behavior is important, a representative physical sample can help validate the configuration before bulk production.

Materials for Tuck End Auto Bottom Boxes

Standard retail Auto Bottom cartons are commonly produced from folding paperboard selected according to the product, dimensions, base geometry and print requirements. A single GSM, point or caliper figure should not be treated as a universal specification for all Auto Bottom Boxes. White paperboard can provide a light printing surface for detailed retail artwork. Natural Kraft paperboard may also be considered where a brown substrate suits the project. Claims concerning recycled content, recyclability, biodegradability, compostability or product-contact suitability should follow the actual material and finished package rather than substrate color alone.

Inserts for Auto Bottom Packaging

The Auto Bottom base and an internal insert perform different functions. Auto Bottom → forms the carton base Insert → controls product position / movement An insert may be useful when a bottle, jar or other product needs positioning, alignment, separation or reduced internal movement. Because an insert occupies usable space, develop the packaging as: Product → Insert → Internal Carton Requirement → Auto Bottom Outer Carton For projects where internal retention is a major requirement, explore Printed Boxes With Inserts.

Auto Bottom Boxes With Windows

A compatible Tuck End Auto Bottom carton can include a die-cut viewing opening when part of the product needs to remain visible. Window placement should follow: Product Position → Visible Area → Window Geometry → Remaining Panel Area The window should also be coordinated with the internal insert and structural panel layout where applicable. For broader viewing-window packaging, explore Boxes With Window.

Printing Options for Tuck End Auto Bottom Boxes

Tuck End Auto Bottom cartons provide front, back, side and top-panel areas for branding and functional product information. Depending on the approved production setup, printing may include digital or offset printing with CMYK process color and Pantone/PMS references where applicable. Keep these terms separate: Digital / Offset = Printing Methods CMYK / Pantone = Color Systems / References Artwork can include logos, product names, approved product information, instructions, barcode areas and QR codes. Inside printing can also be considered where the selected board and structure support it.

Finishing Options for Tuck End Auto Bottom Boxes

Printing and finishing should be specified separately. Depending on the board and artwork, compatible finishing options can include:

matte lamination;
gloss lamination;
soft-touch treatment;
foil stamping;
embossing;
debossing;
Spot UV.

Finish placement should account for: folds + score lines + tuck areas + glue zones + bottom-panel geometry + barcode / QR areas The Auto Bottom base contains functional folds and glue relationships, so decorative treatments should be planned against the approved structural file. Use: Structure → Artwork → Finish Placement

Auto Bottom Dielines and Glue Geometry

The Auto Bottom dieline controls more than the outer shape of the carton. It also determines the bottom panels, folds and glue relationships that allow the base to form during erection. The key relationship is: Tuck-End Closure + Pre-Glued Base Geometry → Complete Auto Bottom Dieline An Auto Bottom structural file therefore cannot simply be replaced with a Snap Lock dieline while keeping the same base assumptions. Likewise, changing from standard Auto Bottom to Full Flap Auto Bottom changes the lower-panel geometry. Use: Product → Base Requirement → Auto Bottom Structure → Complete Dieline → Artwork For broader production-file fundamentals, review BoxBaba dieline in packaging guide.

Structural Validation Before Production

Use the approval method that matches the unresolved risk. A digital proof or 3D mockup can help review: text + artwork + panel orientation + window position + finish placement A physical structural sample becomes more useful where the question involves: product fit + filled-weight behavior + bottom erection + tuck engagement + insert alignment For an Auto Bottom project, the physical sample should represent the intended automatic base rather than a different carton bottom. Use: Unresolved Structural Risk → Representative Sample → Review → Approval A digital visualization cannot by itself validate physical base behavior.

Is a Tuck End Auto Bottom Box a Shipping Box?

A folding-paperboard Tuck End Auto Bottom carton is normally retail or secondary product packaging rather than an automatically qualified outer parcel shipper. The automatic base changes how the retail carton is erected, but: Auto Bottom ≠ Parcel-Shipping Qualification Where the package itself must face courier handling or distribution hazards, evaluate a suitable outer Mailer Boxes or Custom Corrugated Box.

What to Send for a Tuck End Auto Bottom Box Quote

Quote Input	Why It Matters
Finished product dimensions	Establishes the product envelope
Filled product weight	Adds base and board context
Bottom footprint	Helps evaluate base geometry
Quantity per box	Defines loaded configuration
Product orientation	Influences loading and internal fit
Auto Bottom requirement	Confirms the pre-glued base intent
Packing workflow	Helps validate the structure decision
Insert requirement	Changes usable internal space
Window requirement	Changes panel geometry
Material preference	Supports board selection
Printing sides	Defines artwork scope
Finishing requirements	Affects production specification
Order quantity	Supports production planning
Artwork status	Determines dieline/artwork support
Delivery destination	Supports shipping planning

If you need an easier-to-erect base but have not decided between Auto Bottom and a manually interlocking structure, provide the finished product dimensions, filled weight, bottom footprint and packing workflow first.

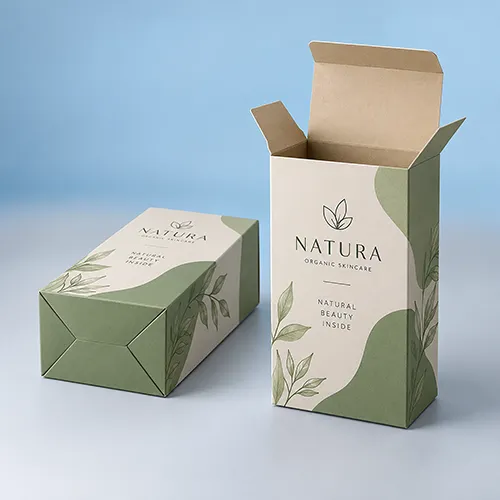

Custom Tuck End Auto Bottom Boxes Wholesale From BoxBaba

BoxBaba develops Tuck End Auto Bottom Boxes around the actual finished product, filled weight, base requirement and packing workflow. Custom packaging projects can start from 100 units. Artwork and dieline support are available, along with digital proof or 3D mockup review. Ask about physical sample options when product fit or Auto Bottom behavior needs to be validated before bulk production. BoxBaba current Shipping Policy lists a standard processing time of 5-9 business days after digital proof approval. Confirm the final project schedule with your quotation. Free shipping is available across the USA.

Request Custom Tuck End Auto Bottom Boxes

A Tuck End Auto Bottom carton should be specified from the packed product and base requirement outward. Share your finished product dimensions, filled weight, bottom footprint, required quantity, packing workflow, artwork status and any insert, window or finishing requirements. If you are comparing Auto Bottom with a manually interlocking base, finalize that structural decision before the dieline and artwork are approved so the production file reflects the actual packing method. Place your order by calling +1 305 574 4357 or emailing sales@boxbaba.com.

Frequently Asked Questions

Find all the urgent questions you may have.

What is a Tuck End Auto Bottom Box?

A Tuck End Auto Bottom Box combines a tuck-in upper closure with a pre-glued base that automatically forms into position as the flat carton is opened and squared.

How does Auto Bottom differ from Snap Lock Bottom?

Auto Bottom uses a pre-glued base that pops into shape automatically during carton erection. Snap Lock (or 1-2-3 Bottom) requires manual folding and interlocking of the lower flaps during setup.

What is another name for an Auto Bottom box?

Auto Bottom cartons are also commonly referred to as Crash Lock bottom boxes or pre-glued bottom boxes.

Can Tuck End Auto Bottom Boxes include windows?

Yes. A compatible Auto Bottom carton can incorporate a die-cut viewing opening where product visibility, remaining panel area and structural design support it.

Can Tuck End Auto Bottom Boxes include inserts?

Yes. Custom inserts can be integrated where the product requires improved positioning, alignment, separation or stability inside the carton.

Can Tuck End Auto Bottom Boxes use Kraft paperboard?

Yes. Natural Kraft paperboard can be utilized where it suits the visual direction, though printing results should always be evaluated against the actual brown substrate.

Can Auto Bottom boxes be printed inside?

Inside printing can be planned where supported by the selected board, structure and production setup.

What dimensions are needed for a quote?

Provide the product maximum finished length, width/depth and height, plus its filled weight, bottom footprint, product orientation, packing workflow and any projecting components.

What is the MOQ for Tuck End Auto Bottom Boxes?

BoxBaba custom packaging orders can start from 100 units, subject to final specifications, materials and project requirements.

How long does production take?

Standard processing is typically 5-9 business days after digital proof approval, depending on final project specifications. Confirm the final production and delivery schedule for your project.
