Custom Tuck Top Boxes

Custom Tuck Top Boxes for Retail Product Packaging

Custom Tuck Top Boxes are folding cartons in which a tuck-in upper flap provides the primary opening and closing point. The top flap folds over the carton opening and tucks into the corresponding front or locking relationship defined by the structural dieline. The most important specification rule is simple: Tuck Top = Upper Closure It does not mean every Tuck Top Box uses the same bottom. The bottom should be selected according to the finished product, filled weight, carton dimensions and packing workflow. A Tuck Top can therefore be combined with different compatible base constructions. Use: Finished Product → Top-Opening Requirement → Tuck Top Closure → Bottom Construction → Product Fit + Filled Weight → Board → Complete Dieline → Artwork → Quote For the broader structural family, explore Custom Tuck Boxes.

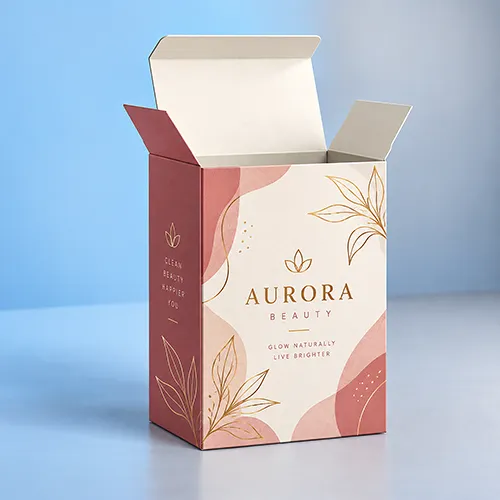

What Is a Tuck Top Box?

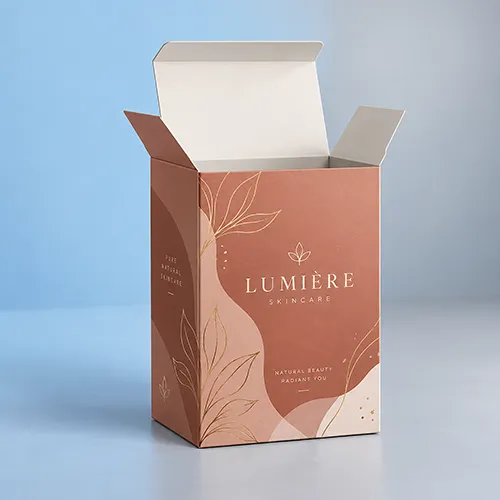

A Tuck Top Box is a folding carton whose primary upper opening uses a flap that folds over the opening and tucks into the corresponding carton panel or locking relationship. The defining entity relationship is: Tuck Top Box → uses → Upper Tuck-In Closure That is different from structures defined by another attribute. Straight Tuck describes the orientation relationship between the primary top and bottom tuck flaps. Reverse Tuck describes an opposing orientation between the two primary end closures. Auto Bottom describes a pre-glued erecting base. Snap Lock / 1-2-3 Bottom describes a manually interlocking base. The term Tuck Top therefore identifies the top-opening relationship, not the entire structural specification.

What Does Tuck Top Actually Define?

Tuck Top answers one important question: How does the top of the carton close? It does not automatically tell the buyer:

• how the base is formed;
• whether the bottom is manually locked;
• whether the base arrives pre-glued;
• whether the structure has reinforced folded walls;
• or whether it can function as an outer parcel shipper.

Those details depend on the complete structure. That distinction matters because two cartons can both have Tuck Top closures while behaving very differently during packing. For example: Tuck Top + Snap Lock Bottom and: Tuck Top + Auto Bottom share a similar top-opening concept but use different base mechanisms.

Choose the Bottom Construction for a Tuck Top Box

The base should follow the product and packing workflow rather than being assumed from the Tuck Top name. Use: Filled Product → Dimensions → Bottom Footprint → Packing Workflow → Base Construction

Conventional Folded or Tuck Bottom

A simpler folded base may work where the finished product, carton size and packing requirements do not call for a specialized locking or pre-glued bottom. The exact flap arrangement should still be confirmed on the approved dieline.

Snap Lock / 1-2-3 Bottom

A Snap Lock Bottom uses lower flaps that are manually folded and interlocked during carton setup. The defining relationship is: Snap Lock / 1-2-3 Bottom → Manual Interlocking This configuration may be considered where a manually formed locking base suits the product and fulfillment process. Do not assign it a universal weight rating. Product weight, dimensions, board, bottom footprint and complete geometry still matter.

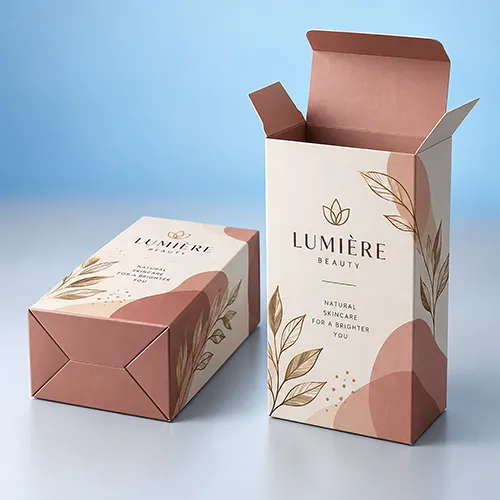

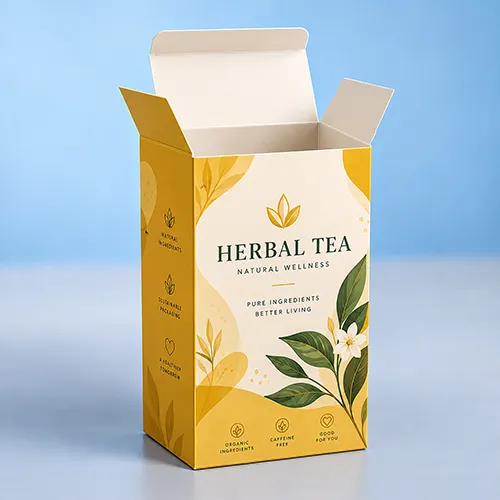

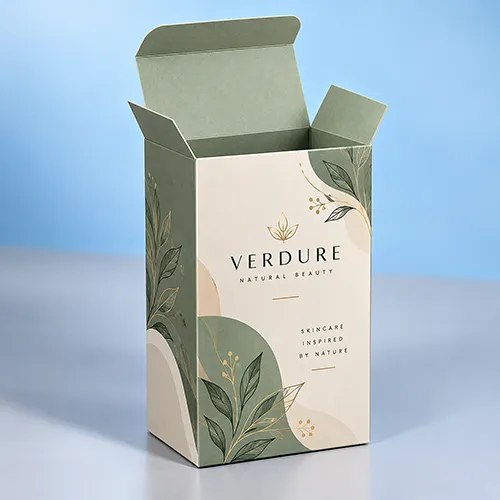

Auto Bottom / Crash Lock

An Auto Bottom uses a pre-glued base designed to move into position as the carton is opened and squared. The defining relationship is: Auto Bottom / Crash Lock → Pre-Glued Erecting Base This can be useful where repeated carton erection makes base setup an important part of packing. Where the pre-glued bottom is already the defining requirement, compare the project with Tuck End Auto Bottom.

Snap Lock Is Not Auto Bottom

These terms should not be used interchangeably. Snap Lock / 1-2-3 Bottom = manually interlocked base Auto Bottom / Crash Lock = pre-glued erecting base Neither should be treated as universally stronger or suitable for a fixed product weight without reviewing the complete package.

Tuck Top vs Straight and Reverse Tuck Boxes

Structure	What It Primarily Defines	Main Buyer Decision
Tuck Top	Upper tuck-in closure	Which bottom construction should pair with it?
Straight Tuck End	Primary top and bottom tuck flaps face the same general direction	Does same-direction orientation suit loading and artwork?
Reverse Tuck End	Primary top and bottom tuck flaps face opposite directions	Does opposing orientation suit loading and panel layout?

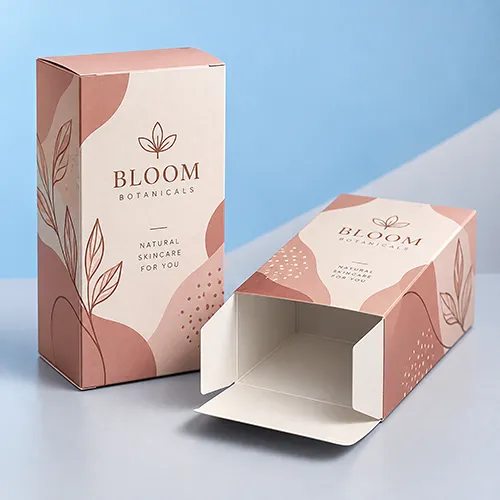

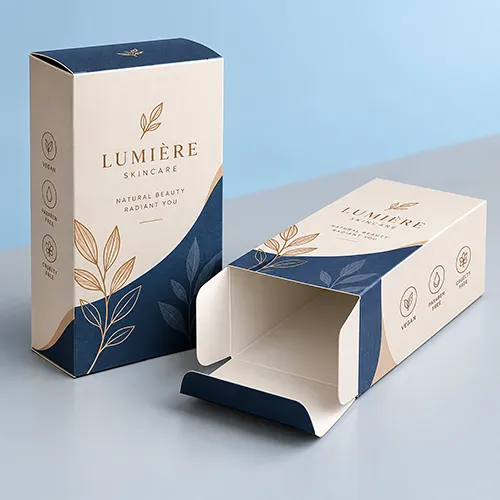

A Straight Tuck End Boxes is more relevant when the defining requirement is the same-direction relationship between the two primary end closures. A Reverse Tuck Boxes is more relevant when opposing end-closure orientation is the defining feature. Use Tuck Top when the upper tuck-in opening is known but the correct base still needs to be configured.

What Products Work With Tuck Top Boxes?

Tuck Top Boxes can suit compact retail products that benefit from top access and a folding-carton presentation. Possible applications include cosmetic and skincare containers, personal-care products, bottles, jars, candles, supplements in suitable primary containers, soaps, accessories, small kits and other products with compatible dimensions. The product category alone should not determine the final structure. A lightweight tube and a filled glass jar may have similar outer dimensions but require different base constructions. Use: Product Shape + Dimensions + Filled Weight + Loading Requirement → Tuck Top + Bottom Configuration rather than copying the structure used by another product in the same industry.

How to Size a Custom Tuck Top Box

Start with the product in its finished, sale-ready condition. Measure its maximum: length × width/depth × height including any cap, pump, shoulder, lid, handle or other projection that changes the product envelope. Also provide the filled weight, intended orientation, quantity per carton, insert requirement and bottom preference if one has already been selected. Do not assume: Product Dimensions = Finished Box Dimensions The final carton must also account for internal clearance, board, folds, top-tuck engagement, bottom geometry and any insert or divider. Use: Finished Product → Required Internal Fit → Tuck Top Closure + Bottom Construction → Complete Dieline

Product Loading and Top-Opening Access

The Tuck Top closure should be planned around both packing and customer access. Before production, confirm:

• which opening is used to load the product;
• whether the product clears the opening without catching;
• whether a cap, pump or projection needs additional space;
• whether an insert changes the loading path;
• which panel should face the customer;
• and how the top flap interacts with front-panel artwork.

The upper tuck flap therefore affects more than closing the carton. It also influences: Loading → Opening Sequence → Panel Relationship → Artwork

How Filled Weight Affects Bottom Selection

The Tuck Top determines access at the upper end, but the base still needs to suit the packed product. Filled weight is therefore particularly relevant when choosing the lower construction. Use: Loaded Product → Base Requirement → Bottom Geometry → Board → Structural Review Avoid universal rules such as: heavy product = Auto Bottom or: Snap Lock holds X pounds unless a project-specific specification or test supports the statement. The complete package must be evaluated together.

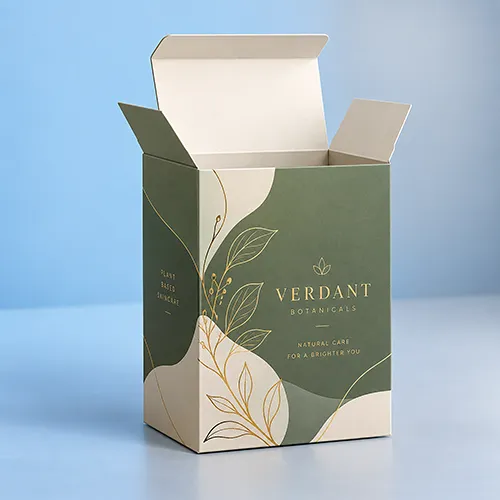

Materials for Custom Tuck Top Boxes

Standard retail Tuck Top cartons are commonly produced from folding paperboard selected according to the product, dimensions, bottom construction and print requirements. Do not use a single GSM, point or caliper value as a universal specification for all Tuck Top Boxes. White paperboard can be used where a light print surface is preferred for detailed graphics. Natural Kraft paperboard may also be considered where a brown substrate fits the visual direction. However: Kraft Appearance ≠ Automatic Environmental Qualification Claims about recycled content, recyclability, biodegradability, compostability or product-contact suitability should be based on the actual material and finished packaging specification.

Inserts and Windows for Tuck Top Boxes

An insert is optional and should be added only when the product needs controlled positioning, separation or alignment. Because the insert occupies internal space, develop the relationship as: Product → Insert → Available Internal Space → Tuck Top Carton For insert-focused projects, explore Printed Boxes With Inserts. A compatible Tuck Top structure can also incorporate a die-cut viewing opening. Window placement should follow: Product Position → Visible Area → Window Geometry → Remaining Panel Area For broader window structures, explore Boxes With Window.

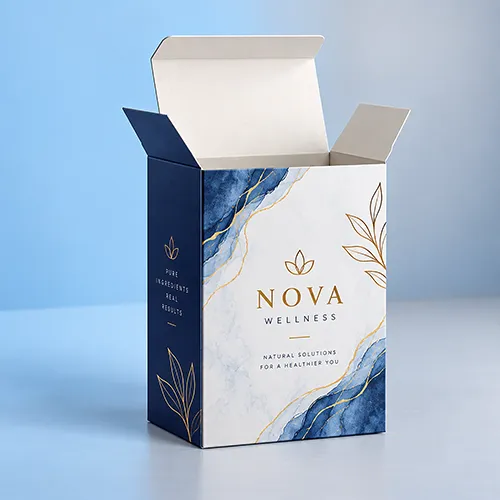

Printing Options for Tuck Top Boxes

Custom Tuck Top Boxes provide printable front, back, side and top-panel areas for branding and functional product information. Depending on the approved production setup, printing may include digital or offset printing with CMYK process color and Pantone/PMS references where applicable. Keep these terms separate: Digital / Offset = Printing Methods CMYK / Pantone = Color Systems / References Artwork can include logos, product names, instructions, approved product information, barcodes and QR codes. Inside printing may also be considered where the selected board and construction support it.

Plan Artwork Around the Top Flap

The top flap interacts with the front or locking panel when the carton closes. Important artwork should therefore be reviewed against: top fold + tuck edge + front-panel relationship + opening direction rather than positioned independently of the structural dieline.

Finishing Options for Tuck Top Boxes

Printing and finishing are separate production decisions. Depending on the board and artwork, compatible finishes can include matte or gloss lamination, soft-touch treatment, foil stamping, embossing, debossing and Spot UV. Finish placement should account for: top folds + tuck edge + score lines + glue zones + bottom folds + machine-readable areas Use: Approved Structure → Artwork → Finish Placement instead of choosing finish locations before the complete top-and-bottom structure is known.

Tuck Top Dielines: Specify the Top and Bottom Together

A Tuck Top Box does not have one universal dieline. The complete structural file depends on: Top Closure + Bottom Construction A Tuck Top paired with Snap Lock needs manually interlocking lower-panel geometry. A Tuck Top paired with Auto Bottom requires a pre-glued erecting base. Changing the bottom therefore changes the structural blank. The correct sequence is: Product → Tuck Top Requirement → Bottom Construction → Complete Dieline → Artwork not: Choose Tuck Top → Assume One Universal Template For broader production-file fundamentals, review BoxBaba dieline in packaging guide.

Structural Validation Before Production

The type of approval should match the uncertainty being checked. A digital proof or 3D mockup can help review: text + logos + panel orientation + artwork placement + top-flap appearance + finish positions A physical structural sample is more useful when the unresolved question involves: product fit + loading + top-tuck engagement + bottom assembly + insert/window alignment If bottom construction is important to the project, the physical sample should represent that approved base rather than a different Tuck Top configuration. Use: Unresolved Risk → Appropriate Proof / Sample → Approval A screen visualization alone cannot validate physical fit or base behavior.

Is a Tuck Top Box Suitable for Shipping?

A standard paperboard Tuck Top carton is usually retail or secondary product packaging rather than an automatically qualified outer parcel shipper. Some mailer, roll-end or corrugated structures also use Tuck Top-style closures, but their shipping role comes from the complete construction, not merely from having a tuck-top lid. If the package itself must face parcel distribution, evaluate the full shipping structure separately. For outer ecommerce packaging, explore Mailer Boxes or Custom Corrugated Boxes.

What to Send for a Tuck Top Box Quote

Quote Input	Why It Matters
Finished product dimensions	Establishes the product envelope
Filled product weight	Helps evaluate board and bottom construction
Quantity per box	Defines loaded configuration
Product orientation	Influences loading and top access
Tuck Top requirement	Confirms the upper closure
Preferred bottom, if known	Identifies the complete structure
Packing workflow	Helps compare manual vs pre-glued base options
Insert requirement	Changes usable internal space
Window requirement	Changes panel geometry
Material preference	Supports board selection
Printing sides	Defines artwork scope
Finishing requirements	Affects production specification
Order quantity	Supports production planning
Artwork status	Determines dieline/artwork support
Delivery destination	Supports shipping planning

If the top closure is already known but the bottom is not, provide the product dimensions, filled weight and packing workflow first.

Custom Tuck Top Boxes Wholesale From BoxBaba

BoxBaba develops custom Tuck Top Boxes around your finished product dimensions, preferred bottom construction, loading method and artwork requirements. Custom packaging projects can start from 100 units. Artwork and dieline support are available, along with digital proof or 3D mockup review. Ask about physical sample options where fit or base behavior requires validation. BoxBaba current Shipping Policy lists a standard processing time of 5–9 business days after digital proof approval. Confirm the project-specific production and delivery schedule with your quotation. Free shipping is available across the USA. Final material, printing, finishing, sample and production requirements should be confirmed for the specific order before production approval.

Request Custom Tuck Top Boxes

A Tuck Top Box should be specified from the physical product outward. Share your product dimensions, filled weight, required quantity, packing workflow, artwork status and any insert, window or finishing requirements. If the top closure is known but the base is not, the bottom should be selected before the final dieline and artwork are approved so the finished carton reflects the actual packed product rather than a generic Tuck Top template. Place your order by calling +1 305 574 4357 or emailing sales@boxbaba.com.
