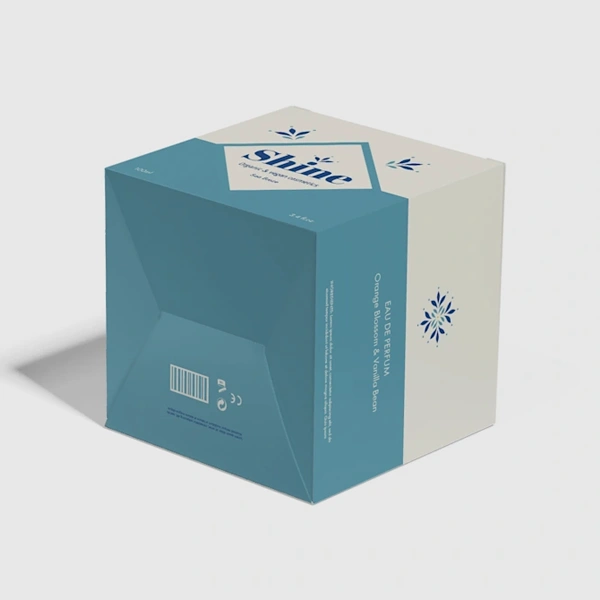

Seal End Auto Bottom

Custom Seal End Auto Bottom Boxes combine a seal-end closure at the loading end with a pre-glued automatic bottom at the opposite end. The Auto Bottom forms into position as the collapsed carton is opened and squared, while the remaining open end is closed and sealed according to the approved packing specification. BoxBaba develops Seal End Auto Bottom cartons around your finished product dimensions, filled weight, bottom footprint, packing workflow and required closure method. Custom printing, inserts, die-cut windows and compatible finishing options can be incorporated where appropriate. Artwork and dieline support, digital proof / 3D mockup review and sample options are available before bulk production. MOQ starts from 100 units, with free shipping across the USA.

4.5

Reviews 16 • Excellent

Alan Shivers

Greatest P......

Oct 7, 2026

Great and clear communication, as bespoke as it gets! Boxbaba made a limited…

We had a great experience ordering custom rigid boxes from BoxBaba. David was very…

We ordered custom CBD boxes from BoxBaba and had a really good experience. The team…

Message these guys on a Sunday afternoon they responded within the hour…

I recently ordered soap boxes from BoxBaba Packaging, and I couldn’t be happier…

Christina at BoxBaba has been amazing at guiding us through the process of acquiring…

Professional, great communication, great quality. Thank you so…

My contact at BoxBaba, Marcel, was very tentative and responsive. He gave me all box outlines…

Date of experience:

Dec 2, 2025

Full Name

Phone

Length

Width

Height

Dimension Units

Product name

Quantity

Color

Message

Upload Your Design

Design

Get your custom boxes made in the required size, shape, and style.

Print

Upload your artwork and get it superbly printed the way you want.

Get it done

Order any quantity, enjoy a wholesale price, pay no extra for die plates.

Product Specification

Material / Paper Stock We Use

Printing Methods

Inks

Finishing

Add-Ons

Artwork Guidelines

Specification

Specification	Available / Recommended Options
Box Structure	Seal End Auto Bottom folding carton
Defining Feature	Seal-end closure combined with a pre-glued automatic base
Closing End	Seal-end flap relationship according to the approved dieline and packing method
Bottom Construction	Pre-glued Auto Bottom / Crash Lock base
Bottom Assembly	Base forms as the collapsed carton is opened and squared
Supply Format	Flat or collapsed with automatic-base gluing completed during conversion
Loading Method	Product loaded through the open seal-end side before final closure
Size	Custom dimensions developed around the finished product
Measurement Inputs	Maximum length, width/depth, height, filled weight, orientation and bottom footprint
Material Options	Folding paperboard/cardstock; Kraft paperboard where appropriate; other project-specific boards subject to structural review
Printing Methods	Digital and offset printing where appropriate
Color Systems / References	CMYK process color and Pantone/PMS references
Print Areas	Exterior panels; inside printing where supported
Window Option	Die-cut viewing opening where structurally appropriate
Insert Option	Custom insert where positioning, separation or support is required
Finishing Options	Matte, gloss, soft-touch, foil stamping, embossing, debossing and Spot UV where compatible
Dieline / Artwork Support	Available
Proofing	Digital proof / 3D mockup; physical sample options where required
MOQ	Starting from 100 units
Standard Processing	5–9 business days after final artwork approval, depending on final specifications
Shipping	Free shipping across the USA
Primary Role	Retail / secondary folding-carton packaging requiring a seal-end closure with a pre-glued base
Outer Shipping Role	Standard paperboard Seal End Auto Bottom cartons should not automatically be treated as parcel-shipping boxes

Packaging Materials & Paper Stocks We Use

Packaging materials do more than hold a product; they influence protection, presentation and overall box performance. Cardboard provides a smooth, durable surface for custom printing and everyday retail packaging. Kraft paper offers a natural, sturdy option with an eco-conscious appearance. Corrugated stock adds extra strength for heavier products and shipping applications. We offer carefully selected paper stocks that balance durability, print quality, sustainability, affordability and premium presentation.

Printing Methods We Use

Printing methods enhance how your packaging looks and represents your brand. Digital printing delivers sharp details and vibrant colors, making it ideal for flexible custom packaging designs. Offset printing provides consistent color accuracy and crisp image quality for larger production runs. Screen printing creates bold, durable graphics on selected box surfaces and materials. We offer the latest printing methods to turn your creative ideas into realistic visuals, showcasing logos, patterns, artwork and branded graphics with clarity and precision.

Printing Inks We Use

Printing inks bring packaging artwork to life with vibrant colors, clear details and consistent brand presentation. We offer a wide range of ink options, including Pantone colors, Pantone Metallic inks, oil-based inks and fluorescent inks for distinctive visual effects. Soy and vegetable-based inks provide versatile color reproduction, while water-based inks offer another practical printing option. Choose the right ink to reproduce logos, patterns, illustrations and branded artwork, turning creative ideas into attractive visuals with striking color and clarity.

Premium Finishes We Offer

Premium finishes enhance the appearance and overall aesthetics of custom packaging. Matte and gloss laminations create smooth visual effects, while soft-touch adds a refined tactile feel. Foil stamping introduces metallic accents in gold, silver and other shades, while embossing and debossing add dimensional detail. Spot UV highlights selected design elements with added contrast and shine. Choose from versatile finishing options to make logos, patterns and branded artwork look more distinctive, polished and premium.

Packaging Add-Ons We Offer

Packaging add-ons make custom packaging more attractive, presentable and visually captivating while increasing its perceived value. Gold foil adds a rich metallic accent, while silver foil creates a clean and sophisticated look. Holographic foil introduces eye-catching reflective effects that help selected design elements stand out. Embossing raises logos or patterns for added dimension, while debossing creates a refined recessed effect. Ribbons and handles add both decorative appeal and practical convenience, giving packaging a more distinctive and premium presentation.

Artwork Preparation Guidelines

Our Artwork Preparation Guidelines help you prepare files for clean, accurate printing on your custom packaging. Always use the final BoxBaba-approved dieline and submit editable or print-ready artwork in the requested format, commonly AI, EPS or PDF. Prepare colors according to the approved CMYK or PMS workflow and use high-resolution graphics, typically around 300 DPI at final size where applicable. Extend backgrounds and edge-to-edge graphics into the designated bleed area. Keep important text, logos, barcodes and other critical artwork inside the safe area, and review your final digital proof carefully before approving the artwork for production.

Product Specification

Specification	Available / Recommended Options
Box Structure	Seal End Auto Bottom folding carton
Defining Feature	Seal-end closure combined with a pre-glued automatic base
Closing End	Seal-end flap relationship according to the approved dieline and packing method
Bottom Construction	Pre-glued Auto Bottom / Crash Lock base
Bottom Assembly	Base forms as the collapsed carton is opened and squared
Supply Format	Flat or collapsed with automatic-base gluing completed during conversion
Loading Method	Product loaded through the open seal-end side before final closure
Size	Custom dimensions developed around the finished product
Measurement Inputs	Maximum length, width/depth, height, filled weight, orientation and bottom footprint
Material Options	Folding paperboard/cardstock; Kraft paperboard where appropriate; other project-specific boards subject to structural review
Printing Methods	Digital and offset printing where appropriate
Color Systems / References	CMYK process color and Pantone/PMS references
Print Areas	Exterior panels; inside printing where supported
Window Option	Die-cut viewing opening where structurally appropriate
Insert Option	Custom insert where positioning, separation or support is required
Finishing Options	Matte, gloss, soft-touch, foil stamping, embossing, debossing and Spot UV where compatible
Dieline / Artwork Support	Available
Proofing	Digital proof / 3D mockup; physical sample options where required
MOQ	Starting from 100 units
Standard Processing	5–9 business days after final artwork approval, depending on final specifications
Shipping	Free shipping across the USA
Primary Role	Retail / secondary folding-carton packaging requiring a seal-end closure with a pre-glued base
Outer Shipping Role	Standard paperboard Seal End Auto Bottom cartons should not automatically be treated as parcel-shipping boxes

Stock Type & Thickness

Finishing Assortment

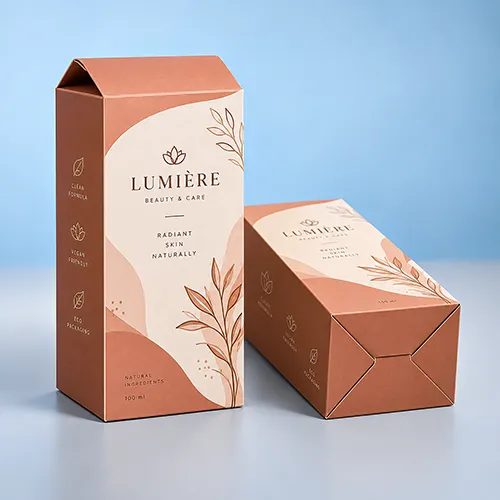

Custom Seal End Auto Bottom Boxes for Retail Product Packaging

Custom Seal End Auto Bottom Boxes combine two separate structural functions in one folding carton: Seal-End Closure + Pre-Glued Auto Bottom The automatic base is prepared during carton conversion and forms as the collapsed carton is opened and squared. The opposite end remains available for product loading and is then closed according to the approved seal-end configuration and packing process. This makes the structure different from both a standard Seal End carton and a Tuck End Auto Bottom carton. A useful specification path is: Finished Product → Closure Requirement → Seal End + Auto Bottom → Packing Workflow → Product Fit + Filled Weight → Board / Geometry → Dieline → Validation → Quote For other folding-carton structures, explore Custom Tuck Boxes.

What Is a Seal End Auto Bottom Box?

A Seal End Auto Bottom Box is a folding carton that combines a seal-end closure with a pre-glued automatic base. The two structural components perform different functions: Seal End → defines the closing relationship at the loading end Auto Bottom → defines how the opposite base is erected The Auto Bottom is glued during carton conversion. When the carton is opened and squared during packing, the connected lower panels move into their intended base configuration. After the product is loaded, the seal-end flaps are closed according to the approved packing or production setup. The structure should therefore be understood as: Seal End Auto Bottom → Closure System + Base System rather than simply as a generic strong box.

Seal End Auto Bottom vs Standard Seal End Boxes

Decision Factor	Seal End Auto Bottom	Seal End Box
Seal-end relationship	Yes	Yes
Auto Bottom base	Yes	Not automatically
Base erection	Pre-glued base forms during carton erection	Depends on the specified Seal End structure
Primary difference	Adds Auto Bottom construction	Seal-end closure is the core defining relationship
Selection should follow	Closure need + base requirement + packing workflow	Closure requirement + product / packing setup

Choose a standard Seal End Boxes when the sealed closure relationship is the main requirement and an Auto Bottom is unnecessary. Choose Seal End Auto Bottom when both the seal-end closure and pre-glued erecting base are required.

Seal End Auto Bottom vs Tuck End Auto Bottom

Structure	Loading-End Closure	Bottom
Seal End Auto Bottom	Seal-end relationship	Pre-glued Auto Bottom
Tuck End Auto Bottom	Tuck-in closure	Pre-glued Auto Bottom

Both structures can use the same Auto Bottom family at the base. The important difference is the loading-end closure. A Tuck End Auto Bottom uses a tuck-style closure. A Seal End Auto Bottom uses an end designed to be sealed according to the approved packing method. The decision is therefore not: Which one has the stronger Auto Bottom? The better question is: Does the product need a tuck-style opening or a sealed-end closure relationship?

Does Seal End Mean Tamper-Evident?

Not automatically. A seal-end closure creates a closed carton-end relationship, but the term Seal End by itself does not prove that the finished packaging is:

tamper-evident;
tamper-resistant;
airtight;
leakproof;
moisture-proof;
child-resistant;
or barrier packaging.

Those properties depend on the actual closure design, adhesive or sealing system, materials, primary product container and any required validation or testing. Use: Structural Seal-End Closure ≠ Certified Functional Claim If tamper evidence or another specific closure performance requirement is needed, state it separately during structural development.

How the Auto Bottom Works

The automatic base is prepared during carton conversion. During packing, the typical sequence is: Collapsed Carton → Open / Square → Auto Bottom Forms → Load Product → Close / Seal Remaining End This can reduce manual bottom-building steps compared with a Snap Lock / 1-2-3 Bottom. The exact erection behavior still depends on the approved carton geometry. Avoid unsupported universal claims such as: instant assembly or: always faster than every other carton. Packing efficiency depends on the carton dimensions, product, operator or equipment and actual fulfillment process.

When Does Seal End Auto Bottom Make Sense?

Seal End Auto Bottom is worth evaluating when the project requires both:

a pre-glued bottom that forms during carton erection; and
a loading end intended to be sealed after the product is packed.

This can suit production or fulfillment workflows where repeated carton erection and controlled end closure are important. Possible applications include bottled goods, cosmetics, skincare and personal-care products, supplements in suitable primary containers, hardware, small electronics and other compatible retail products. The industry alone should not determine the structure. Use: Product + Closure Requirement + Filled Weight + Packing Workflow → Seal End Auto Bottom Suitability

How to Size a Seal End Auto Bottom Box

Start with the product in its finished, sale-ready condition. Measure the maximum: length × width/depth × height including any cap, pump, lid, shoulder, handle or other projection that changes the product envelope. Also provide:

filled product weight;
product orientation;
quantity per carton;
bottom footprint;
intended loading direction;
sealing requirement;
insert requirement, if any;
and packing workflow.

Do not assume: Product Dimensions = Finished Carton Dimensions The finished carton must also account for board, folds, internal clearance, seal-end flap geometry, Auto Bottom construction and any insert. Use: Finished Product → Required Internal Fit → Seal-End + Auto-Bottom Geometry → Complete Dieline

How Filled Weight and Bottom Footprint Affect the Base

The Auto Bottom should be evaluated against the actual packed product rather than selected simply because the item is described as heavy. Relevant structural inputs include: Filled Weight + Bottom Footprint + Carton Height + Board + Base Geometry A tall, narrow product can load the base differently from a shorter, wider product with the same total weight. Product orientation and internal support can also affect how the carton behaves when packed. There is therefore no responsible universal claim such as: Seal End Auto Bottom supports X pounds without an approved board, size and structure. Where physical base performance matters, a representative structural sample can help validate the configuration before bulk production.

Packing Workflow and Seal-End Closure

The seal-end component becomes especially important when planning how the carton will be filled and closed. Before finalizing the structure, determine:

whether cartons will be packed manually or using equipment;
which end remains open during loading;
what sealing method will be used;
whether adhesive zones require print- or finish-free areas;
whether the product can pass through the loading opening;
and whether an insert changes the loading path.

Use: Packing Method → Loading End → Seal Area → Dieline / Artwork Requirement The exact functional sealing area should follow the approved production and packing specification rather than a generic box template.

Materials for Seal End Auto Bottom Boxes

Seal End Auto Bottom cartons are commonly produced from folding paperboard selected according to the product, dimensions, closure method, base geometry and printing requirements. A single GSM, point or caliper should not be treated as a universal specification. White paperboard can provide a light printing surface for detailed retail graphics. Natural Kraft paperboard may also be considered where a brown substrate suits the intended presentation. Claims concerning recycled content, recyclability, biodegradability, compostability or product-contact suitability should follow the actual board and finished packaging specification.

Inserts for Seal End Auto Bottom Packaging

The carton structure and internal insert solve different packaging requirements. Seal End Auto Bottom → defines the outer carton Insert → controls product position inside the carton An insert may be useful when the product requires alignment, separation, support or reduced internal movement. Because an insert occupies usable internal space, develop the package as: Product → Insert → Internal Space Requirement → Seal End Auto Bottom Carton For projects where internal retention is a primary requirement, explore Printed Boxes With Inserts.

Seal End Auto Bottom Boxes With Windows

A compatible Seal End Auto Bottom carton can include a die-cut viewing opening where product visibility is required. Window placement should follow: Product Position → Visible Area → Window Geometry → Remaining Panel Area The opening should not be planned independently of seal areas, glue zones, folds, inserts or product position. For broader viewing-window packaging, explore Boxes With Window.

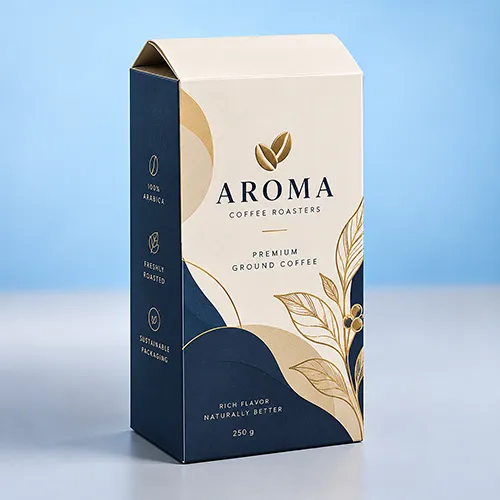

Printing Options for Seal End Auto Bottom Boxes

Custom Seal End Auto Bottom cartons provide multiple printable panels for brand artwork and functional product information. Depending on the approved production specification, printing can include digital or offset printing with CMYK process color and Pantone/PMS references where applicable. Keep the terminology separate: Digital / Offset = Printing Methods CMYK / Pantone = Color Systems / References Artwork can include logos, product names, approved product information, instructions, barcode areas and QR codes. Inside printing can also be considered where supported by the selected board and production configuration.

Keep Artwork Clear of Functional Seal Areas

Seal-end cartons contain areas whose surface condition may matter to gluing or sealing. Important artwork and decorative treatments should therefore be planned around: Seal Area + Glue Zone + Fold / Score + Artwork Do not place critical graphics or incompatible finishing over functional sealing zones without production approval.

Finishing Options for Seal End Auto Bottom Boxes

Printing and finishing should be specified separately. Depending on the board and artwork, compatible finishing options can include:

matte lamination;
gloss lamination;
soft-touch treatment;
foil stamping;
embossing;
debossing;
Spot UV.

Finish placement should account for: seal areas + glue zones + folds + score lines + Auto Bottom geometry + barcode / QR areas The useful production relationship is: Structure → Functional Seal / Glue Zones → Artwork → Finish Placement

Seal End Auto Bottom Dielines

The dieline has to coordinate two structural systems: Seal-End Closure + Auto Bottom Base The production file can define:

body panels;
seal-end flap geometry;
Auto Bottom panels;
folds and scores;
functional glue zones;
artwork boundaries;
window placement, if applicable;
and insert relationships where required.

Changing from Seal End Auto Bottom to Tuck End Auto Bottom changes the loading-end closure geometry. Changing from Auto Bottom to another base changes the lower structural geometry. Use: Product → Closure Requirement + Base Requirement → Seal End Auto Bottom → Dieline → Artwork For broader production-file fundamentals, review BoxBaba dieline in packaging guide.

Structural Validation Before Production

Use the approval method that matches the unresolved risk. A digital proof or 3D mockup can help review: artwork + panel orientation + text + seal-area placement + window / finish positions A physical structural sample becomes more useful where the unresolved question involves: product fit + Auto Bottom erection + filled-weight behavior + loading path + seal-end flap relationship + insert alignment A digital visualization alone cannot prove physical product fit, automatic-base behavior or closure performance. Use: Unresolved Structural Risk → Appropriate Proof / Sample → Review → Approval

Is a Seal End Auto Bottom Box a Shipping Box?

A standard folding-paperboard Seal End Auto Bottom carton is generally retail or secondary product packaging rather than an automatically qualified outer parcel shipper. A sealed-end closure and automatic base do not by themselves establish parcel-shipping performance. Seal End Auto Bottom ≠ Parcel-Shipping Qualification Where the package itself will face courier handling or distribution hazards, evaluate an appropriate outer Mailer Box or Custom Corrugated Box.

What to Send for a Seal End Auto Bottom Quote

Quote Input	Why It Matters
Finished product dimensions	Establishes the product envelope
Filled product weight	Adds base and board context
Bottom footprint	Helps evaluate automatic-base geometry
Quantity per box	Defines loaded configuration
Product orientation	Influences loading path and fit
Seal End Auto Bottom requirement	Confirms structural and closure intent
Packing workflow	Validates assembly and sealing method
Insert requirement	Changes usable internal space
Window requirement	Changes panel geometry
Material preference	Supports board selection
Printing sides	Defines artwork scope
Finishing requirements	Affects production specification
Order quantity	Supports production planning
Artwork status	Determines dieline/artwork support
Delivery destination	Supports shipping planning

If you need both a pre-glued base and a sealed loading end, provide the product dimensions, filled weight, bottom footprint, sealing method and packing workflow first so BoxBaba can develop the correct production dieline.

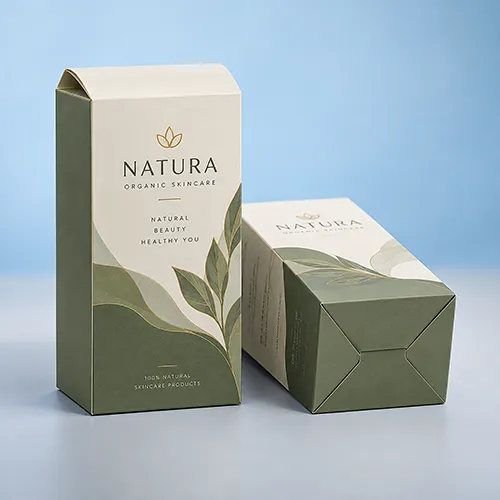

Custom Seal End Auto Bottom Boxes Wholesale From BoxBaba

BoxBaba develops Seal End Auto Bottom Boxes around your finished product dimensions, filled weight, sealing requirements and packing workflow. Custom packaging projects can start from 100 units. Artwork and dieline support are available, along with digital proof or 3D mockup review. Ask about physical sample options where product fit or closure behavior requires validation. BoxBaba current Shipping Policy lists a standard processing time of 5–9 business days after digital proof approval. Confirm the final project schedule with your quotation. Free shipping is available across the USA. Final material, printing, finishing, sample and production requirements should be confirmed for the specific order before production approval.

Request Custom Seal End Auto Bottom Boxes

A Seal End Auto Bottom carton should be developed from the packed product, closure requirement and packing process outward. Share your product dimensions, filled weight, bottom footprint, required quantity, intended sealing method, packing workflow, artwork status and any insert, window or finishing requirements. If you are comparing a Seal End Auto Bottom with a Tuck End Auto Bottom or standard Seal End carton, finalize the required closure and base relationship before approving the dieline and artwork so the production file reflects the actual packaging process. Place your order by calling +1 305 574 4357 or emailing sales@boxbaba.com.

Frequently Asked Questions

Find all the urgent questions you may have.

What is a Seal End Auto Bottom Box?

A Seal End Auto Bottom Box is a folding carton combining a seal-end closure at the loading end with a pre-glued automatic base that forms into position when the flat carton is opened and squared.

How does Seal End Auto Bottom differ from Tuck End Auto Bottom?

The bottom construction is the same pre-glued Auto Bottom, but the loading end uses a seal-end closure instead of a tuck-in flap.

Does a seal-end closure make the box tamper-evident?

Not automatically. While a seal-end closure creates a closed end, tamper evidence depends on the specific sealing system, adhesives, primary container and any required testing.

Can Seal End Auto Bottom Boxes include windows?

Yes. A compatible carton can incorporate a die-cut viewing window where product visibility, remaining panel area and structural design support it.

Can Seal End Auto Bottom Boxes include inserts?

Yes. Custom inserts can be integrated where the product requires improved positioning, alignment, separation or stability inside the carton.

Can Seal End Auto Bottom Boxes use Kraft paperboard?

Yes. Natural Kraft paperboard can be utilized where it suits the visual direction, though printing results should always be evaluated against the actual brown substrate.

Can these boxes be printed inside?

Inside printing can be planned where supported by the selected board, structure and production setup.

Are Seal End Auto Bottom Boxes suitable for ecommerce shipping?

Standard paperboard cartons are designed as retail or secondary product packaging rather than outer parcel shippers. An outer mailer or corrugated box is required for secure parcel distribution.

What dimensions are needed for a quote?

Provide the product maximum finished length, width/depth and height, plus its filled weight, bottom footprint, product orientation, sealing requirements and packing workflow.

What is the MOQ for Seal End Auto Bottom Boxes?

BoxBaba custom packaging orders can start from 100 units, subject to final specifications, materials and project requirements.

Seal End Auto Bottom

Seal End Auto Bottom Boxes – Custom Printed Packaging for Retail Products, Secure Closure & Fast Assembly

What We Give

Design

Print

Get it done

Specification

Packaging Materials & Paper Stocks We Use

White Cardboard (SBS, C1S, C2S)

Bux Board

Metallic & Foil Board

Kraft Paper

Textured Paper

Kraft Cardboard​

Corrugated Board (E-Flute)

EVA Foam

Mylar Bags (PE & PP)

Art Paper

Parchment Paper

Rigid Board

Printing Methods We Use

Digital Print

Offset Print

Scodix Digital Enhancement

UV Print

Printing Inks We Use

Fluorescent Color Inks

Oil Based Inks

Pantone

Pantone Metallic

Soy Vegetable Based Inks

Water Based Inks

Premium Finishes We Offer

Anti Scratch Lamination

Aqueous Coating

Spot UV

Gloss Laminitaion

Soft Touch Lamination

Matt Lamination

Packaging Add-Ons We Offer

Gold foiling

Holographic Foiling

Silver Foiling

Embossing

Debossing

Ribbon Handles

Rope Handles

Artwork Preparation Guidelines

Cut Line — Red Line

Perforation Line — Dotted Line

Bleed Line — Black Line

Safe Area — Blue Line

Crease / Fold Line — Red Line

Pasting Flap — Yellow Area

Product Specification

Related Products

Stock Type & Thickness

Cardboard

Kraft

Rigid

Corrugated

Finishing Assortment

Foil Stamping

Spot UV

Gloss

Holographic Foiling

Embossing

Debossing

Matte

Soft Touch Lamination

Custom Seal End Auto Bottom Boxes for Retail Product Packaging

What Is a Seal End Auto Bottom Box?

Seal End Auto Bottom vs Standard Seal End Boxes

Seal End Auto Bottom vs Tuck End Auto Bottom

Does Seal End Mean Tamper-Evident?

How the Auto Bottom Works

When Does Seal End Auto Bottom Make Sense?

How to Size a Seal End Auto Bottom Box

How Filled Weight and Bottom Footprint Affect the Base

Packing Workflow and Seal-End Closure

Kraft Cardboard
